Overview

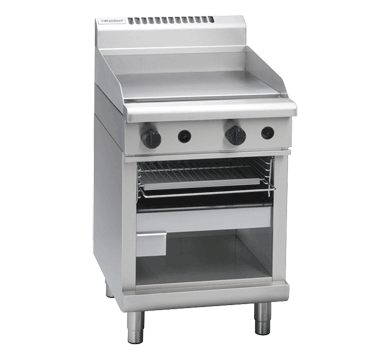

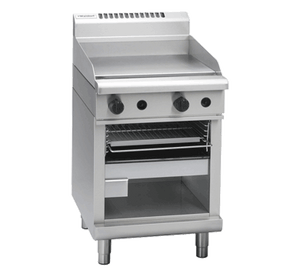

Waldorf GTL8600G 800 Series 600mm Gas Griddle Toaster Low Back Version

The Waldorf GTL8600G is a heavy-duty commercial gas griddle toaster from the renowned 800 Series, designed for high-volume kitchens demanding consistent performance across breakfast, burger and toasting applications. Built in New Zealand from 304 stainless steel, the unit combines a 600mm smooth griddle surface with an integrated toaster beneath, delivering two distinct cooking functions within a single compact footprint.

Powered by two 22 MJ/hr tubular burners fitted with grill radiants and managed by thermostatic temperature control across a 100–290°C range, this griddle toaster delivers even, reliable heat at a combined output of 53 MJ/hr (14.7 kW). The low back configuration suits counter or suite installations, and compatibility with both natural gas and LPG provides flexible placement across a wide range of commercial venues.

Key Benefits

• Integrated toaster positioned beneath the griddle plate means operators can grill and toast simultaneously without occupying additional bench space.
• Thermostatic temperature control between 100°C and 290°C allows precise heat management for delicate items like eggs through to searing burgers.
• Even heat distribution from tubular burners with grill radiants reduces hot spots, improving cook consistency and minimising food waste.
• A thick 16mm griddle plate retains heat effectively during busy service periods, maintaining surface temperature when cold product is loaded.
• The large-capacity grease collection drawer simplifies end-of-service cleaning and reduces downtime between meal periods.
• Stainless steel exterior construction is hygienic, durable and straightforward to wipe down, supporting fast turnaround in demanding environments.
• Compatibility with both natural gas and LPG via a standard R 1/2 BSP male connection gives flexibility for venues where reticulated gas is unavailable.
• Low back design integrates cleanly into Waldorf 800 Series suites or stands alone on a bench, providing versatile installation options.

Key Features

• 600mm smooth griddle cooking surface with integrated toaster positioned underneath
• 16mm thick griddle plate for superior heat retention and consistent surface temperature
• Two 22 MJ/hr tubular burners fitted with grill radiants for even heat distribution
• Combined burner output of 53 MJ/hr (14.7 kW)
• Thermostatic temperature control with a range of 100–290°C
• Large-capacity grease collection drawer for efficient fat management and easy cleaning
• Low back (splashback) configuration suitable for bench-top or suite installation
• 304 stainless steel construction throughout the exterior
• Compatible with natural gas and LPG; gas connection R 1/2 BSP male
• Part of the Waldorf 800 Series modular cooking suite
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 1/2 (BSP) male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 14.7 kW
• Temperature Control: Thermostatic
