Overview

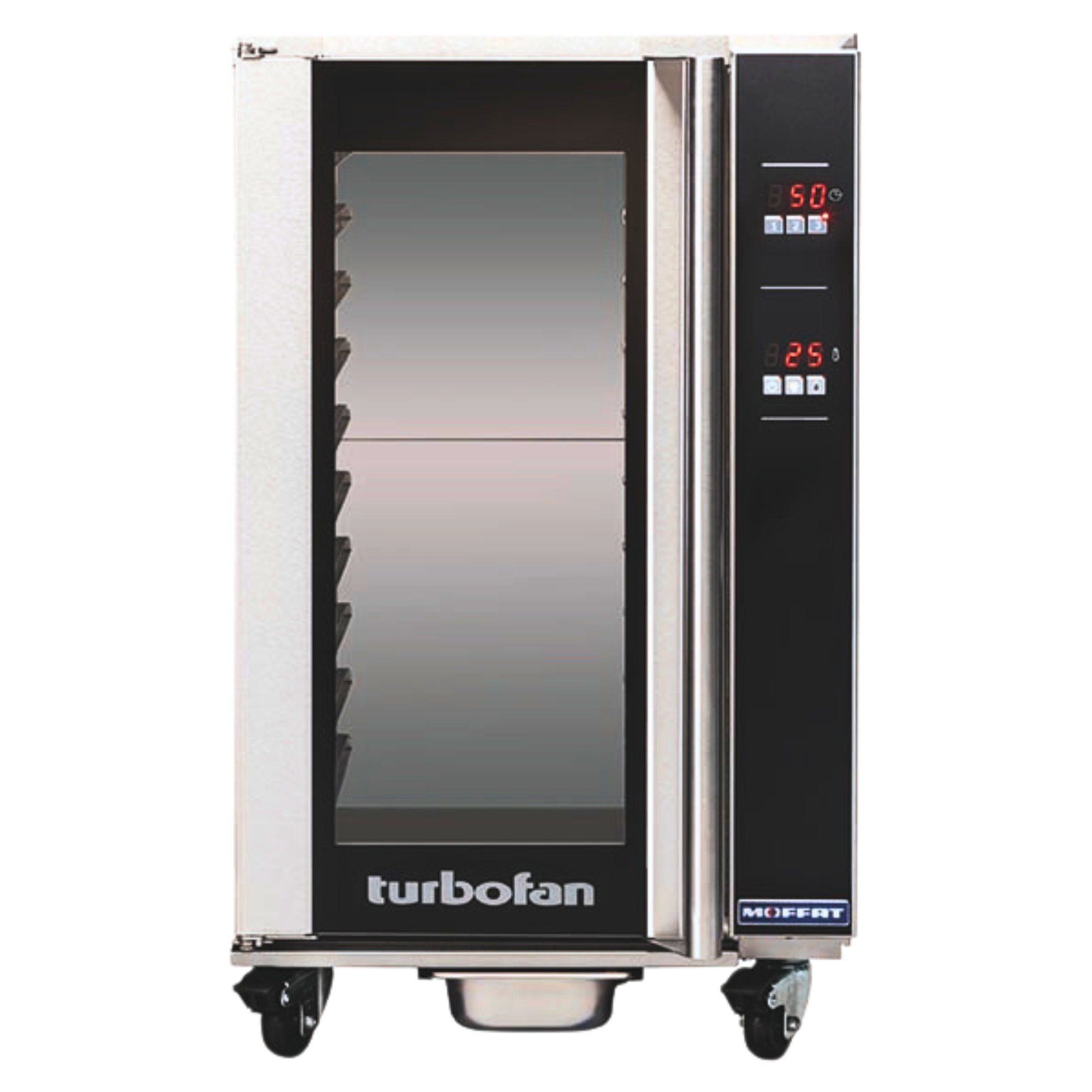

Turbofan H10D 10 Tray 1/1 GN Digital Electric Holding Cabinet

The Turbofan H10D is a compact yet high-capacity digital electric holding cabinet built for demanding commercial kitchen environments. Accommodating 10 x 1/1 GN pans at 74mm tray spacing within a 610mm-wide footprint, it is engineered to operate as a standalone unit or paired directly with Turbofan E33D Convection Ovens, making it a natural fit for cook-and-hold workflows in restaurants, hotels, catering operations, and institutional kitchens.

Constructed from 304 stainless steel with full double-skin insulation, the H10D delivers consistent, energy-efficient food holding through a 1200W heating system and a low-velocity circulation fan. Digital controls with large 20mm displays, three programmable hold timers, and a continuous door seal give operators precise command over food safety and quality from the moment service begins until the last plate leaves the pass.

Key Benefits

• Maintains cooked food at safe holding temperatures throughout service, reducing food safety risk and supporting cook-and-hold operations.
• Low-velocity circulation fan distributes heat gently and evenly, preserving food moisture, texture, and presentation quality.
• Three programmable hold timers allow operators to manage multiple food items or service periods simultaneously without guesswork.
• Compact 610mm width fits neatly into tight kitchen layouts and integrates directly above or below Turbofan E33D Convection Ovens as a system solution.
• Full double-skin construction combined with a continuous door seal retains heat efficiently, reducing energy consumption during extended holding periods.
• Dual halogen interior lamps and a double-glazed door provide clear visibility of cabinet contents without opening the door, maintaining temperature integrity.
• Plug-in 10A cordset means no hard-wiring is required, simplifying installation and allowing flexible placement across different kitchen configurations.
• 100% recyclable packaging and stainless steel construction support sustainable kitchen operations and easy end-of-life material recovery.
• Four 76mm castors, including two front castors with wheel and swivel locks, make repositioning straightforward while keeping the unit stable during service.

Key Features

• Capacity for 10 x 1/1 GN pans with 74mm (2 7/8") tray spacing
• Designed for standalone use or system installation with Turbofan E33D Convection Ovens
• Compact 610mm (24") width suits space-constrained kitchens
• 1200W cabinet heating element
• Full double-skin cabinet construction for superior insulation
• Electronic temperature control with digital display
• Large 20mm high easy-view digital displays for temperature and timer readings
• Three programmable hold timers
• Continuous door seal to maintain internal temperature and humidity
• Low-velocity circulation fan system for gentle, even heat distribution
• Dual halogen interior cabinet lamps for clear content visibility
• Cabinet drain to condensate pan for moisture management
• 220-240V plug-in 10A cordset fitted; no hard-wiring required
• Four 76mm diameter castors: two front castors with wheel and swivel lock, two rigid rear castors
• 304 stainless steel construction
• 100% recyclable packaging
• Manufactured in New Zealand

Specifications

• Width (mm): 610
• Depth (mm): 680
• Height (mm): 1015
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 95.3
• Packed Width (mm): 655.0
• Packed Height (mm): 830.0
• Packed Depth (mm): 1180.0
• Shipping Cubic: 0.641507000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Supply: Single Phase 230-240V 10A
• Voltage (V): 230
• Voltage/Phase: 220-240V, 50Hz, 1-phase, 1.3kW, 5.4A
