Overview

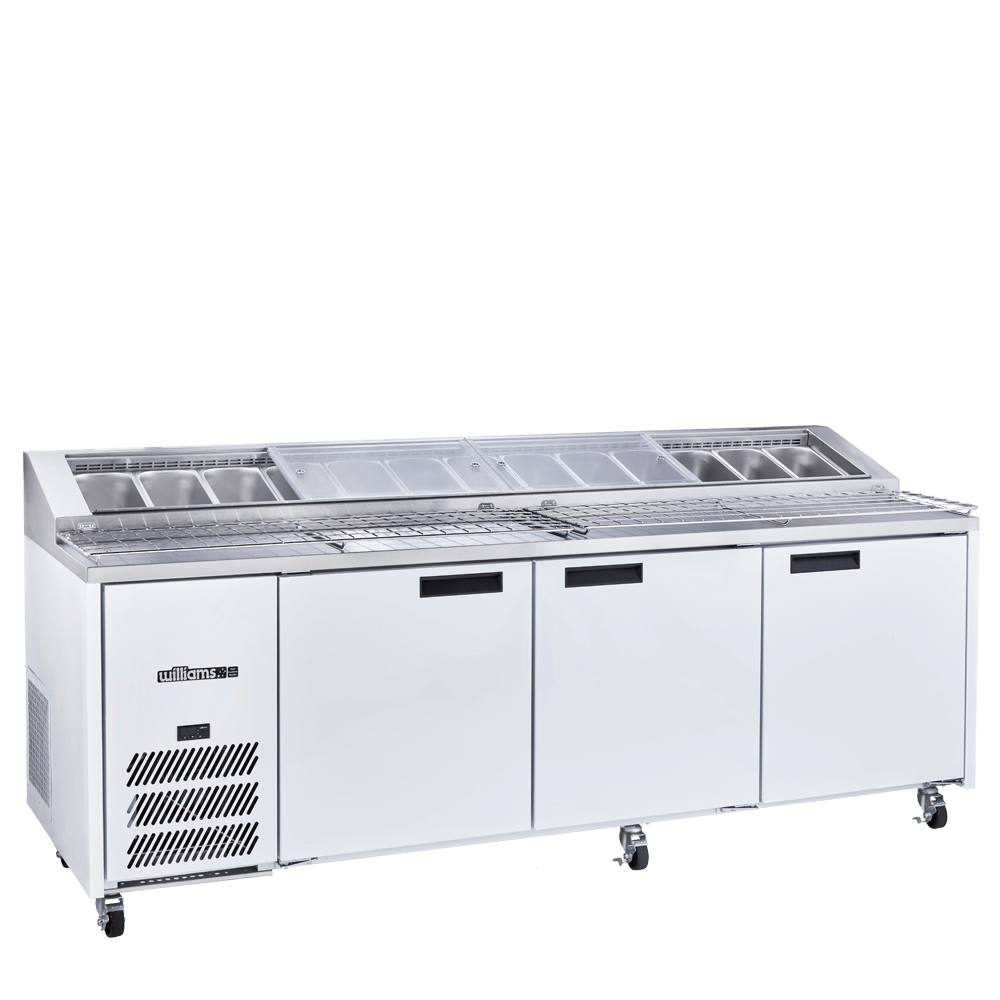

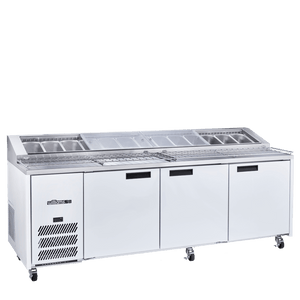

Williams HJ3PCBA Jade Pizza Prep Counter Fridge 3 Door

The Williams HJ3PCBA Jade Pizza Counter is a commercial refrigerated preparation unit designed for high-volume pizza and food prep environments. With a 1072-litre capacity across a three-door configuration, it maintains a consistent +1°C to +4°C temperature range using a fan-assisted forced-air refrigeration system contained within a removable cassette, making it easy to service without significant downtime. The unit is manufactured in Australia to Climate Class 4 (Tropical) standards, making it well suited to demanding kitchen environments.

The blown-air well keeps all ingredient pots refrigerated from above and below, directly addressing stricter health code requirements around topping temperature control. The ergonomically raised and angled well accepts 9 x 1/3 x 150mm deep Gastronorm pans included with the unit, while Perspex sliding lids help retain cold air when pots are not in use. A fully foamed counter top provides thermal insulation and minimises condensation on external surfaces, while heavy-duty swivel castors with brakes allow the unit to be repositioned and locked in place as needed.

Key Benefits

• Refrigerated blown air circulates over and under all ingredient pots, keeping toppings at safe temperatures throughout service and satisfying increasingly strict health regulations.
• Removable blown-air ducts and a removable refrigeration cassette simplify routine cleaning and servicing, reducing maintenance time.
• Raised, ergonomically angled blown-air well positions ingredients for comfortable, fast access during busy prep and service periods.
• Perspex sliding lids over the blown-air well reduce cold air loss between orders, improving energy efficiency and temperature consistency.
• CoolSmart electronic controller with digital LED display allows precise temperature adjustment and at-a-glance monitoring without opening the cabinet.
• Auto defrost using an energy-efficient waste-heat recovery vaporiser minimises manual intervention and keeps running costs low at just 1.69 kWh per 24 hours.
• Climate Class 4 (Tropical) rating ensures reliable performance in hot, humid commercial kitchen conditions.
• Heavy-duty swivel castors with brakes make repositioning straightforward while keeping the unit securely in place during operation.
• Three solid doors each include a plastic-coated shelf, providing 1072 litres of refrigerated storage beneath the prep surface for bulk ingredient stock.

Key Features

• Three-door configuration with one plastic-coated wire shelf per door
• 1072-litre total refrigerated capacity
• Temperature range: +1°C to +4°C
• Raised, ergonomically angled blown-air well accepting 9 x 1/3 x 150mm deep Gastronorm pans (included)
• Refrigerated blown air circulates over and under all ingredient pots
• Perspex sliding lids over the blown-air well to retain cold air
• Fully enclosed stainless steel well beneath food pots
• Wire crumb grid included
• Forced-air refrigeration system housed in a removable cassette for easy servicing
• Removable blown-air ducts for simplified cleaning
• Fully foamed counter top for thermal insulation and reduced external surface sweating
• CFC-free polyurethane insulation throughout
• CoolSmart adjustable electronic controller with digital LED temperature display
• Auto defrost with energy-efficient waste-heat recovery vaporiser
• R290 refrigerant; R134a also referenced (supplier spec R290 preferred)
• Energy consumption: 1.69 kWh per 24 hours
• Self-contained refrigeration, compressor located within the unit
• Climate Class 4 (Tropical) rated
• White Colorbond interior and exterior (excluding underside)
• 304 stainless steel internal floor

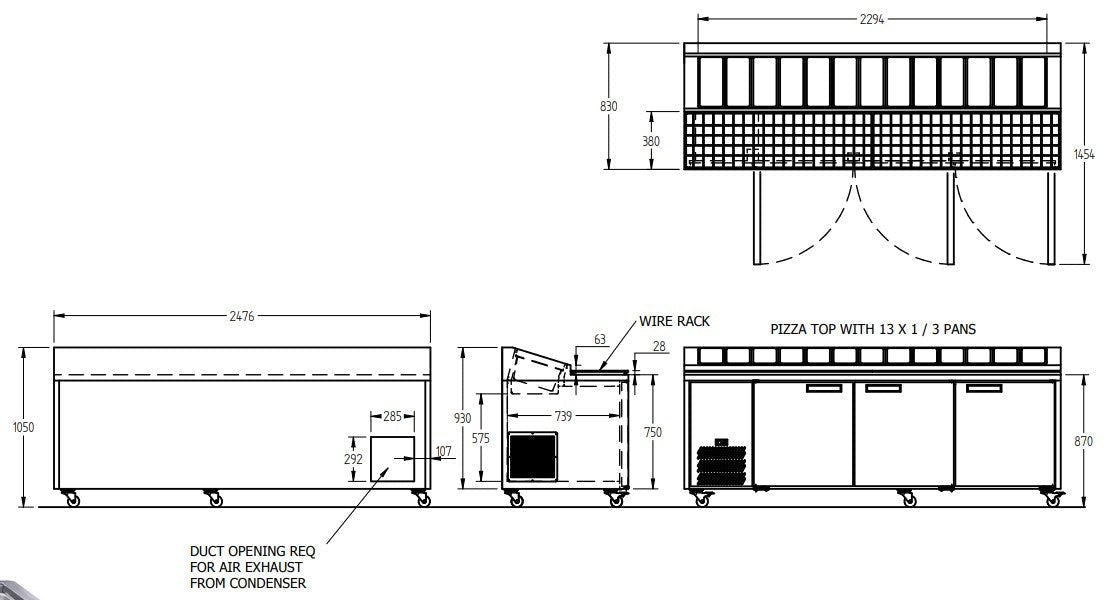

• Dimensions: 2476mm W x 830mm D x 1051mm H (bench height 870mm)
• Weight: 180 kg
• Heavy-duty swivel castors with brakes
• Requires rear/side ventilation clearance
• Power supply: 240V single phase, 10-amp plug (5.8 amps running current)
• Manufactured in Australia
• 24-month warranty (self-contained)

Specifications

• Width (mm): 2476
• Depth (mm): 830
• Height (mm): 870
• Weight (kg): 180
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 1070
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp plug / 5.8 amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Temperature Range: +1/+4°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Prep Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
