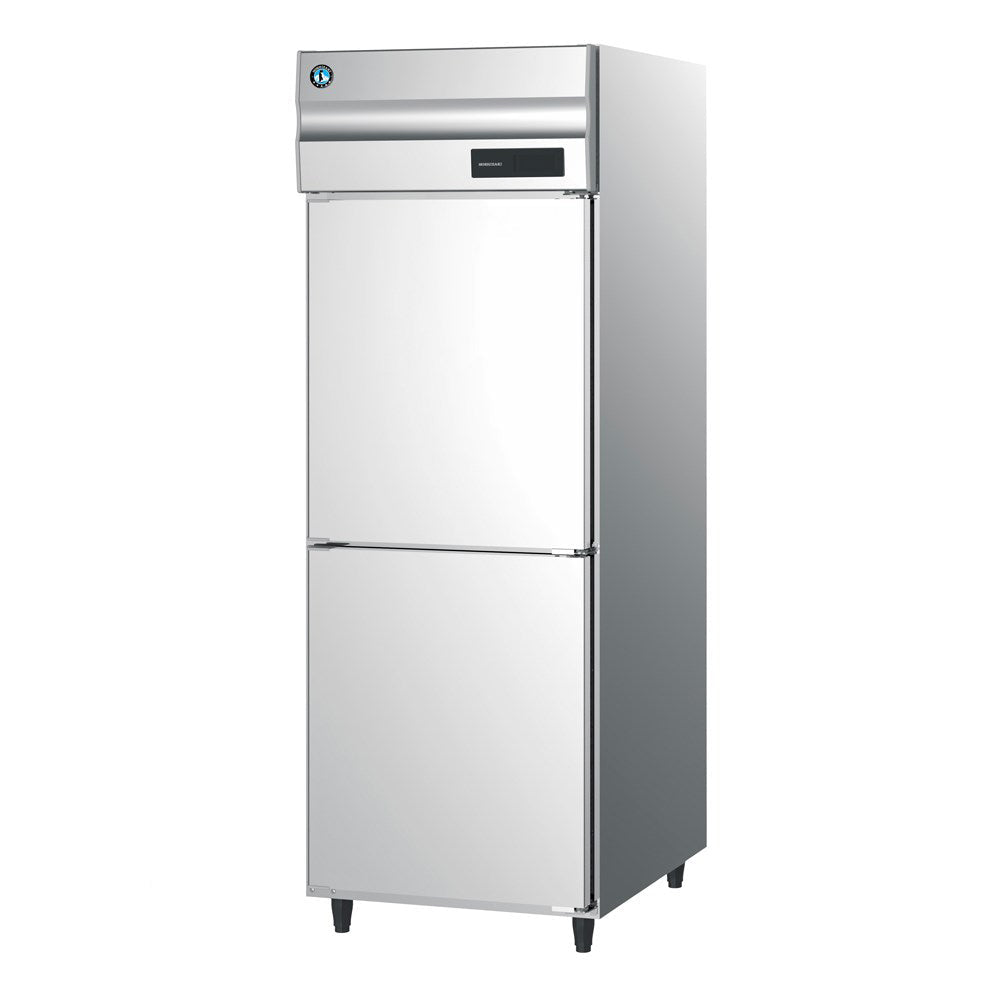

Hoshizaki HF-78MA-A 2 Door Upright Freezer 700mm

The Hoshizaki HF-78MA-A is a single-section commercial upright freezer featuring a split two-door (upper and lower half-door) design across a compact 700mm wide footprint. With a 569-litre capacity and a top-mounted compressor driven by a dependable HP motor, this unit delivers continuous forced-air cooling through a ducted air distribution system that maintains a consistent, even temperature throughout the cabinet. The stainless steel and galvanised steel construction ensures long-term durability and easy cleaning in demanding commercial kitchen environments.

Designed for high-frequency service operations, the split-door configuration minimises cold air loss each time the cabinet is accessed, supporting faster temperature recovery and improved energy efficiency. A programmable electronic controller with digital display allows precise microprocessor-driven temperature management, while the standard four lockable castors provide straightforward repositioning on the floor. Optional adjustable legs are available separately for installations requiring a fixed, levelled position.

Key Benefits

• Split half-door design reduces cold air escape during busy service, improving temperature recovery and energy efficiency.
• Ducted forced-air circulation distributes cold air evenly throughout the 569L cabinet, protecting food quality and temperature compliance.
• Top-mounted refrigeration system keeps the compressor clear of floor-level debris and heat, supporting reliable long-term performance.
• Programmable digital controller enables precise, microprocessor-adjustable temperature settings to suit varying frozen storage requirements.
• Compact 700mm wide footprint maximises frozen storage capacity relative to floor space in tight commercial kitchen layouts.
• Stainless steel and galvanised steel exterior withstands everyday commercial wear and tear while remaining straightforward to wipe down and sanitise.
• Four included lockable 115mm castors allow easy repositioning and locking in place during service.
• Four adjustable GN-compatible shelves offer flexible internal configuration to accommodate a range of frozen product sizes and volumes.

Key Features

• Split two-door (upper and lower half-door) design on a single-section upright cabinet
• 569-litre internal storage capacity
• 700mm wide x 800mm deep x 2015mm high external dimensions
• Top-mounted compressor driven by a dependable HP motor
• Ducted forced-air circulation system for consistent, even temperature distribution
• Programmable electronic controller and digital display for precise temperature management
• Microprocessor-adjustable temperature range: -23°C to -7°C (operating range approximately -18°C to -22°C)
• Ambient operating temperature range: 10°C to 43°C
• Stainless steel interior
• Stainless steel and galvanised steel exterior (galvanised steel on top, rear and bottom panels)
• ABS plastic door interiors
• 4 x adjustable GN-compatible shelves included
• Supplied standard with 4 x lockable 115mm castors (no legs fitted as standard)
• Optional adjustable legs 150-180mm available separately
• Refrigerant: R-404A
• Power supply: 240V / 50Hz / single phase
• Net weight: 104kg
• 2-year parts and labour warranty

Specifications

• Width (mm): 700
• Depth (mm): 800
• Height (mm): 2015
• Weight (kg): 330
• Shipping Weight: 126
• Packed Width (mm): 900.0
• Packed Height (mm): 2100.0
• Packed Depth (mm): 800.0
• Drawers: 1 DOOR - SPLIT DOOR
• No. of Doors: 1
• Door Type: Solid
• Refrigerant: R-404a
• Voltage (V): 240
