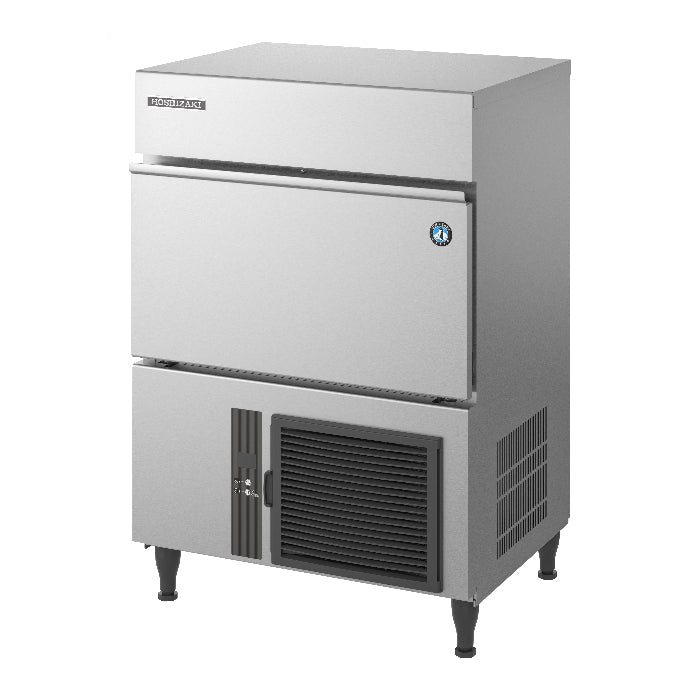

Hoshizaki IM-65NE-Q Self-Contained Ball Ice Machine 24kg/Day

The Hoshizaki IM-65NE-Q is a self-contained under-counter ball ice machine designed for bars, restaurants and premium beverage service. It produces up to 24kg of perfectly spherical 45mm ball ice per day under standard conditions, with a 17kg integrated storage bin, making it an ideal fit for venues where presentation and drink quality are paramount. Its compact footprint and front-breathing airflow allow built-in installation beneath a counter without requiring additional clearance.

Hoshizaki's closed-cell water circuit and automatic rinse-and-flush cycle after every batch ensure each ice ball is made from fresh, uncontaminated water, resulting in exceptionally hard, crystal-clear spheres that melt slowly and preserve the flavour integrity of premium cocktails and spirits. A microcomputer controller continuously optimises the ice-making process to maintain consistent output across varying ambient conditions, while foam-injected CFC-free polyurethane insulation reduces unnecessary production cycles and energy use.

Key Benefits

• Produces slow-melting, crystal-clear 45mm ball ice that protects the flavour and quality of premium cocktails and beverages
• Automatic drain and refill after every batch keeps ice hygienically fresh without manual intervention
• Front panel air intake and exhaust enables flush built-in under-counter installation in bar fitouts
• Microcomputer control adapts the ice-making cycle to changing ambient temperatures, maintaining reliable output without manual adjustments
• Closed water circuit eliminates contamination risk, supporting strict food-safety and hygiene standards
• Easily dismantled components and an accessible front condenser air filter simplify routine cleaning and reduce the frequency and cost of service call-outs
• CFC-free foam-injected polyurethane insulation preserves stored ice quality and reduces the number of production cycles needed
• Built-in safety protections including a freeze-cycle backup timer, defrost backup, low-voltage and high-amp protector reduce the risk of unplanned downtime
• Three-year parts and labour warranty on the entire unit plus five-year parts-only cover on the compressor and air-cooled condenser coil provides long-term ownership confidence

Key Features

• Ice type: 45mm diameter solid round ball ice
• Production capacity: up to 24kg per 24 hours at 21°C air / 15°C water; up to 20kg per 24 hours at 32°C air / 21°C water
• Integrated storage bin capacity: 17kg
• Self-contained, under-counter unit with adjustable legs 90-125mm
• Dimensions: 633mm (W) x 506mm (D) x 950mm (H) including legs
• Air-cooled condensing unit with front-panel airflow (intake and exhaust) for built-in installation
• Refrigerant: R134a, 200g charge
• Power: 10A; energy consumption: 2.9kWh per 24 hours
• Each ice ball individually formed by a jet-spray water system
• Closed-cell water circuit for ultimate contamination protection
• Automatic rinse-and-flush cycle after each batch for continuously fresh, hygienic ice
• New intelligent control circuit dedicated to reducing power and water consumption
• 7-segment operational display panel for straightforward monitoring and diagnostics
• Inbuilt safety features: freeze-cycle backup timer, defrost backup, low-voltage and high-amp protector
• Stainless steel exterior for a hygienic, durable finish
• Foam-injected CFC-free polyurethane insulation to maintain ice quality and reduce production cycles
• Easily cleanable front-access condenser air filter to support routine maintenance schedules
• Gravity drain only
• Microcomputer controlled for consistent performance across varying ambient conditions
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on compressor and air-cooled condenser coil

Specifications

• Width (mm): 633
• Depth (mm): 950
• Height (mm): 506
• Weight (kg): 350
• Packed Depth (mm): 570
• Packed Height (mm): 735
• Packed Width (mm): 1012
• Shipping Weight: 62
• Shipping Cubic: 0.378000000m3
• Ice Type: Gourmet Ball
• Ice Size: BALL
• Ice Storage: 17
• Ice Production: 24
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 2.9 Amps
• Country of Origin: AU
