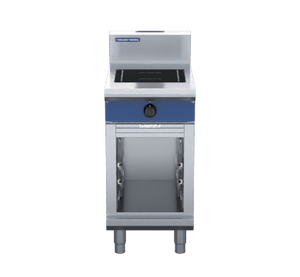

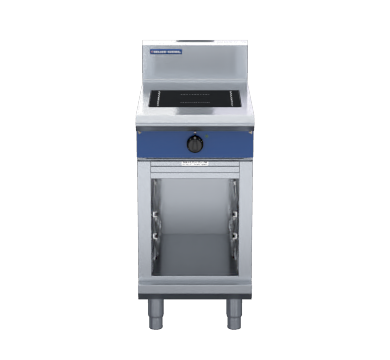

Blue Seal IN511F-CB Evolution Series 450mm Single Zone Induction Cooktop – Cabinet Base

The Blue Seal IN511F-CB is a 450mm freestanding electric induction cooktop from the Evolution Series, purpose-built for demanding commercial kitchen environments. It features a single 5kW full-area square induction zone measuring 270mm in diameter, set beneath a 6mm thick ceramic glass cooking surface, and is mounted on a sturdy cabinet base with a hinged single door for convenient undercounter storage access.

Manufactured in New Zealand from 304 stainless steel, this unit combines heavy-duty construction with smart operational features including automatic pan detection, infinitely variable power control, and a 165mm splashback. Forced-air fan cooling, a 3-phase power supply, and digital induction controls make it a reliable, energy-efficient choice for chefs who demand precise, consistent heat output.

Key Benefits

• Induction technology delivers near-instant heat directly to the cookware, reducing warm-up times and improving service speed during peak periods.
• Automatic pan detection cuts power to the induction zone the moment a pan is removed, improving safety and reducing unnecessary energy consumption.
• Infinitely variable power control gives chefs precise, repeatable heat settings across the full power range, supporting consistent cooking results.
• The ceramic glass surface stays cooler than conventional cooktops, creating a safer working environment and making spill clean-up quick and straightforward.
• Induction heating transfers energy directly into the pan rather than heating the surrounding air, keeping the kitchen cooler and reducing ventilation load.
• The integrated cabinet base with hinged door provides accessible on-station storage, keeping essential equipment and supplies close at hand.
• Stainless steel legs with two adjustable front feet and two rear rollers allow easy levelling on uneven floors and straightforward repositioning for cleaning or service.
• Heating-on and pan detection or error indicator lights give operators clear at-a-glance feedback on zone status, reducing guesswork during busy service.
• Heavy-duty 304 stainless steel construction and a design focused on easy cleaning, installation, and servicing supports a lower total cost of ownership over time.

Key Features

• Single 5kW full-area square induction cooking zone, 270mm in diameter
• 6mm thick ceramic glass cooking surface across a 450 x 480mm cooking area
• Automatic pan detection that switches the induction zone off when cookware is removed
• Large, easy-to-use control knob with infinitely variable power adjustment for the induction zone
• Heating-on and pan detection or error indicator lights for clear operational feedback
• Forced-air fan cooling to protect internal components during continuous service
• Digital induction control with variable power control
• Cabinet base with a single hinged door providing undercounter storage
• 165mm stainless steel splashback
• 1.2mm stainless steel splashback construction
• Stainless steel legs with two adjustable feet at the front and two rollers at the rear for levelling and mobility
• Freestanding installation type suitable for open kitchen layouts
• 304 stainless steel body construction for durability and hygiene
• 3-phase power supply: 400–415V, 3P+E, 5.0kW, 50/60Hz
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): 450 x 480
• Number of Burners: 1
• Power Rating: 3P+E 7A / phase|400-415V|5.0kW|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+E
