Overview

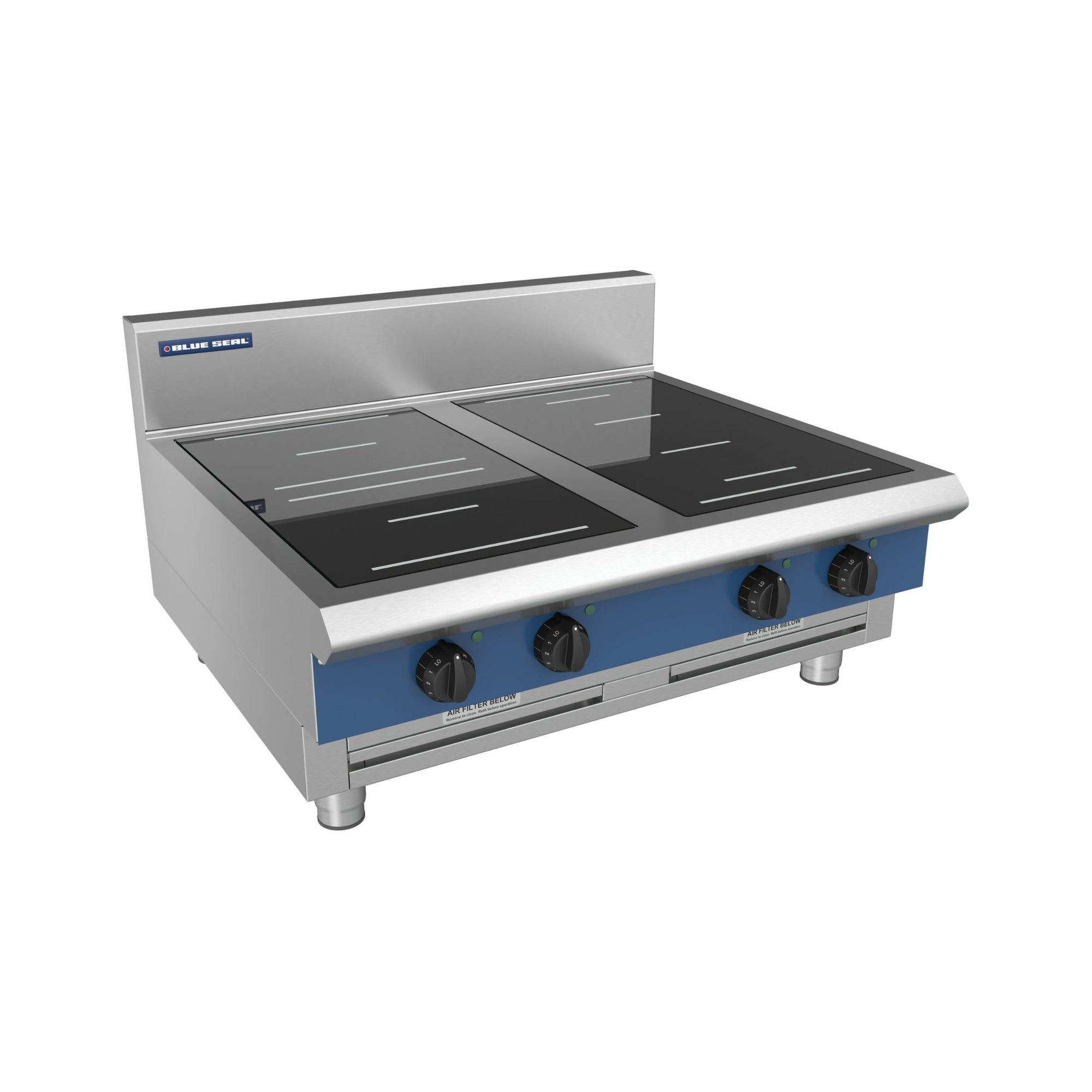

Blue Seal IN514R5F-B Evolution Series 900mm Induction Cooktop – Bench Model

The Blue Seal IN514R5F-B is a 900mm bench-mounted commercial induction cooktop from the Evolution Series, delivering a total of 20kW across four independent induction zones. The unit combines two 5kW round zones (270mm diameter) on the left-hand side – ideal for stockpots and saucepans – with two 5kW full-area square zones (260mm) on the right-hand side, giving chefs the flexibility to accommodate a wide variety of cookware sizes and shapes across a single appliance.

Constructed from heavy-duty stainless steel with a 6mm thick ceramic glass cooking surface, the IN514R5F-B is purpose-built for the demands of busy restaurants, hotels, cafés, and hospitality venues. Induction technology transfers heat directly into compatible cookware rather than heating the surrounding air, resulting in faster heat-up times, reduced ambient kitchen temperatures, and lower energy consumption compared to traditional gas or radiant electric cooktops. An alternative configuration with full-area induction on the left and round induction on the right is available to order.

Key Benefits

• Rapid, direct heat transfer into cookware significantly reduces heat-up and recovery times during peak service periods.
• Cooler ambient kitchen environment improves comfort and safety for kitchen staff compared to gas or conventional electric cooking.
• Automatic pan detection switches each zone off immediately when cookware is removed, reducing energy waste and minimising burn risk.
• Infinitely variable power control on every zone gives chefs precise, repeatable results across a broad range of cooking techniques.
• The combination of round and full-area induction zones on one unit accommodates different cookware sizes and configurations without switching between appliances.
• A 6mm thick ceramic glass surface is highly durable under commercial use and wipes clean quickly between service periods.
• Forced-air fan cooling protects internal components during sustained high-output operation, supporting long-term reliability.
• Heating-on, pan detection, and error indicator lights provide at-a-glance status monitoring for each zone.
• Easy-service access and straightforward installation minimise downtime and reduce ongoing maintenance costs.

Key Features

• Four-zone electric induction cooktop in a freestanding bench-mount configuration
• 2 x 5kW round induction zones (270mm diameter) positioned on the left-hand side
• 2 x 5kW full-area square induction zones (260mm) positioned on the right-hand side
• Total induction output of 20kW (3P+E, 28A per phase, 400–415V, 50/60Hz)
• 6mm thick ceramic glass cooking surface
• Automatic pan detection – each zone switches off when compatible cookware is removed
• Large, easy-to-use control knob per zone with infinitely variable power settings
• Heating-on, pan detection, and error indicator lights for each zone
• Forced-air (fan) cooling system to protect internal components
• 165mm stainless steel splashback included
• 1.2mm stainless steel splashback construction
• Heavy-duty 304 stainless steel construction throughout
• Digital induction control with variable power control per zone
• Freestanding installation type
• Manufactured in New Zealand
• Alternative configuration available to order: full-area induction on the left-hand side and round induction on the right-hand side

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 525
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 20kW|3P+E 28A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
