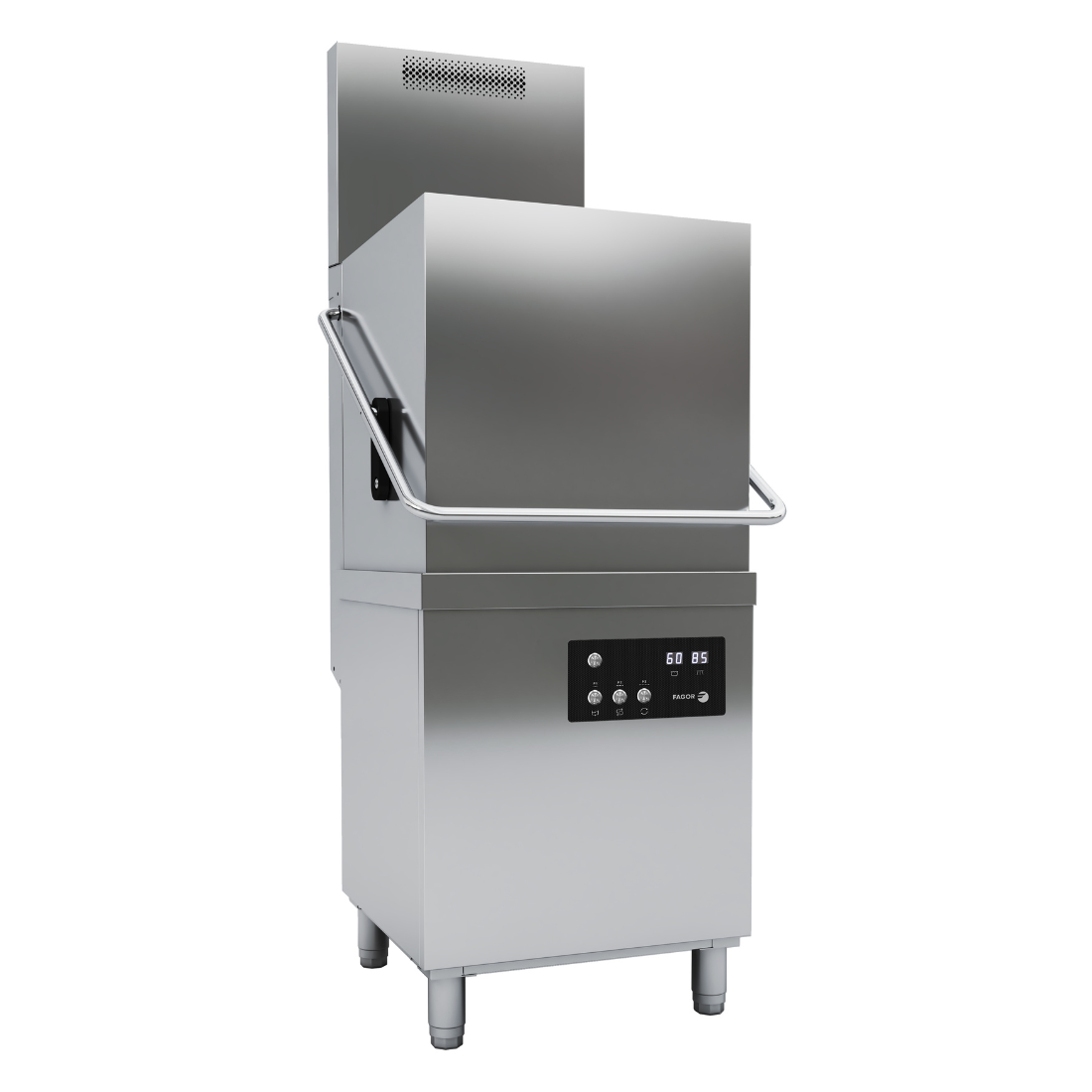

Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD
Width
630.0 mm
Depth
750.0 mm
Height
1975.0 mm
Weight
138.0 kg
RRP $14,490.00
SAVE 15%
$12,316.50
$13,548.15 inc GST
Couldn't load pickup availability
Rent from $156.32 + GST/week
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product?
Talk to the specialists
(02) 8677 0751
Overview
iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD
Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser
Key Features
- Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
- Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
- Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
- No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
- Hourly production: 40 baskets/ hour
- Clearance (max ware height): 450mm
- Electronic control
- Wash cycles: 90-120-180-480
- Double rotating wash and rinse systems, made of AISI-304 stainless steel
- Wash pump, 750W each
- Drain pump: 100W drainage cycle
- Tank with 3 kW heating power
- Tank capacity: 33 litres
- Water consumption: 2.2 litres/cycle
- Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
- Two-digit LED displays
- Hydraulic rinse aid dispenser
- Dual-flow wash pump with soft-start
- Double-stage filtration system
- Dual-flow wash pumps
- A magnetic micro switch to stop the cycle in case of accidental opening of hood
- Adjustable legs
- Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
- Watermark approved
- Can be converted to single phase
- Precision of working temperatures
- Temperature control by electronic probes
- Configurable control
- i-ERROR DIAGNOSIS: Error identification on screen
- Basket: 500x500
- Drain pump
2 Years Parts and Labour Warranty
Key features
iNova Heated Recovery Pass-Through DishwasheriNova Heated Recovery Pass-Through Dishwasher
Specifications
Dimensions
Width
630.0 mm
Depth
750.0 mm
Height
1975.0 mm
Net weight
138.0 kg
Compliance & Certifications
Manufacturer warranty
2 Years Parts and Labour Warranty
