Overview

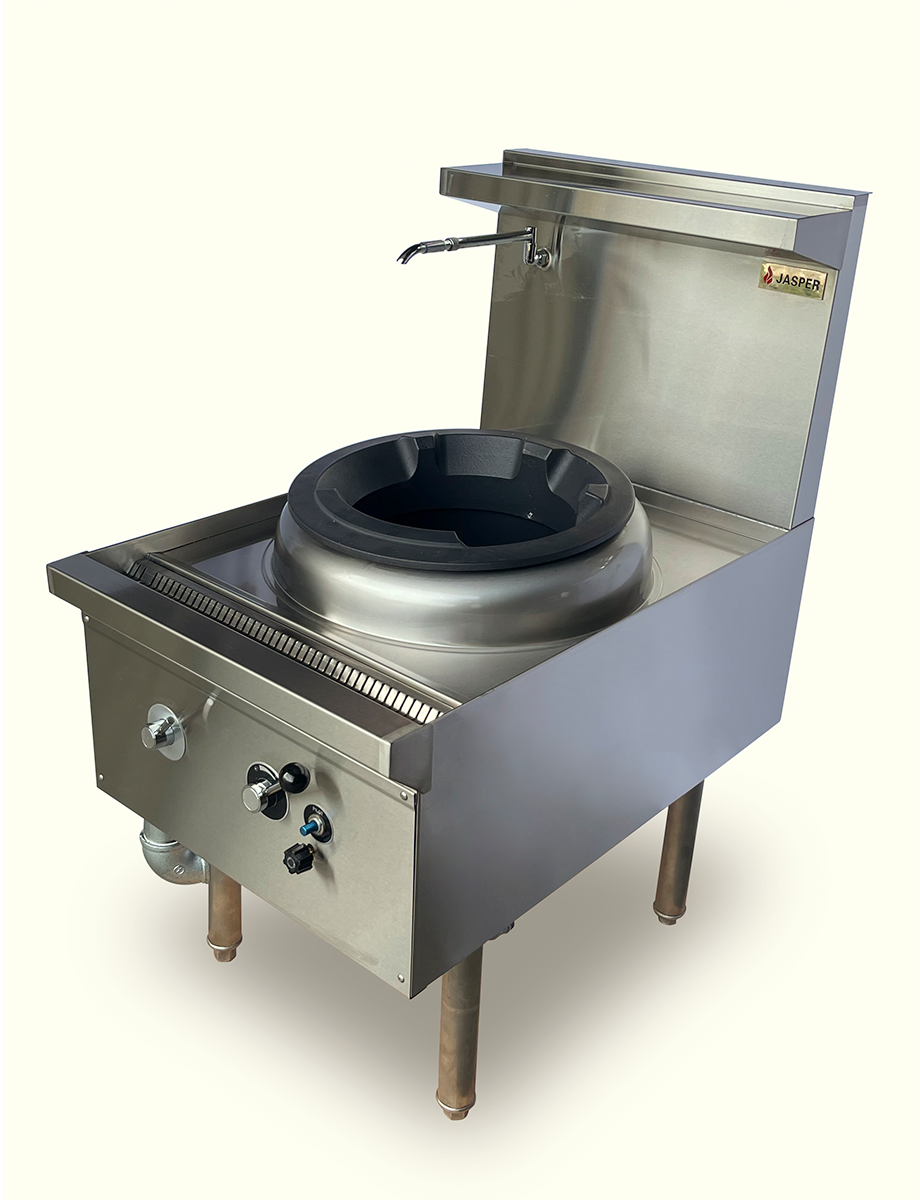

Jasper JA-1CB-N Single Wok Range Chimney Burner Natural Gas

The Jasper JA-1CB-N is a single wok range featuring a chimney burner configuration, purpose-built for high-volume commercial kitchens specialising in Cantonese and Southeast Asian cuisine. With a 14-inch wok hole and a natural gas output of 100 MJ/hr, it delivers the intense, responsive heat required for authentic stir-frying and wok cooking at a professional level.

Constructed with a heavy-duty stainless steel frame, the JA-1CB-N incorporates a waterless wok design, flame failure protection with pilot, and a high splashback with integrated shelf, making it a practical and safe choice for busy restaurant and cafe environments. It is also available in an LPG configuration for kitchens without a natural gas connection, and carries Gas Mark approval.

Key Benefits

• High-output chimney burner delivering 100 MJ/hr on natural gas for rapid wok cooking and consistent high heat during busy service periods.
• Waterless wok design eliminates the need for a water cooling system, simplifying setup and reducing ongoing maintenance demands.
• Flame failure protection with pilot ensures controlled gas operation, improving safety for kitchen staff during continuous use.
• Large 14-inch wok hole accommodates commercial-sized woks suited to Cantonese and Southeast Asian cooking applications.
• High splashback helps contain oil and food splatter, keeping the surrounding work area cleaner during intense cooking.
• Integrated shelf on the splashback keeps essential tools and condiments within easy reach without cluttering the cooking station.
• Available in both natural gas and LPG configurations, providing flexibility to suit different kitchen gas supply setups.
• Heavy-duty stainless steel frame is built to withstand the rigours of daily commercial kitchen use and is straightforward to clean.
• Gas Mark approved, confirming the unit meets the compliance requirements expected in professional Australian commercial kitchens.

Key Features

• Chimney burner configuration designed for commercial wok cooking
• 14-inch wok hole suitable for large commercial woks
• Natural gas consumption: 100 MJ/hr
• LPG gas consumption: 90 MJ/hr
• Waterless wok design; no water cooling system required
• Flame failure protection with pilot for safe gas operation
• Heavy-duty stainless steel frame construction
• High splashback to contain cooking splatter
• Integrated shelf on splashback for accessible storage during service
• Available in natural gas (NG) or LPG configurations
• Also available with duck bill burner configuration (separate model)
• Gas Mark approved
• Suited to restaurants and cafes
• Dimensions: W600 x D900 x H1180 mm
• Unit weight: 79 kg

Specifications

• Width (mm): 600
• Depth (mm): 900
• Height (mm): 1180
• Weight (kg): 79
• Gas Type: Natural gas or LPG
• Packed Width (mm): 680
• Packed Depth (mm): 980
• Packed Height (mm): 1300
• Shipping Weight: 109
