Overview

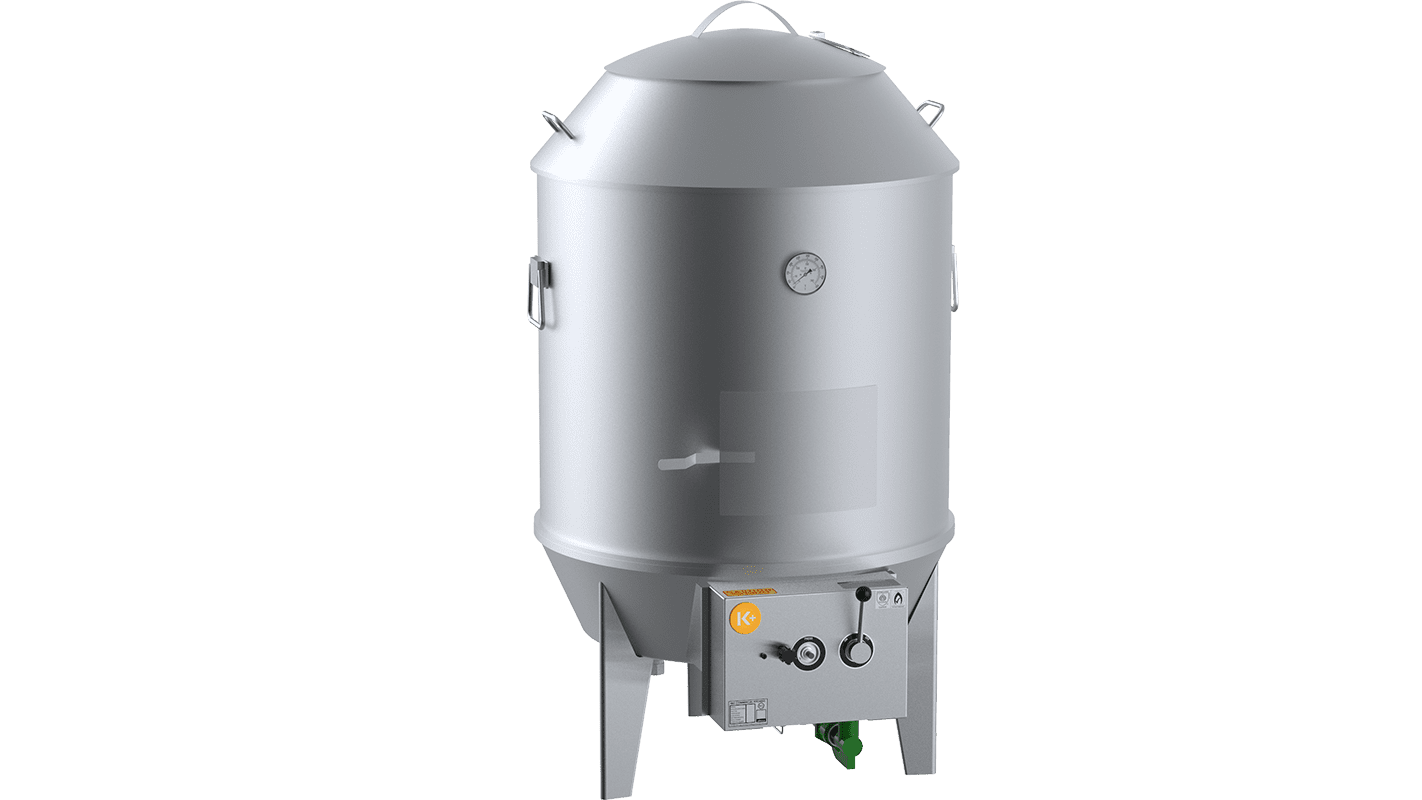

B&S K+ Duck Oven DR-800

The B&S K+ Duck Oven DR-800 is a purpose-built commercial gas oven designed to roast duck, pork and other meats to consistent, high-quality results in busy restaurant and hospitality kitchens. Made in Italy from AISI 304 stainless steel with a vitreous enamel interior, the 800mm wide unit is supplied freestanding on an integrated stand and connects to natural gas or LPG via a 3/4" BSP fitting, delivering up to 73 MJ/h to suit high-volume Asian roast production.

A powerful ring burner sits beneath a grate of volcanic rocks, which radiate heat evenly throughout the oven chamber for an even roast every time. The double-skin construction improves cooking efficiency and heat retention, while practical inclusions such as a duck hanging rail with excess fat drain-off, oil drain and overflow valves, lever action gas control, piezo ignition, German-made thermostat, external temperature display, and standard-fit flame failure and overheat safety devices make this oven a reliable, low-maintenance workhorse for any professional kitchen.

Key Benefits

• Volcanic rocks mounted on a grate above the ring burner radiate heat evenly throughout the chamber, producing a more consistent roast across duck, pork and other meats.
• Double-skin construction retains heat more effectively, improving cooking efficiency and reducing gas consumption during long roasting sessions.
• Duck hanging rail allows excess fat to drain off naturally, keeping the oven cleaner and simplifying the roasting process for high-volume service.
• Lever action gas control provides precise, easy regulation of flame settings to suit different meat types and portion sizes.
• Flame failure device and overheat safety device are fitted as standard, protecting staff and equipment during unattended or extended cooking cycles.
• Runs on natural gas or LPG, giving operators flexibility to match the oven to existing site infrastructure without modification.
• External temperature display and German-made thermostat allow accurate monitoring and adjustment of oven temperature without opening the unit.
• AISI 304 stainless steel construction throughout is hygienic, corrosion-resistant and easy to clean, withstanding the rigours of daily commercial use.
• Accessible internal components and lift-off lid top access simplify routine servicing and maintenance, reducing downtime.

Key Features

• AISI 304 grade stainless steel construction throughout with vitreous enamel interior
• Double-skin design for improved heat retention and cooking efficiency
• Powerful ring burner rated at up to 73 MJ/h on natural gas / 60 MJ/h on LPG
• Volcanic rocks mounted on a grate above the burner to distribute heat evenly throughout the oven chamber
• Easily accessible internal duck hanging rail for even roasting and excess fat drain-off
• Oil drain and overflow valves for straightforward cleaning and fat management
• Lever action gas control for precise flame regulation
• Piezo ignition for quick, reliable lighting
• German-made thermostat for accurate temperature control
• External temperature display for at-a-glance monitoring
• Flame failure device fitted as standard
• Overheat safety device fitted as standard
• Easy top access via lift-off lid
• Drop-down door with spring hinge
• 1 shelf included
• 3/4" BSP gas connection
• Compatible with natural gas and LPG
• Regulator included with the unit
• Freestanding unit supplied on integrated stand
• 800mm wide footprint suited to commercial kitchen layouts
• Made in Italy
• 18-month warranty (parts and labour)
• Must be installed by an authorised installer

Specifications

• Width (mm): 800
• Depth (mm): 800
• Height (mm): 1550
• Weight (kg): 140
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 73
• Gas Input - LPG (MJ/h): 60
• Burner Output (MJ/h): 83
• Shipping Weight: 120
• Packed Width (mm): 850.0
• Packed Height (mm): 1600.0
• Packed Depth (mm): 850.0
• Shipping Cubic: 0.010192000m3
• Material: 304 Stainless Steel / Vitreous Enamel
• Door Type: Drop-down with Spring Hinge
• No. of Shelves: 1
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 1
• Fuel Type: Gas
• Temperature Control: German-made Thermostat
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 105 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: 200°C - 300°C
