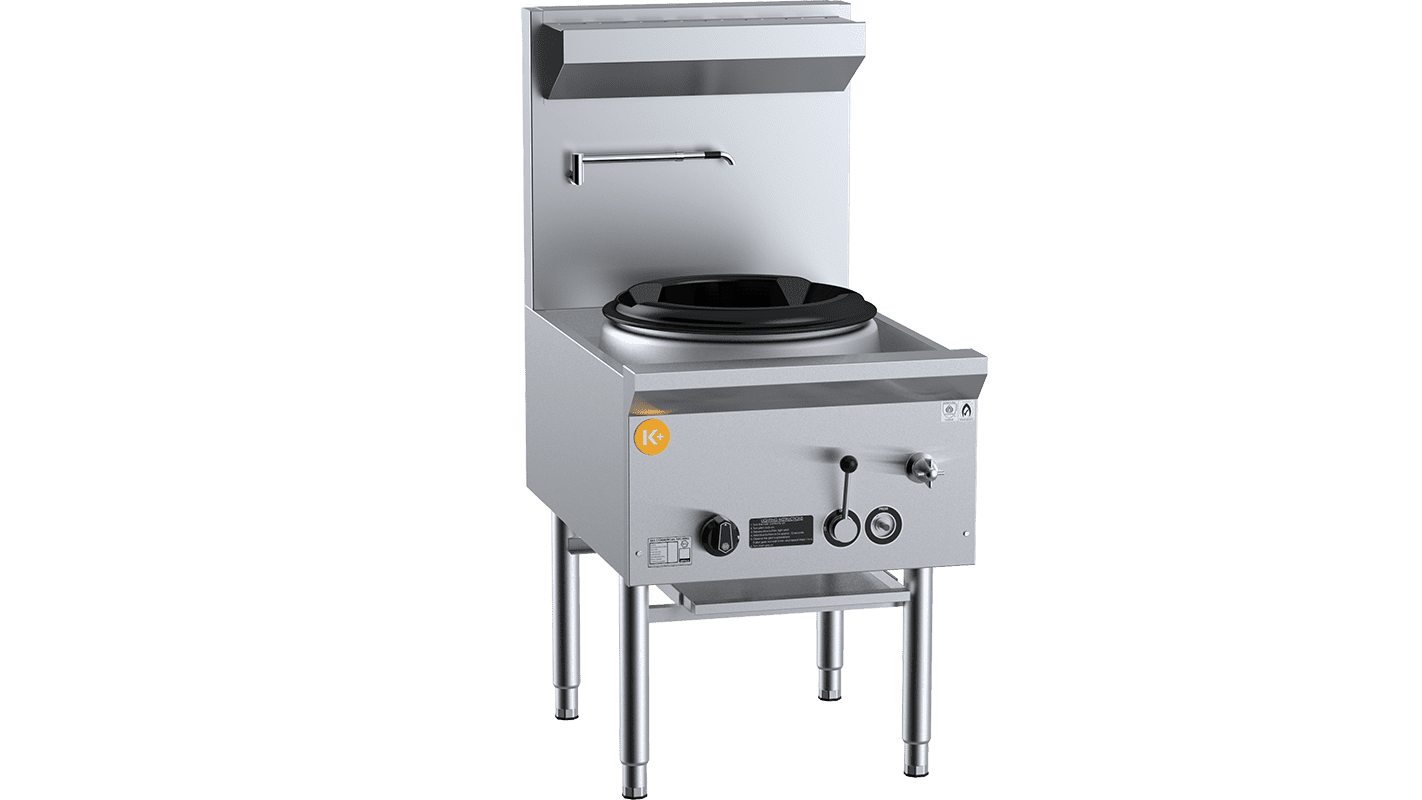

B&S K+ Single Hole Deluxe Waterless Wok Table UFWWK-1

The B&S K+ Single Hole Deluxe Waterless Wok Table UFWWK-1 is a commercial gas wok table engineered for high-output Asian cooking in professional kitchens. Built on a solid mild steel frame with AISI 304 stainless steel external panels and a 1.5mm pressed top deck, it delivers the structural rigidity and hygienic surface finish demanded by busy restaurants, cafes, hotels and catering operations. Measuring 600mm wide, the unit is freestanding on an integrated stand and is available with either a 24-jet chimney burner or an 18-jet duck bill burner, both rated for natural gas or LPG.

The waterless design eliminates the need for water deck cooling, reducing water consumption and lowering sewerage usage and waste discharge costs compared with traditional wok tables. A heavily insulated long-skirt unflued cast iron ring (340mm diameter) minimises radiant heat to the surrounding structure, while a front waste gutter and spillage tray make post-service cleaning straightforward. Flame failure devices are fitted as standard on both burner options, and lever-action gas controls allow precise flame regulation during peak service periods. The unit carries an 18-month parts and labour warranty.

Key Benefits

• Waterless deck cooling eliminates the need for a continuous water supply to the deck, cutting water consumption and reducing sewerage and waste discharge costs.
• Choice of 24-jet chimney burner (105 MJ/h NG / 75 MJ/h LPG) or 18-jet duck bill burner (110 MJ/h NG / 90 MJ/h LPG) lets operators match the burner style to their wok cooking technique.
• Flame failure devices on both burner options provide automatic gas shutoff if the flame is extinguished, supporting kitchen safety and compliance.
• Heavy-duty stainless steel lever-action gas controls give cooks precise, reliable flame adjustment during high-pressure service periods.
• Heavily insulated long-skirt unflued cast iron ring reduces radiant heat transfer to surrounding surfaces, keeping the work environment more comfortable.
• Front waste gutter and spillage tray channel liquid waste away from the work area, speeding up cleaning between services.
• 1.5mm pressed top deck allows easy cleaning around the burner ring area, helping maintain hygiene standards in a busy commercial kitchen.
• Piezo ignition provides quick, reliable burner lighting without the need for a separate pilot flame or external ignition source.
• 18-month parts and labour warranty offers solid after-sales protection for a piece of high-use commercial cooking equipment.

Key Features

• Single wok burner station in a compact 600mm wide freestanding configuration
• Choice of burner type: 24-jet chimney burner or 18-jet duck bill burner
• Chimney burner output: 105 MJ/h natural gas / 75 MJ/h LPG
• Duck bill burner output: 110 MJ/h natural gas / 90 MJ/h LPG
• Flame failure device fitted as standard on both burner options
• Piezo ignition system
• Multi-setting lever-action gas valve for precise flame control
• Waterless deck design; no water required for deck cooling
• Long-skirt unflued cast iron ring (340mm diameter), heavily insulated to eliminate radiant heat
• Manual-operated laundry arm; combination of waterless deck and timed water flow to laundry arm reduces overall water use
• AISI 304 stainless steel external panels, strong, durable and easy to sanitise
• Solid mild steel frame with thick mild steel plate for long-lasting structural integrity
• 1.5mm pressed stainless steel top deck for ease of cleaning around the ring area
• Vitreous enamel components where specified
• Front waste gutter and spillage tray for efficient liquid waste management
• Rear condiment shelf included
• Integrated stand; freestanding installation
• Gas connection: 3/4" BSP
• Compatible with natural gas and LPG
• Dimensions: 600mm W x 840mm D x 1300mm H
• Unit weight: 60 kg
• 18-month parts and labour warranty
• Must be installed by an authorised gas installer

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 1300
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Chimney Burners - NG (MJ/h): 105
• Chimney Burners - LPG (MJ/h): 75
• Duck Burners - NG (MJ/h): 110
• Duck Burners - LPG (MJ/h): 90
• Burner Output (MJ/h): 105
• Shipping Weight: 73
• Packed Width (mm): 950.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 650.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 1
• Fuel Type: Gas
• Temperature Control: Multi-setting Gas Valve
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 105 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
