Overview

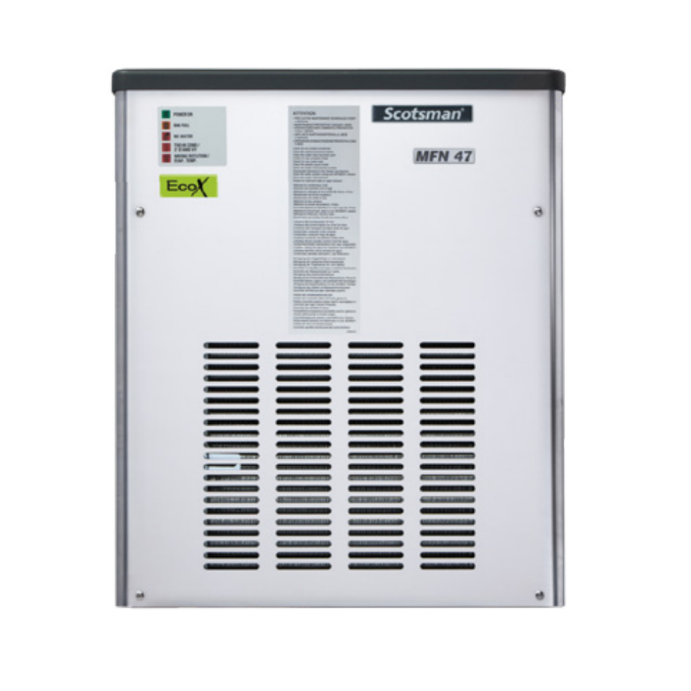

Scotsman MFN S 47 AS OX 270kg XSafe Modular Ice Nugget & Cubelet Ice Maker

The Scotsman MFN S 47 AS OX is a high-output modular ice maker producing up to 270 kg of nugget and cubelet ice every 24 hours, making it well suited to demanding commercial environments including hospitality venues, healthcare facilities, convenience stores and quick-service restaurants. The soft, bite-friendly texture and slow melt rate of nugget and cubelet ice types make them a preferred choice for blended drinks, fountain beverages and food display applications, while the compact 538 mm wide footprint allows flexible installation across a variety of service areas.

Built with a stainless steel auger and freezing cylinder, the MFN S 47 AS OX is engineered for durability, consistent ice quality and straightforward sanitation. Scotsman's XSafe Natural Sanitation System works continuously to inhibit microbial growth and odour development, while Agion antimicrobial technology further supports the production of pure, clear and transparent ice cubes. The unit operates as a head-only machine and is designed to pair with a compatible Scotsman storage bin, giving operators a modular solution that can be configured to suit specific volume and space requirements.

Key Benefits

• Delivers a consistent daily output of up to 270 kg of nugget or cubelet ice to keep pace with high-volume service demands.
• XSafe Natural Sanitation System continuously inhibits bacteria, mould and odour development, supporting safer, cleaner ice production without additional chemicals.
• Agion antimicrobial technology embedded in key components further suppresses microbial growth for ongoing hygiene protection.
• The water-in, ice-out production concept minimises excess energy, water and time consumption, lowering running costs in busy operations.
• Plug-and-work technology simplifies installation and reduces setup time, getting the machine operational quickly.
• Double protection via an electronic rotation sensor and drive coupling, plus a lower-water sensor, helps prevent mechanical faults and unplanned downtime.

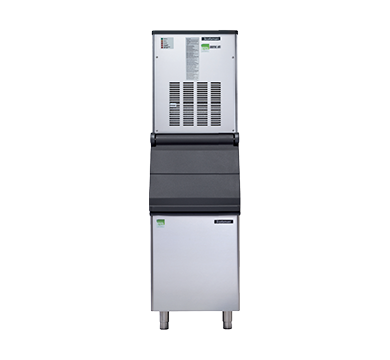

• Modular head-only design pairs with a range of compatible Scotsman storage bins, giving operators flexibility to match storage capacity to outlet needs.
• External indicator lights provide at-a-glance operational and maintenance status, making routine checks quick and straightforward for kitchen staff.
• Removable panels, a removable air filter, and included water and drain hoses simplify routine cleaning and ongoing maintenance.

Key Features

• 270 kg per 24-hour daily ice production capacity.
• Produces 11 mm diameter x 13 mm height, 1 g nugget/cubelet ice cubes.
• Air-cooled configuration with hermetic compressor.
• R404a refrigerant.
• XSafe Natural Sanitation System for continuous air and water sanitation.
• Agion antimicrobial technology resists microbial growth and odour development to produce pure, clear, transparent ice.
• Stainless steel auger and freezing cylinder (evaporator) for durability and hygiene.
• Stainless steel exterior finish; top cover in PS plastic.
• Removable panels for ease of access and cleaning.
• Plug-and-work technology for straightforward installation.
• Simple, reliable electromechanical control system.
• Double protection system: electronic rotation sensor and drive coupling.
• Lower-water sensor protection to guard against dry-run damage.
• External indicator lights display operational status and maintenance alerts.
• Water-in, ice-out production concept limits excess energy, water and time wastage.
• Head-only unit requiring a separate compatible storage bin.
• Compatible storage bins: NB 193 (with CBT 22 EFCD cover), NB 393, NB 530 (with CBT 30 EFSD cover), NB 948 (with CBT 48 FMCD cover), UBH 1100, SIS 300, SIS 700.
• Includes removable air filter, water hose and drain hose.
• Dimensions: 538 mm wide x 663 mm deep x 645 mm high.
• Packed weight: 103 kg.

Specifications

• Width (mm): 538
• Depth (mm): 663
• Height (mm): 645
• Weight (kg): 340.0
