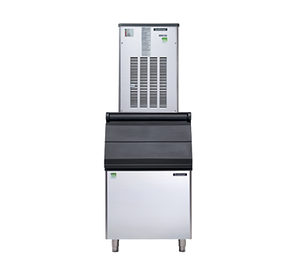

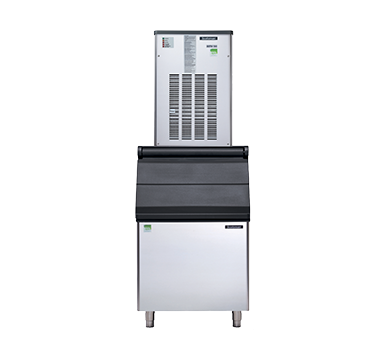

Scotsman MFN S 57 AS OX Modular Nugget and Cubelet Ice Maker Head – 305kg/24hr

The Scotsman MFN S 57 AS OX is a high-output modular ice maker head capable of producing up to 305kg of nugget and cubelet ice every 24 hours, making it an excellent choice for busy commercial kitchens, food service operations, healthcare facilities, and seafood displays. Each cube measures 11mm in diameter by 13mm in height, weighs approximately 1g, and is soft, chewable, and versatile enough for beverage service, food preservation, and clinical applications. The unit operates on a water-in/ice-out production principle, uses a hermetic compressor with R404a refrigerant, and features a stainless steel auger together with a stainless steel evaporator cylinder for consistent, hygienic output.

Built around Scotsman's XSafe Natural Sanitation System and integrated Agion antimicrobial technology, this unit actively resists the growth of bacteria, mould, and odour-causing microbes to deliver pure, clear, and transparent ice at all times. The plug-and-work design pairs with a straightforward electromechanical control system, and the stainless steel exterior is complemented by a PS plastic top cover featuring panels that can be removed for easy access during servicing. External status indicator lights give at-a-glance visibility of operating and maintenance conditions. The head-only unit must be paired with a compatible Scotsman storage bin and ships complete with a removable air filter plus water and drain hoses.

Key Benefits

• Produces up to 305kg of ice per 24 hours, ensuring a reliable and continuous supply in high-demand commercial environments.
• XSafe Natural Sanitation System combined with Agion Technology continuously combats bacteria, mould, and odour development, keeping ice safe and hygienic.
• The water-in/ice-out production concept minimises unnecessary energy, water, and time consumption, helping to lower ongoing operating costs.
• Plug-and-work technology enables fast, straightforward installation with minimal commissioning time and effort.
• A dual-protection arrangement comprising an electronic rotation sensor, drive coupling, and a dedicated low-water sensor reduces the risk of mechanical failure and unplanned downtime.
• The stainless steel auger and evaporator cylinder offer lasting durability and support food-safe hygiene standards.
• External indicator lights provide clear, immediate visibility of operating status and maintenance requirements, simplifying day-to-day management.
• The modular head-only design is compatible with a wide range of Scotsman storage bins, giving flexibility to match ice storage capacity to operational needs.
• Produces soft, chewable 1g cubelet ice ideal for beverages, food display, and medical or healthcare applications.

Key Features

• Head-only modular ice maker unit requiring a separate compatible storage bin
• 305kg daily ice production capacity
• Ice cube dimensions: 11mm diameter x 13mm height, 1g per cube (nugget/cubelet format)
• Air-cooled operation
• Hermetic compressor
• R404a refrigerant gas
• XSafe Natural Sanitation System for continuous hygiene protection
• Agion Technology integrated to resist microbial growth and odour development, producing pure, clear, and transparent ice
• Stainless steel auger and stainless steel evaporator cylinder
• Water-in/ice-out production principle to limit excess energy, water, and time wastage
• Plug-and-work technology for simplified installation
• Simple, reliable electromechanical control system
• Electronic rotation sensor and drive coupling providing dual mechanical protection
• Low-water sensor protection
• Stainless steel exterior finish with a PS plastic top cover; access panels are removable for ease of servicing
• External indicator lights displaying operational status and maintenance alerts
• Compatible storage bins: NB 193 (requires cover CBT 22 EFCD), NB 393, NB 530 (requires cover CBT 30 EFSD), NB 948 (requires cover CBT 48 FMCD), UBH1100, UBH1600, SIS300, SIS700
• Supplied accessories include a removable air filter, water hose, and drain hose
• Dimensions: 538mm wide x 663mm deep x 785mm high
• Packed weight: 103kg

Specifications

• Width (mm): 538
• Depth (mm): 663
• Height (mm): 785
• Weight (kg): 340.0
