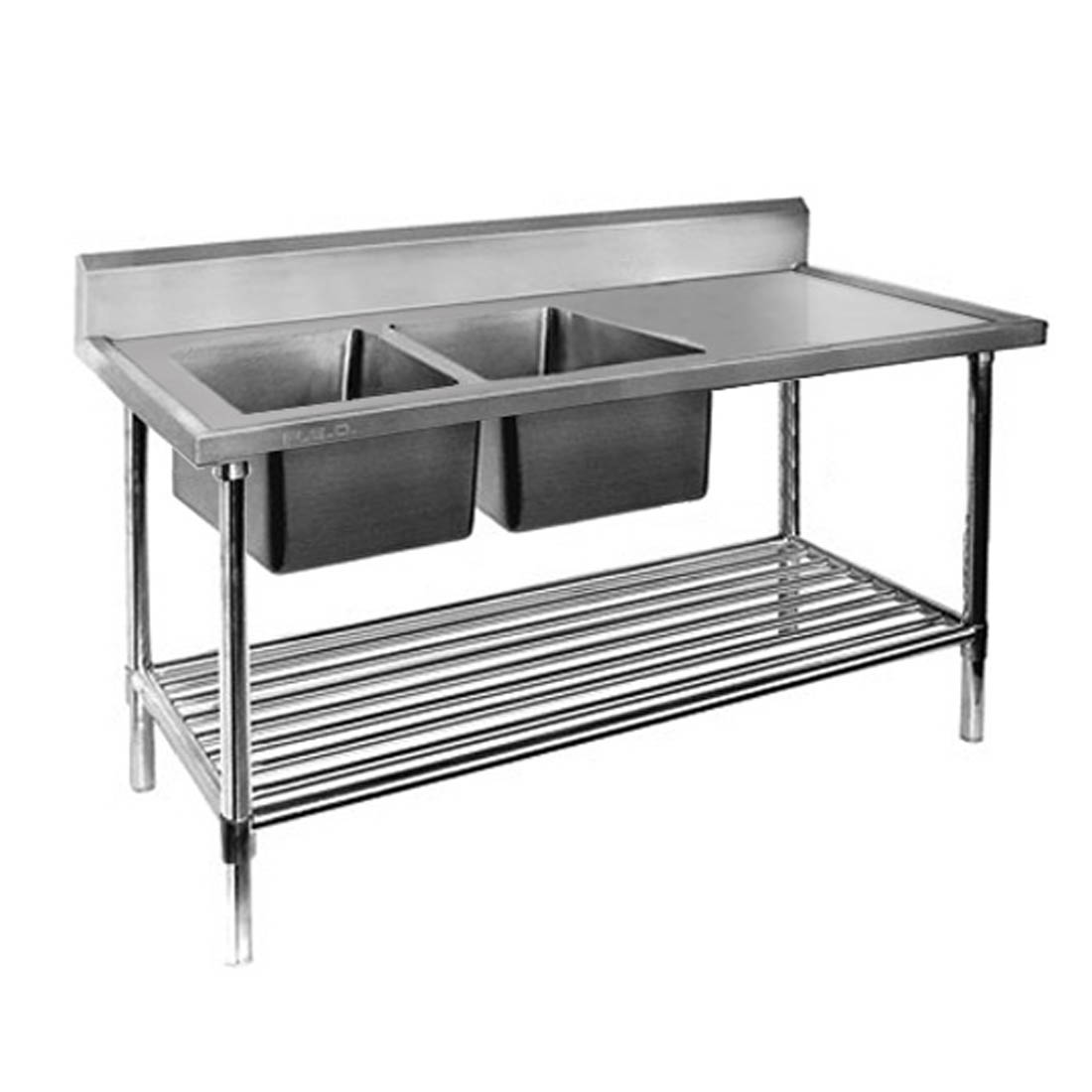

Modular Systems DSB6-1800L/A Modular System Double Left Sink Bench with Pot Undershelf

Overview

Modular Systems DSB6-1800L/A Double Left Sink Bench with Pot Undershelf 1800mm

The Modular Systems DSB6-1800L/A is a 1800mm wide commercial stainless steel sink bench featuring two bowls positioned to the left, a generous pot undershelf, and an integrated splashback. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it delivers the hygiene, structural integrity and corrosion resistance required for demanding food service environments including restaurants, cafés, catering facilities and institutional kitchens.

Supplied flat-packed for straightforward transport and storage, this bench is specially engineered for quick and simple on-site assembly, arriving complete with an instruction manual and all necessary tools. The modular design allows it to integrate seamlessly into any commercial kitchen layout, while optional accessories such as a free leg brace (in place of the pot shelf) and lockable castor kits provide further configuration flexibility to suit individual workflow requirements.

Key Benefits

• Fully welded, polished bowls inside and out ensure a smooth, hygienic surface that is easy to clean and resistant to bacterial harbouring in high-volume washing and food preparation tasks.
• XPS board lining beneath the SUS304 benchtop combined with stainless steel 'U' channel reinforcements provides a rigid, stable work surface that resists flex and warping under heavy daily use.
• Flat-packed delivery with included instruction manual and tools minimises freight costs and simplifies installation, reducing downtime when setting up or reconfiguring a kitchen.
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven floors, while optional lockable castor kits enable the bench to be repositioned easily during cleaning or layout changes.
• The 15mm wet edge around the benchtop contains spills and directs liquid toward the sink bowls, helping to keep surrounding work areas dry and reducing slip hazards.
• A free optional leg brace is available as an alternative to the pot undershelf, allowing operators to choose the configuration that best suits their storage and workflow needs.
• The 150mm high, fully enclosed and bevelled splashback protects the wall behind the bench from moisture and grease, supporting kitchen hygiene standards and simplifying wall maintenance.
• A 2-year parts only warranty backs the unit, providing commercial operators with confidence in long-term reliability and manufacturer support.

Key Features

• Overall dimensions: 1800mm wide x 600mm deep x 900mm high
• Two sink bowls positioned to the left; centre bowl positioning within the bench layout
• Each bowl: 400mm W x 400mm D x 300mm H with a 90mm diameter drain hole
• Bowls are fully welded and polished inside and out for maximum hygiene and durability
• 1.2mm SUS304 (18/8) stainless steel benchtop construction
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for rigidity and insulation
• 15mm wet edge to contain spills on the work surface
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, bevelled and fully enclosed
• Legs: 1.2mm stainless steel, 42mm diameter tube
• 4 legs per bench (1800mm width); 2100mm and 2400mm wide benches are supplied with 6 legs
• Fully adjustable stainless steel polished disc feet, designed to complement the leg finish
• Lockable castor kits available as an optional accessory
• Pot undershelf constructed from 1.2mm SUS304 (18/8) stainless steel
• Pot undershelf outer frame: 38mm diameter x 1.2mm tube; inner tubes: 25mm diameter x 1mm tube with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf (must be specified at time of order)
• Supplied flat-packed for ease of transport and handling
• Specially designed for quick and simple assembly
• Includes instruction manual and assembly tools
• 2-year parts only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 600
• Height (mm): 900
• Weight (kg): 50.8
• Packed Width (mm): 670
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Shipping Weight: 50
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1500
