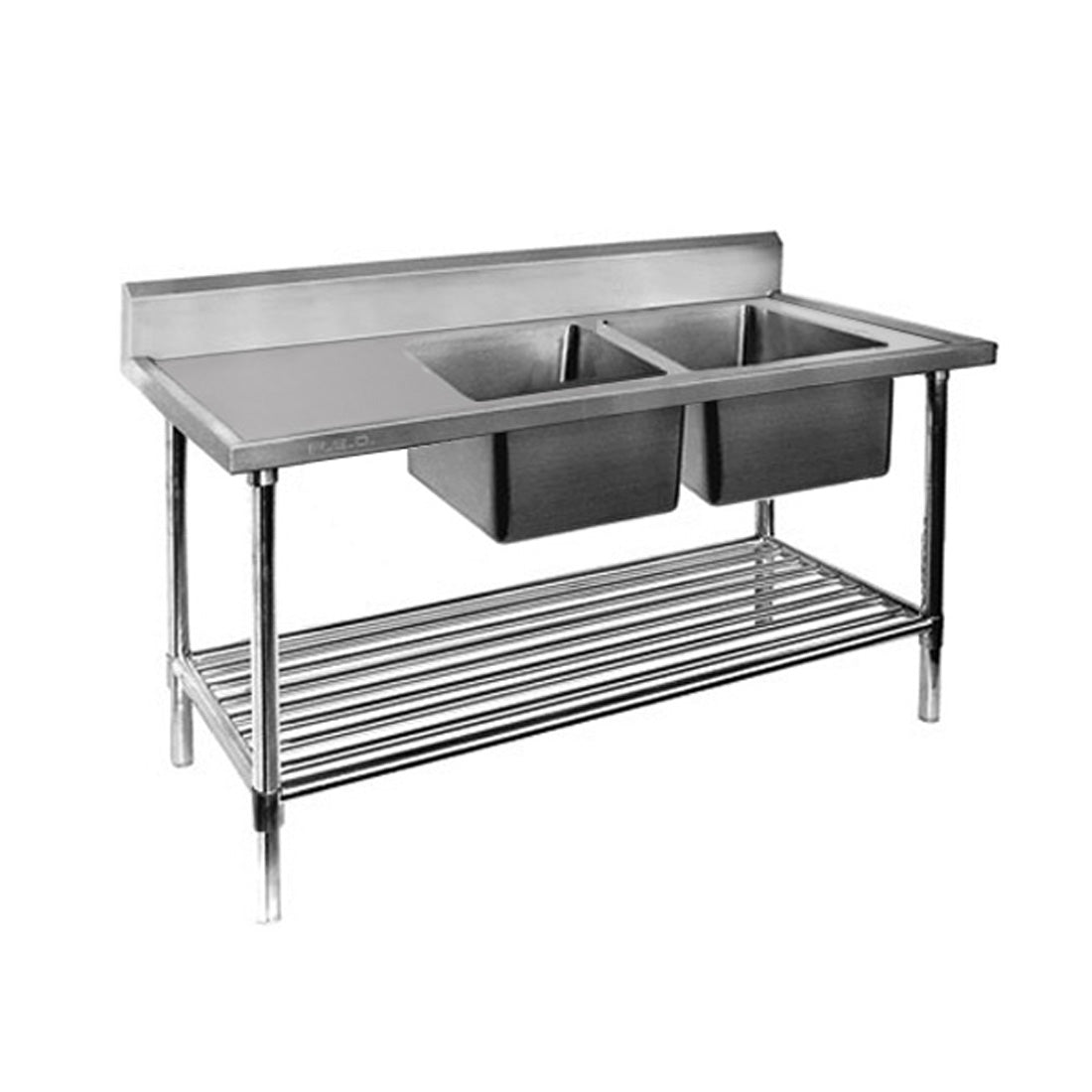

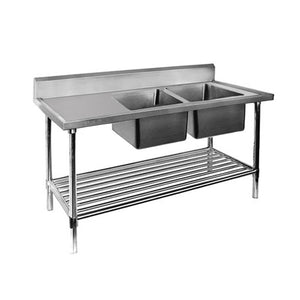

Modular Systems DSB7-1800R/A Double Right Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-1800R/A Double Right Sink Bench with Pot Undershelf 1800mm

The Modular Systems DSB7-1800R/A is a 1800mm wide all-stainless steel double sink bench purpose-built for the rigours of commercial kitchens, cafes, restaurants and catering facilities. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it features two fully welded and polished bowls positioned to the right, a reinforced benchtop lined with XPS board for structural integrity, a 150mm high fully enclosed bevelled splashback, and a pot undershelf for additional storage at floor level.

Supplied flat-packed with an instruction manual and all required tools, the bench is designed for quick and straightforward on-site assembly. Four fully adjustable stainless steel polished disc feet provide stable levelling on uneven floors, and optional lockable castor kits are available for sites that need mobility. A free optional leg brace can be substituted for the pot undershelf at the time of ordering, giving operators flexibility to configure the unit to suit their workflow.

Key Benefits

• Fully welded and polished bowl interiors and exteriors eliminate dirt traps and simplify sanitation, supporting strict commercial hygiene standards.
• Reinforced benchtop construction using XPS board, a stainless steel panel, and SUS304 'U' channel reinforcements underneath delivers long-term resistance to heavy loads and daily wear.
• Flat-pack supply with included instruction manual and tools means the bench can be transported easily and assembled on-site without specialist trades.
• Fully adjustable stainless steel polished disc feet allow the bench to be levelled accurately on uneven kitchen floors, keeping the work surface stable and safe.
• Optional lockable castor kits allow the entire unit to be repositioned as kitchen layouts change or during deep cleaning.
• The integrated pot undershelf keeps large cookware organised and off the benchtop, freeing up prep space and improving kitchen workflow.
• A free optional leg brace is available in place of the pot shelf, letting operators choose the configuration that best suits their storage and circulation needs.
• The 90mm diameter drain hole in each bowl supports rapid drainage during high-volume washing, reducing downtime between tasks.
• A two-year parts-only warranty provides commercial operators with confidence in the long-term reliability of the unit.

Key Features

• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• All components manufactured from 1.2mm SUS304 (18/8) stainless steel
• Two bowls positioned to the right of the bench; each bowl measures 450mm wide x 450mm deep x 300mm high
• 90mm diameter drain hole per bowl for efficient water clearance
• 15mm wet edge around bowl openings for added durability at the most heavily used contact point
• Bowls are fully welded and polished inside and out, with no crevices for bacteria or food debris
• Benchtop lined with 15mm XPS board and a stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 30mm thick, bevelled profile, fully enclosed construction
• Legs: 1.2mm stainless steel, 42mm diameter tubular construction
• Four legs on this 1800mm model (2100mm and 2400mm wide benches in the range include six legs)
• Fully adjustable stainless steel polished disc feet sized to match the leg diameter
• Optional lockable castor kits available separately to allow bench repositioning
• Pot undershelf constructed from 1.2mm SUS304 (18/8) stainless steel; outer frame uses 38mm diameter x 1.2mm tube; inner cross tubes are 25mm diameter x 1mm tube spaced at 40mm intervals
• Free optional leg brace available as a substitute for the pot undershelf; must be specified at time of ordering
• Supplied flat-packed for straightforward freight and handling
• Includes instruction manual and assembly tools
• Weight: 56.6kg
• Packed dimensions: 1870mm x 770mm x 530mm
• 2-year parts-only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 56.6
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Shipping Weight: 56.2
• Warranty (months): 2 Years Parts Only
