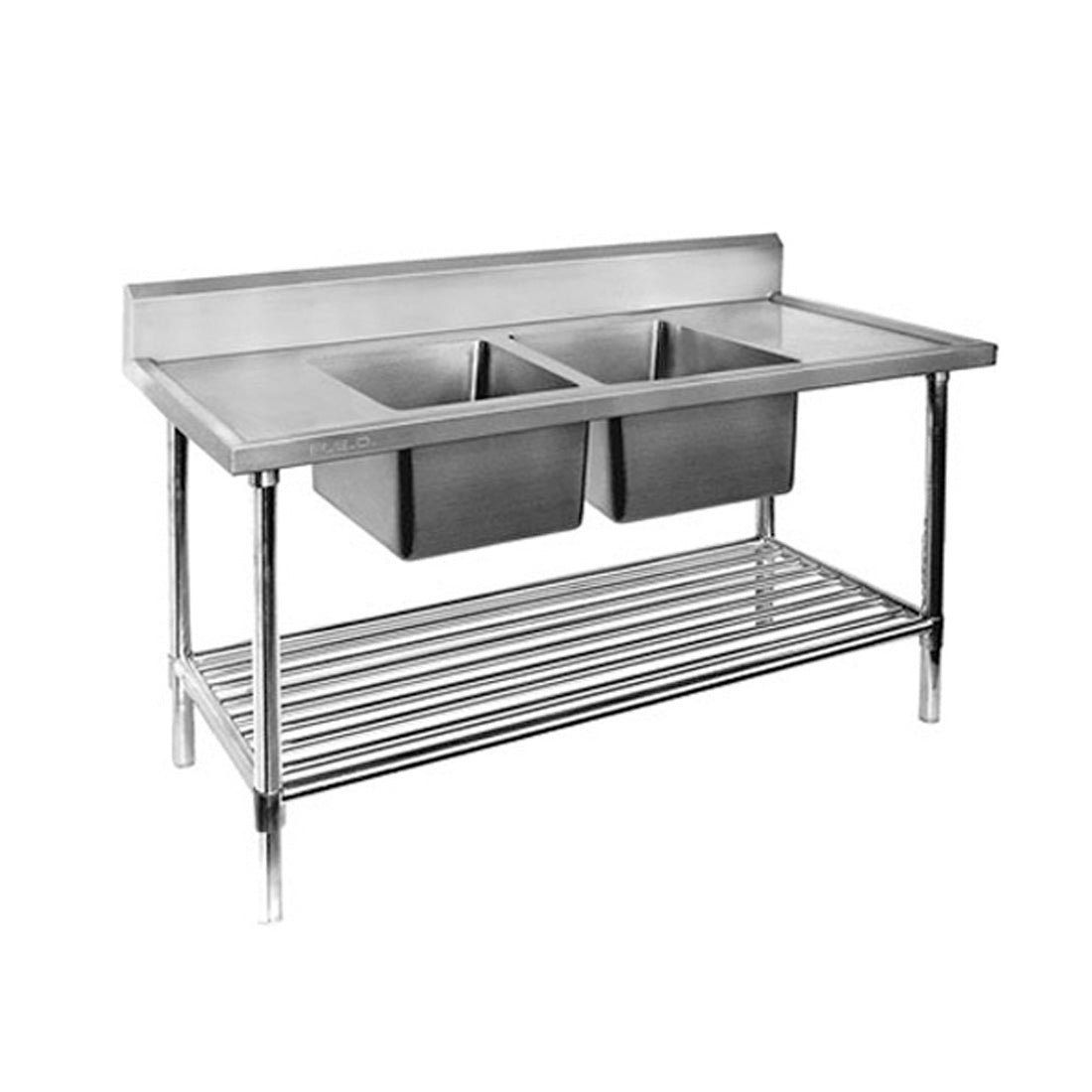

Modular Systems DSB7-2100C/A Modular System Double Centre Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-2100C/A Double Centre Sink Bench with Pot Undershelf 2100mm

The Modular Systems DSB7-2100C/A is a 2100mm wide double centre sink bench constructed from 1.2mm SUS304 (18/8) stainless steel, purpose-built for the rigours of commercial kitchens, restaurants, cafés, catering facilities, and other hospitality environments. Two centrally positioned, fully welded bowls offer balanced access from both sides of the bench, while the included pot undershelf maximises storage directly below the work surface.

Supplied flat-packed with an instruction manual and all necessary tools, the bench is engineered for quick and straightforward on-site assembly. The benchtop is reinforced with XPS board and stainless steel 'U' channel supports, the splashback is fully enclosed and bevelled, and the six fully adjustable polished disc feet ensure a stable, level installation on uneven floors. A free optional leg brace can be substituted for the pot shelf at the time of ordering for added structural support.

Key Benefits

• Twin centrally located bowls allow staff to work efficiently from either side, supporting a balanced and organised kitchen workflow.
• Fully welded, seam-free bowls polished inside and out eliminate crevices where bacteria can harbour, making cleaning faster and hygiene compliance easier.
• A 15mm wet edge around each bowl contains water on the work surface and helps keep the surrounding area dry during heavy washing tasks.
• The 90mm diameter drain holes promote rapid water evacuation, reducing downtime between wash cycles in high-volume service periods.
• XPS board lining and stainless steel 'U' channel reinforcements under the benchtop provide structural rigidity that withstands the weight of heavy pots, pans, and equipment.
• Flat-packed delivery with included tools and an instruction manual reduces freight costs and allows fast assembly without specialist tradespeople.
• Fully adjustable stainless steel polished disc feet accommodate uneven floors and allow precise height setting, with optional lockable castor kits available for kitchens that require a mobile layout.
• The free optional leg brace (specified at time of order) can replace the pot undershelf to further reinforce the frame in applications where additional structural support is preferred.
• A two-year parts-only warranty provides peace of mind and supports long-term reliability in demanding food service operations.

Key Features

• Overall dimensions: 2100mm wide x 700mm deep x 900mm high
• Bowl size: 450mm W x 450mm D x 300mm H per bowl; centrally positioned
• Two bowls, fully welded construction, polished inside and out
• 90mm diameter drain hole per bowl for efficient water discharge
• 15mm wet edge to contain water and protect surrounding work surfaces
• 1.2mm SUS304 (18/8) stainless steel benchtop material
• Benchtop lined with 15mm XPS board and a stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• Six legs on this 2100mm wide bench; legs constructed from 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet for level installation on uneven surfaces
• Optional lockable castor kits available for mobile configurations
• Pot undershelf fabricated from 1.2mm stainless steel (18/8); outer frame tubes 38mm diameter x 1.2mm wall; inner tubes 25mm diameter x 1mm wall with 40mm spacing
• Free optional leg brace available as a substitute for the pot undershelf; must be specified at time of order
• Supplied flat-packed for straightforward transport and storage prior to installation
• Includes instruction manual and assembly tools
• Weight: 66.8kg
• 2-year parts-only warranty

Specifications

• Width (mm): 2100
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 66.8
• Packed Width (mm): 770
• Packed Depth (mm): 2170
• Packed Height (mm): 530
• Shipping Weight: 60
• Warranty (months): 2 Years Parts Only
