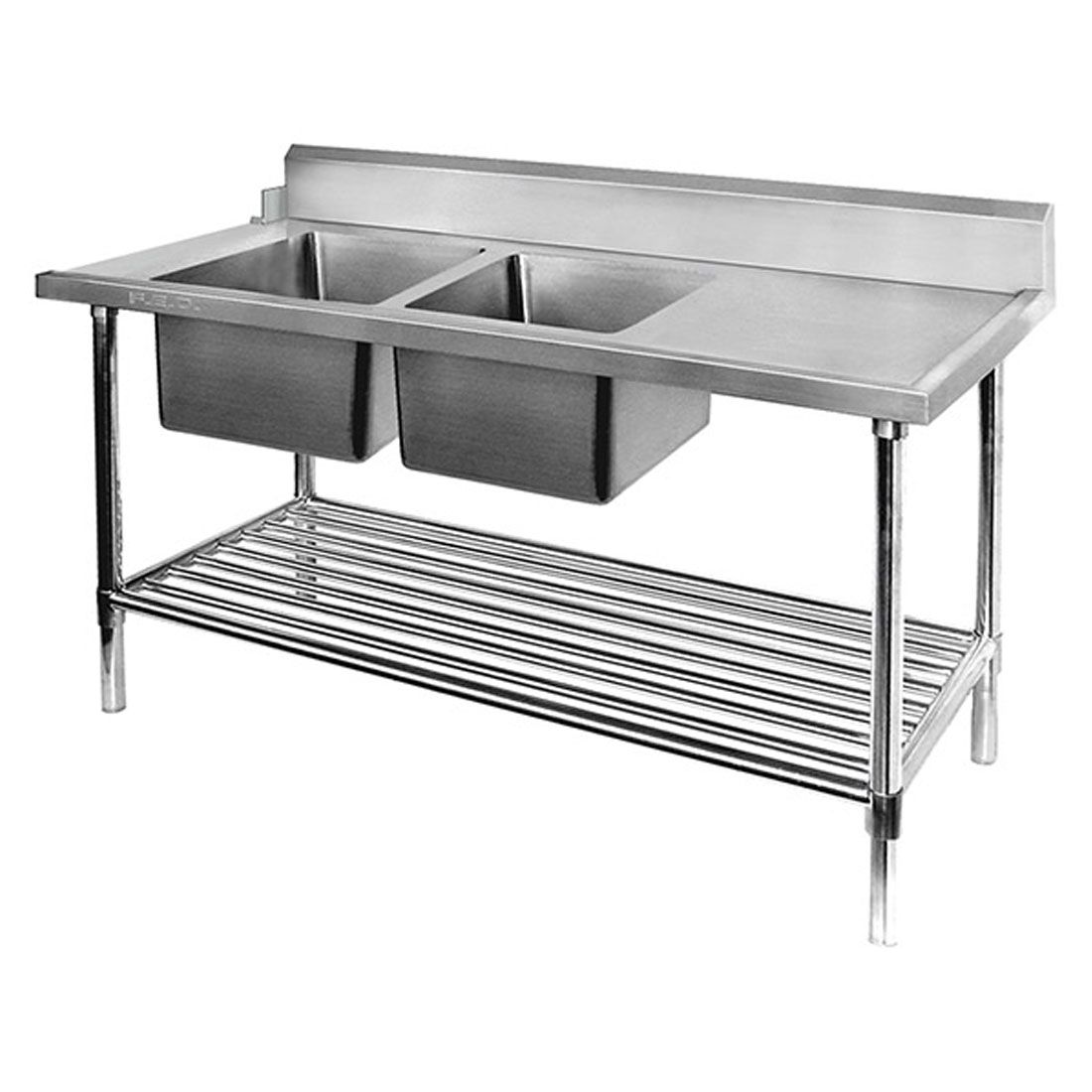

Modular Systems DSBD7-1500L/A Left Inlet Double Sink Dishwasher Bench

Overview

Modular Systems DSBD7-1500L/A Left Inlet Double Sink Dishwasher Bench

The Modular Systems DSBD7-1500L/A is a 1500 mm wide commercial dishwasher bench featuring a left-inlet configuration, meaning the dishwasher inlet and twin sinks are positioned on the left side when facing the bench. Constructed from 1.2 mm SUS304 (18/8) stainless steel throughout, the bench is engineered to handle the demanding pace of busy commercial kitchens, cafes, and venues where consistent warewashing throughput is essential.

Supplied flat-packed with an instruction manual and all necessary tools included, the bench is designed for quick and straightforward on-site assembly. The benchtop is lined with 15 mm XPS board and a stainless steel panel, with stainless steel 'U' channel reinforcements underneath for added rigidity. Fully welded, internally and externally polished bowls, a beveled fully enclosed splashback, and adjustable polished disc feet complete a hygienic, professional-grade workstation backed by a 2-year parts-only warranty.

Key Benefits

• Left-inlet layout keeps the dishwasher feed and soiled-ware sinks together on one side, supporting a logical, efficient workflow through the dishwash area
• Flat-pack delivery with tools and instruction manual included reduces freight costs and makes installation straightforward without specialist trades
• Fully welded bowls polished inside and out eliminate rough seams where food debris can accumulate, supporting fast and thorough cleaning
• XPS board-lined benchtop with stainless steel 'U' channel reinforcements provides a firm, quiet work surface that resists flex under heavy loads
• Fully adjustable stainless steel polished disc feet compensate for uneven floors, keeping the bench level and stable during busy service
• Optional lockable castor kits allow the bench to be repositioned for deep cleaning behind and beneath the unit
• 15 mm wet edge around the bowls contains splashes and directs water back into the sink, keeping the surrounding bench surface drier
• 90 mm diameter drain hole in each bowl allows rapid drainage, minimising standing water and downtime between wash cycles

Key Features

• Overall dimensions: 1500 mm wide x 700 mm deep x 900 mm high
• Bowl size: 450 mm wide x 450 mm deep x 300 mm high
• 90 mm diameter drain hole per bowl for fast drainage
• Left-inlet configuration: dishwasher inlet and sinks are on the left side when facing the bench (right-inlet variants also available in the range)
• Double sink configuration purpose-built to pair with an undercounter dishwasher
• 1.2 mm SUS304 (18/8) stainless steel used throughout construction
• Bowls are fully welded and polished inside and out
• 15 mm wet edge around bowls to contain splashing
• Benchtop lined with 15 mm XPS board and a stainless steel panel for a rigid, insulated work surface
• Stainless steel 'U' channel reinforcements under the benchtop; the number of channels increases with bench width
• Splashback: stainless steel backed, 150 mm high, 30 mm thick beveled profile, fully enclosed
• 4 legs for this 1500 mm bench (2100 mm and 2400 mm wide benches use 6 legs)
• Legs: 1.2 mm stainless steel, 42 mm diameter
• Fully adjustable stainless steel polished disc feet matching the leg finish
• Lockable castor kits available as an optional accessory
• Supplied flat-packed for ease of transport and handling
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 44.8
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1800
