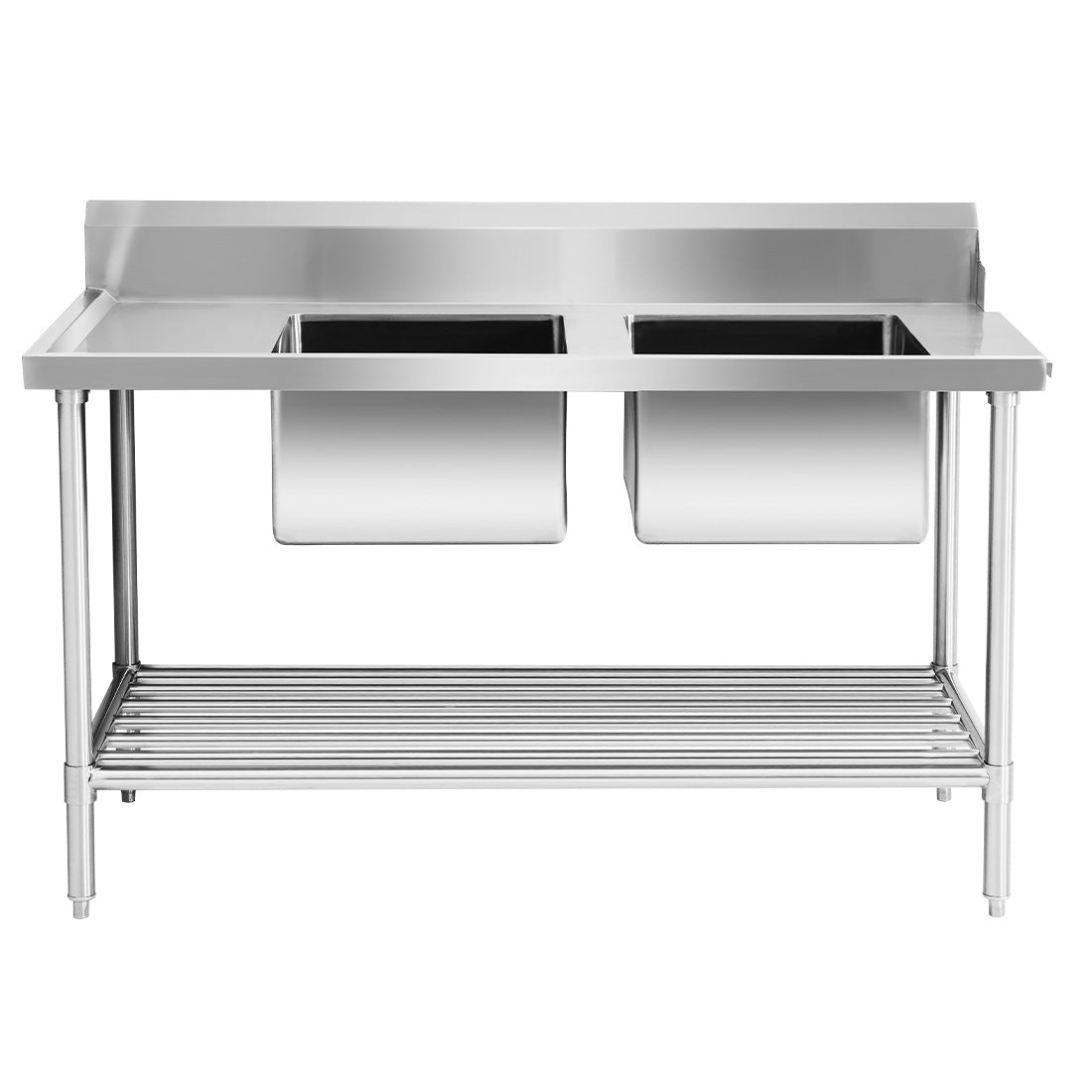

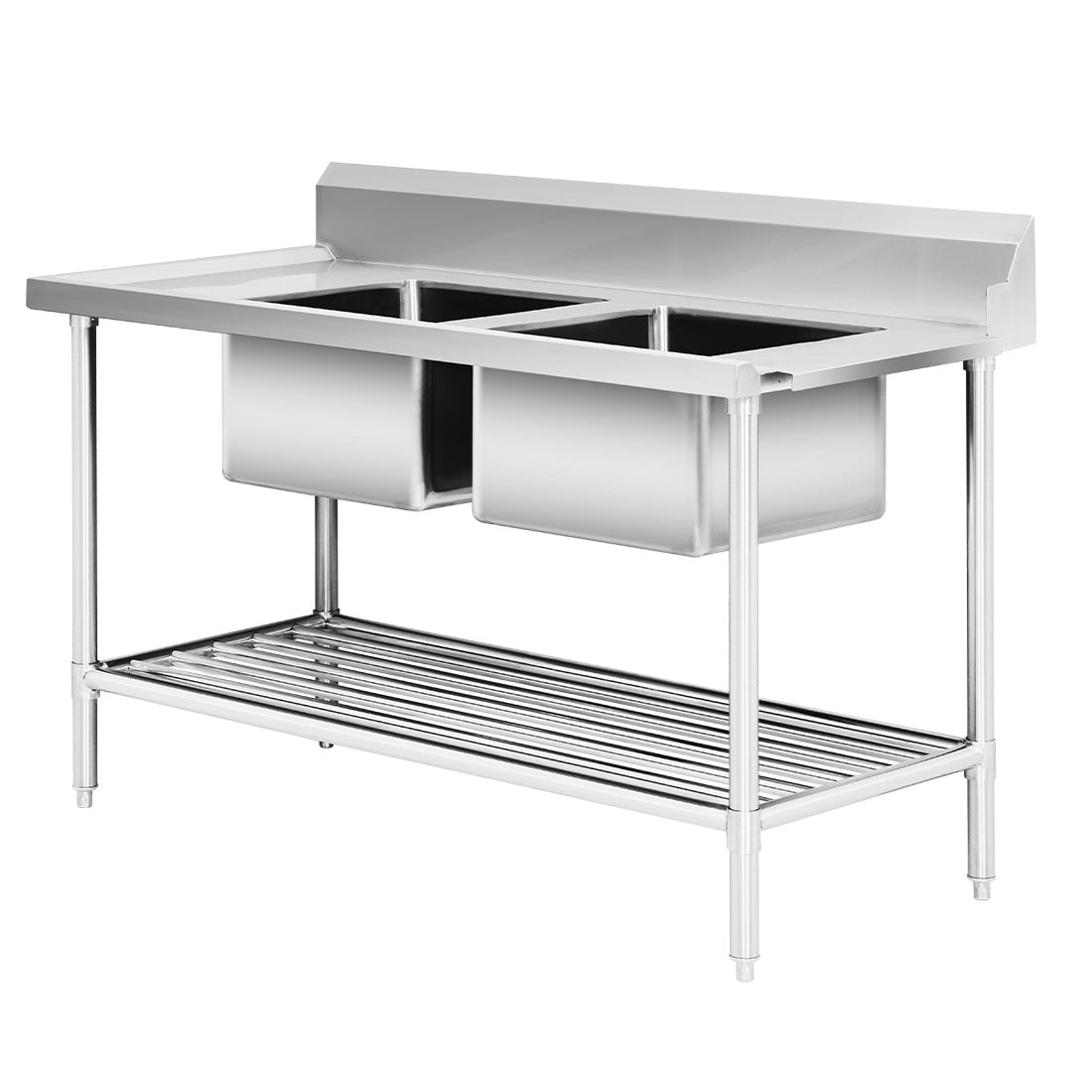

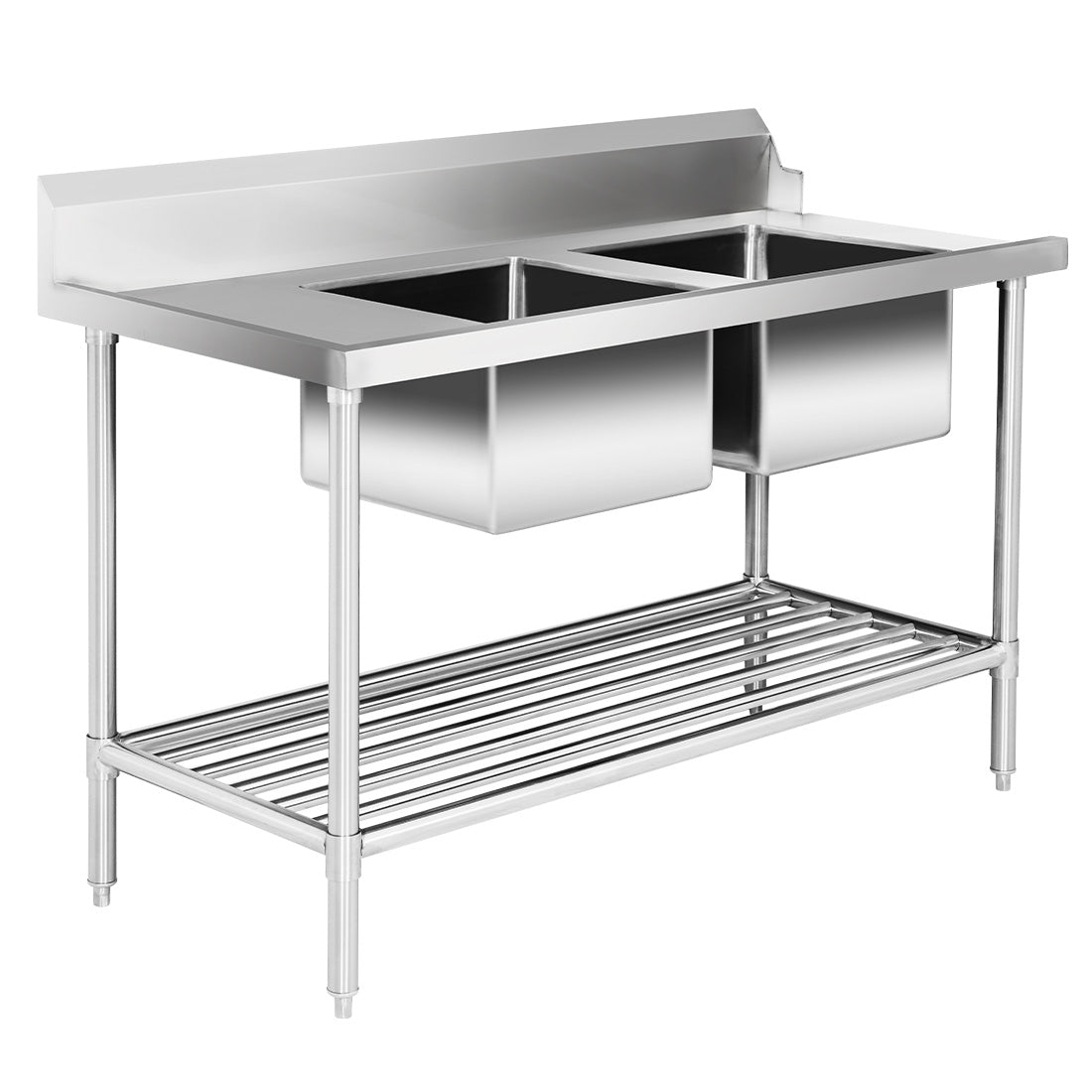

Modular Systems DSBD7-1500R/A Right Inlet Double Sink Dishwasher Bench

Overview

Modular Systems DSBD7-1500R/A Right Inlet Double Sink Dishwasher Bench 1500mm

The Modular Systems DSBD7-1500R/A is a 1500mm wide commercial dishwasher bench featuring a right-side inlet configuration, meaning the dishwasher inlet and double sinks are positioned on the right when facing the bench. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, this bench is engineered for the rigours of busy commercial kitchens, combining hygienic fully welded bowl construction with a reinforced benchtop design that maintains structural integrity under heavy daily use.

Supplied flat-packed for straightforward transport and delivery, the DSBD7-1500R/A arrives with an instruction manual and all tools required for assembly, making installation practical and efficient. The bench suits undercounter dishwasher setups and integrates smoothly into any commercial warewashing workflow, with flexible bowl positioning and optional castor kits available for kitchens that need mobile workstation capability.

Key Benefits

• Right-side inlet layout keeps the dishwasher loading zone and sinks on one side, streamlining the flow of dirty to clean ware during busy service periods
• Fully welded bowls polished inside and out ensure hygienic, easy-to-clean surfaces that meet the demands of high-volume commercial warewashing
• XPS board lining under the SUS304 benchtop panel reduces condensation and provides a solid, stable work surface for stacking and sorting crockery
• Fully adjustable stainless steel polished disc feet allow the bench to be levelled precisely on uneven floors, preventing rocking and spillage
• Flat-packed delivery with included tools and instruction manual reduces freight costs and simplifies on-site assembly without specialist trades
• Optional lockable castor kits add flexibility for kitchens that reconfigure their layout or require the bench to be moved for cleaning access
• Stainless steel 'U' channel reinforcements beneath the benchtop increase rigidity, ensuring the structure handles heavy loads without flex or distortion
• 2-year parts-only warranty provides commercial operators with confidence in long-term reliability and parts support

Key Features

• Right inlet configuration: dishwasher inlet and sinks positioned on the right side when facing the bench

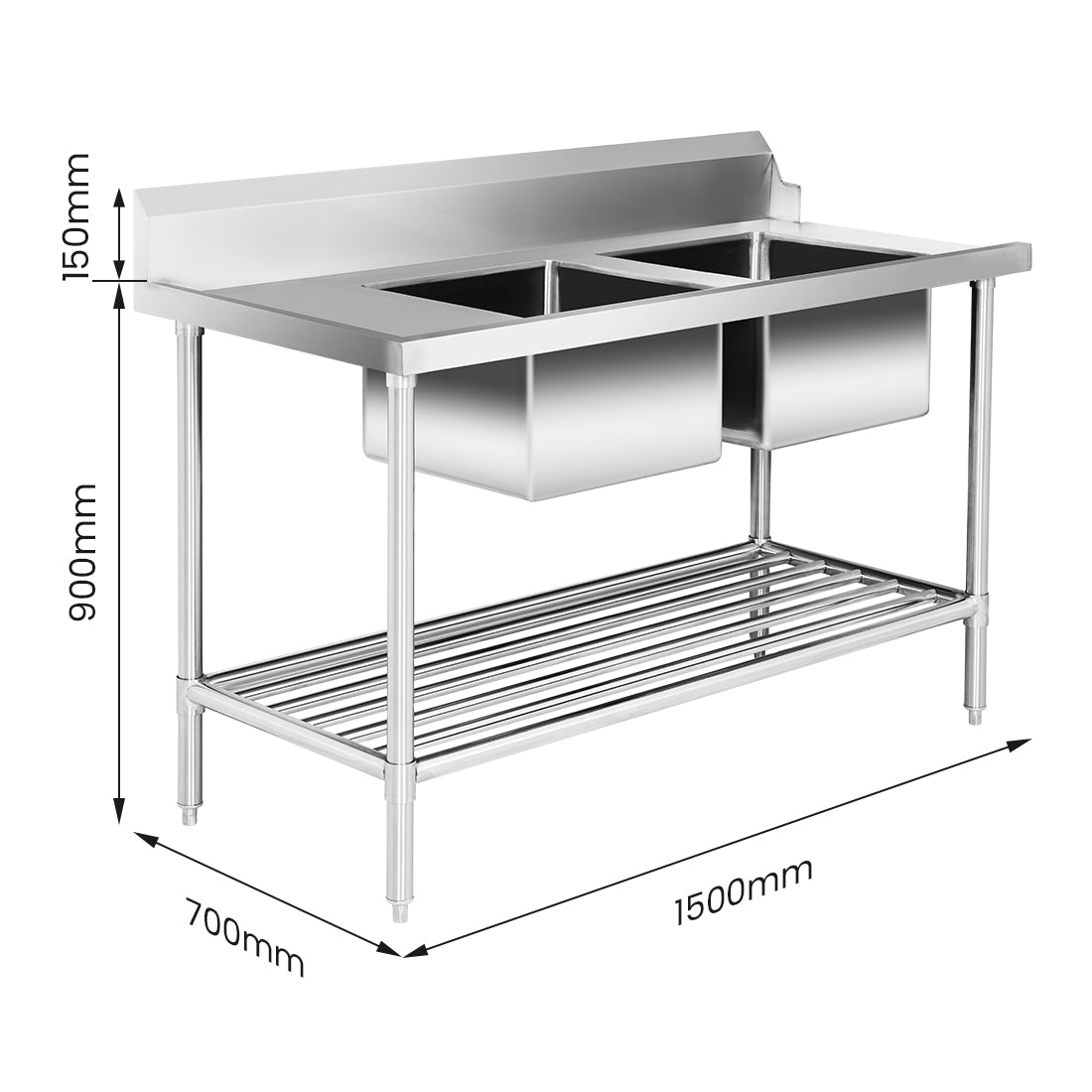

• Overall dimensions: 1500mm wide x 700mm deep x 900mm high
• Double sink bowl size: 450mm wide x 450mm deep x 300mm high each
• 90mm diameter drain hole per bowl for efficient drainage
• Left or right bowl positioning available across the bench range
• Bowls fully welded and polished inside and out for hygiene and durability
• 15mm wet edge finish around bowl surrounds

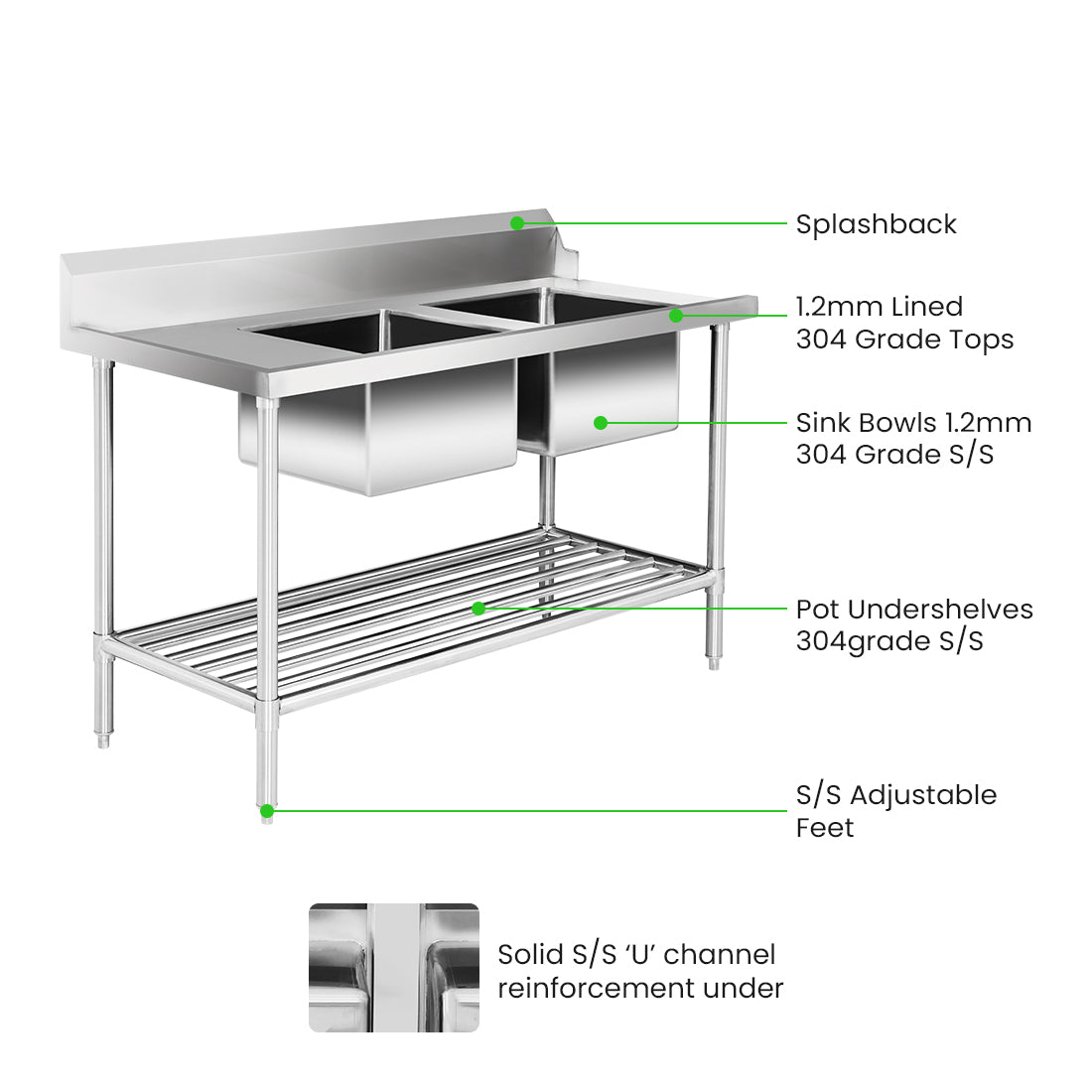

• 1.2mm SUS304 (18/8) stainless steel construction throughout
• Benchtop lined with 15mm thick XPS board and stainless steel panel for a solid, insulated work surface
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 30mm thick, bevelled and fully enclosed

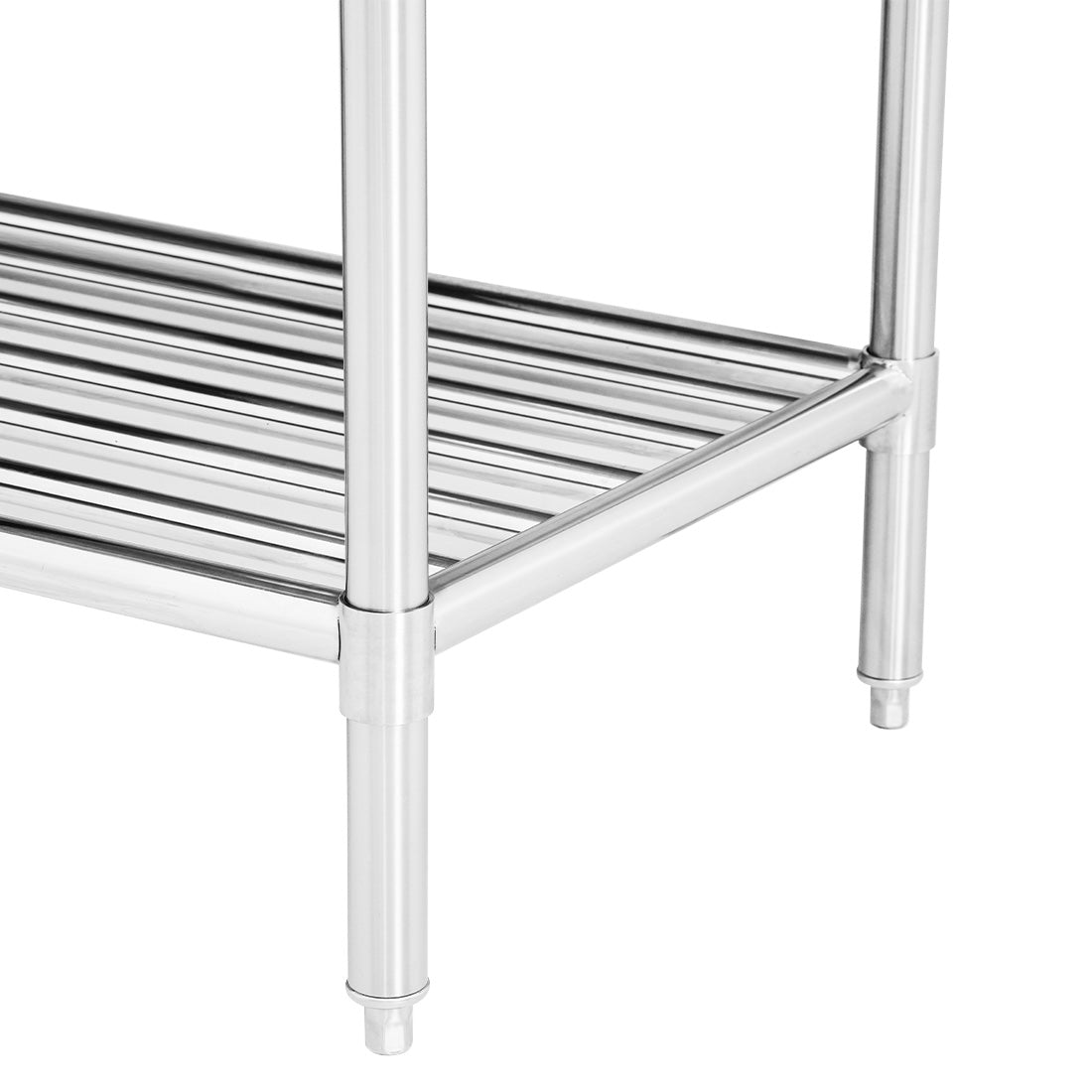

• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet matched to leg finish
• 4 legs per bench (2100mm and 2400mm wide benches include 6 legs)
• Lockable castor kits available as an accessory
• Supplied flat-packed for ease of transport
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 47.5
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Warranty (months): 2 Years Parts Only
