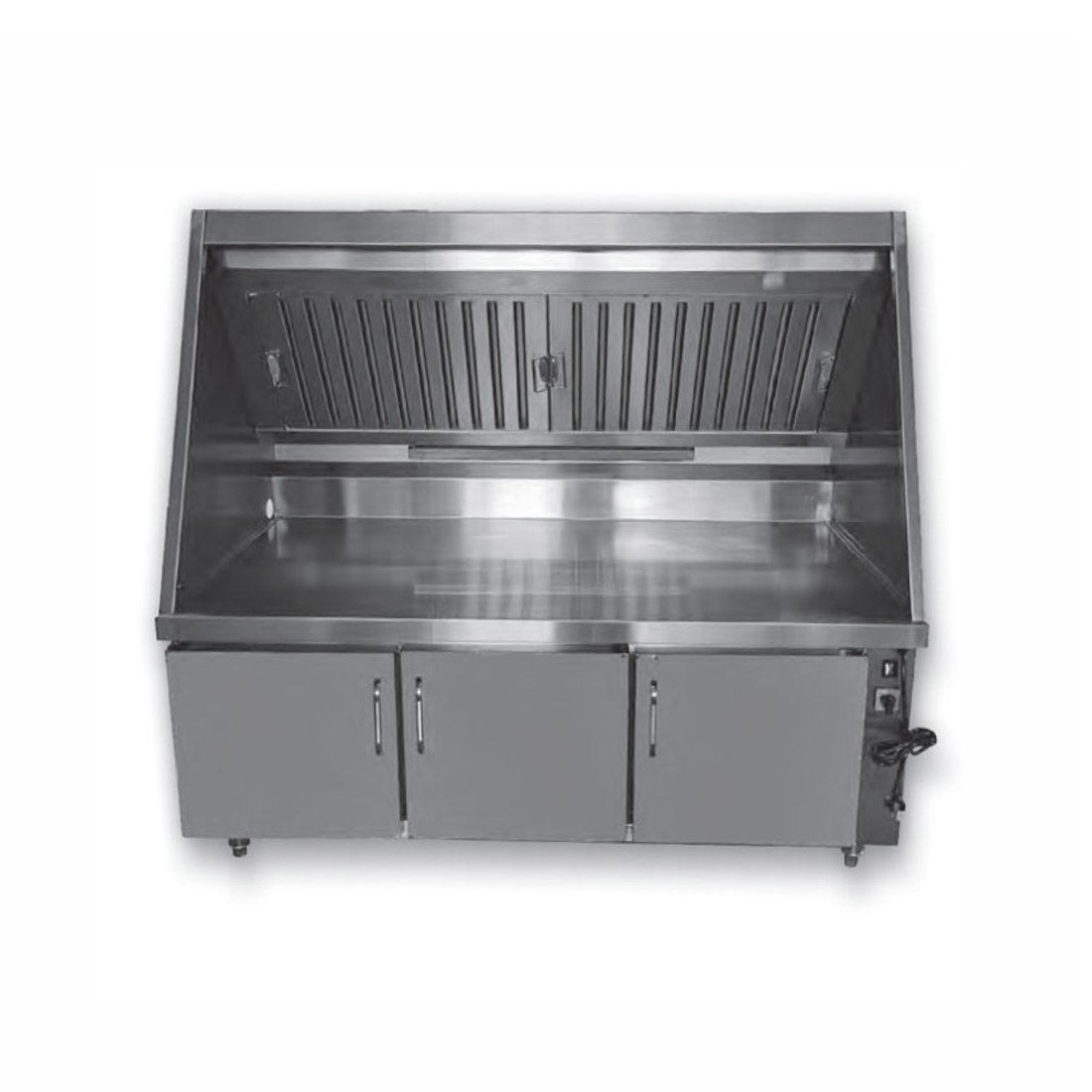

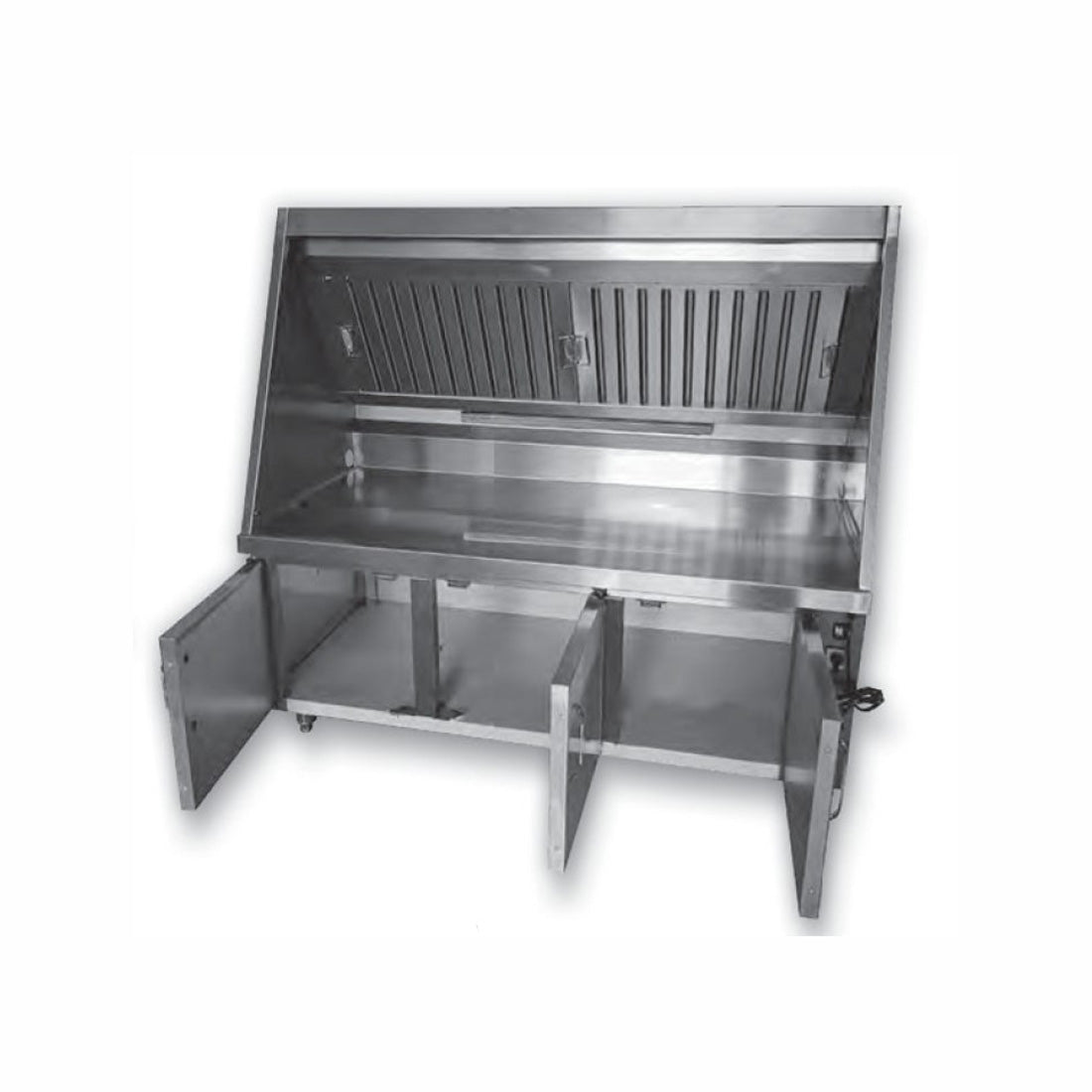

Modular Systems HB1500-750 Range Hood and Workbench System

Overview

Modular Systems HB1500-750 Range Hood and Workbench System

The Modular Systems HB1500-750 combines a powerful extraction range hood with a solid stainless steel workbench into a single, self-contained unit designed for busy commercial kitchens. Constructed from 304 stainless steel throughout, it accommodates three or four cooking appliances simultaneously and is rated for electrical loads up to 8kW total, with the ability to handle a 3-phase unit, making it suitable for a wide variety of professional kitchen configurations.

A quiet yet high-suction motor keeps the cooking environment comfortable without excessive noise, while integrated LED lighting ensures excellent visibility over the work surface. The system arrives ready to use on heavy-duty legs and includes a comprehensive three-stage filtration setup, with each filter type carrying its own straightforward maintenance schedule to keep extraction performance at its best.

Key Benefits

• Accommodates three or four cooking appliances at once, consolidating your cooking line into one compact, organised footprint.
• Rated for electrical appliances up to 8kW total and capable of handling a 3-phase unit, giving flexibility for high-powered commercial equipment.
• Quiet motor with strong suction power keeps the kitchen environment comfortable for staff during long service periods.
• Integrated LED lighting delivers clear, bright illumination directly over the work surface, improving food preparation accuracy and safety.
• 304 stainless steel construction is hygienic, corrosion-resistant, and easy to wipe down, meeting the rigorous hygiene demands of a commercial kitchen.
• Three-stage filtration system traps grease, airborne particles, and odours, with each filter type on a clearly defined replacement schedule to maintain peak performance.
• Heavy-duty legs provide a stable, sturdy base that withstands the vibration and load of daily commercial use.
• 1 Year Parts and Labour Warranty provides peace of mind and minimises downtime costs in a working kitchen environment.

Key Features

• Combined range hood and workbench system in a single integrated unit
• Constructed from 304 grade stainless steel for durability and hygienic maintenance
• Supports electrical appliances up to 8kW total load
• Compatible with 3-phase electrical units
• Designed to accommodate 3 or 4 appliances simultaneously
• Quiet motor delivering strong extraction suction
• Integrated LED lighting for bright, even illumination over the work surface
• Fitted with 3 standard removable grease filters
• Fitted with a polyester filter, recommended replacement every 8 to 12 weeks
• Fitted with a carbon filter, recommended replacement every 12 months
• Mounted on heavy-duty legs for a stable and sturdy operation
• Power supply: 240V, 800W, 10A
• 1 Year Parts and Labour Warranty

Specifications

• Width (mm): 1500
• Depth (mm): 750
• Height (mm): 1400
• Weight (kg): 510
• Packed Width (mm): 1600
• Packed Depth (mm): 850
• Packed Height (mm): 1500
• Shipping Weight: 115
• Power Delivery: 240V; 800W; 10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
