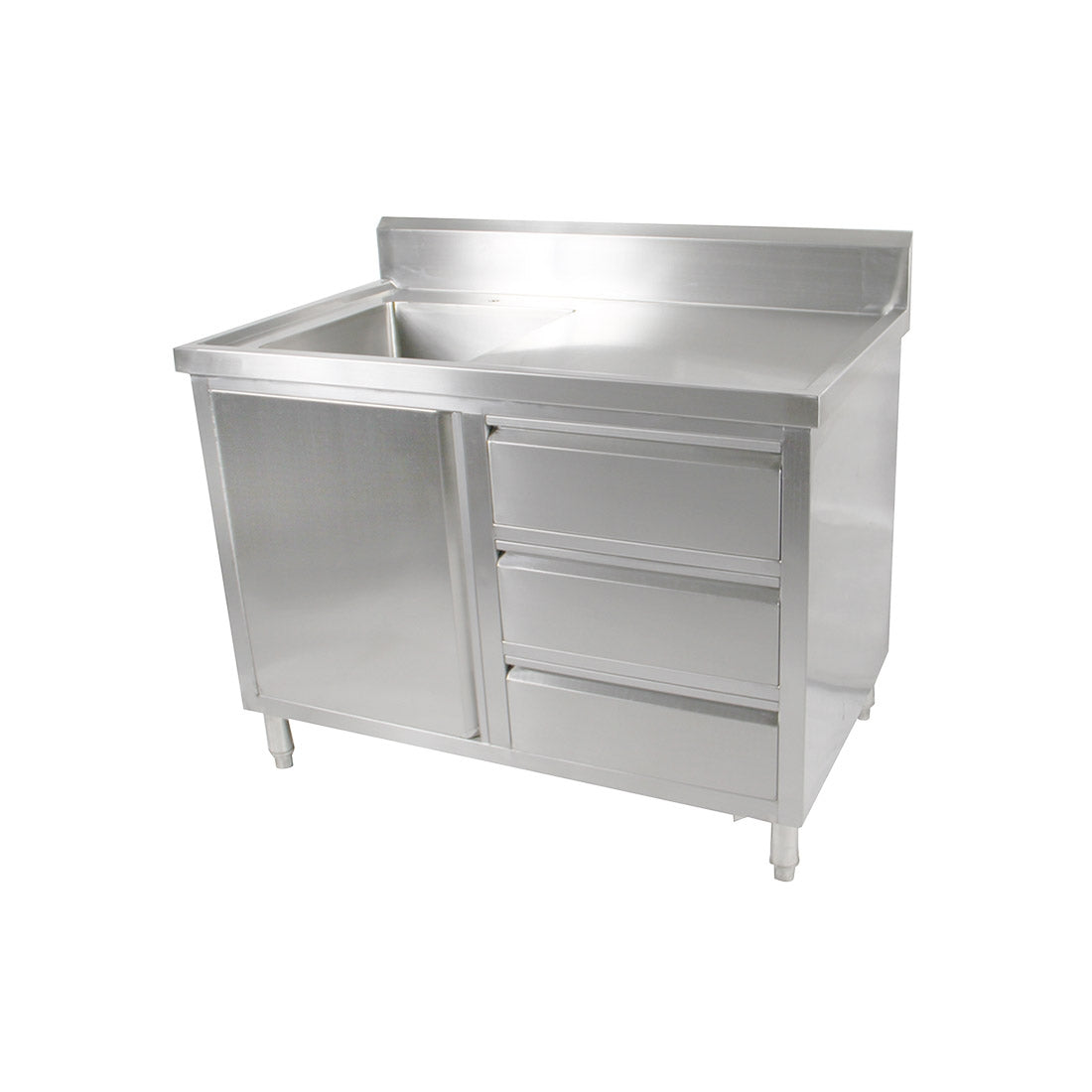

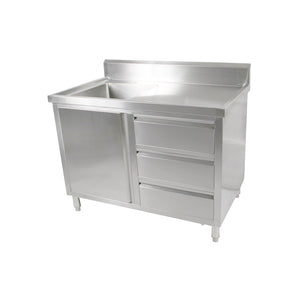

Modular Systems SC-6-1200L-H Cabinet with Left Sink

Overview

Modular Systems SC-6-1200L-H Cabinet with Left Sink

The Modular Systems SC-6-1200L-H is a fully assembled, all stainless steel kitchen tidy cabinet designed for commercial and professional hospitality environments. At 1200 mm wide, it combines a left-positioned punched bowl sink with integrated doors and drawers, delivering a practical all-in-one washing, storage and preparation solution that suits open kitchens particularly well.

Built to demanding food service standards, the cabinet features a 1.2 mm SUS304 grade stainless steel top with reinforced lining, 0.9 mm stainless steel doors and drawers, and fully welded joins throughout. The unit arrives pre-assembled and ready for installation, minimising setup time and ensuring structural integrity from day one.

Key Benefits

• Pre-assembled with all welded joins means the unit is ready to install straight away, reducing labour and setup time on site.
• Left-side sink placement keeps washing and prep activities separated from storage, supporting a logical and efficient kitchen workflow.
• The 400 mm x 400 mm x 300 mm punched bowl provides a generous basin suited to a wide range of washing and food preparation tasks.
• A 90 mm diameter drain hole ensures fast, effective drainage during busy service periods.
• All stainless steel construction throughout the cabinet, top, doors and drawers makes cleaning and sanitising quick and straightforward, supporting high hygiene standards.
• Reinforced top lining adds rigidity to the work surface, allowing it to handle the demands of heavy daily commercial use without warping or flexing.
• Integrated doors and drawers keep utensils, cleaning supplies and equipment neatly stored and accessible, contributing to a tidy and organised kitchen.
• The 150 mm splashback protects the wall behind the sink from water and food residue, reducing cleaning effort and protecting surrounding surfaces.
• Backed by a 2-year parts only warranty for added peace of mind in commercial operations.

Key Features

• Left-positioned punched bowl sink integrated into the 1200 mm wide cabinet
• Bowl dimensions: 400 mm (W) x 400 mm (D) x 300 mm (H)
• 90 mm diameter drain hole for efficient water drainage
• Cabinet body, top, doors and drawers constructed entirely from stainless steel
• Top panel: 1.2 mm thick SUS304 grade stainless steel
• Doors and drawers: 0.9 mm stainless steel
• Tops feature reinforced lining for added rigidity and durability
• Cabinet depth: 600 mm; height: 900 mm plus 150 mm splashback
• Fully pre-assembled with all welded joins for immediate installation
• Includes integrated doors and drawers for organised under-bench storage
• Particularly suited to open kitchen layouts
• 2-year parts only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 600
• Height (mm): 1050
• Weight (kg): 109.2
• Packed Width (mm): 1260
• Packed Depth (mm): 680
• Packed Height (mm): 1230
• Shipping Weight: 263.5
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1200
