Modular Systems SC-7-1200L-H Modular System Cabinet with Left Sink

Overview

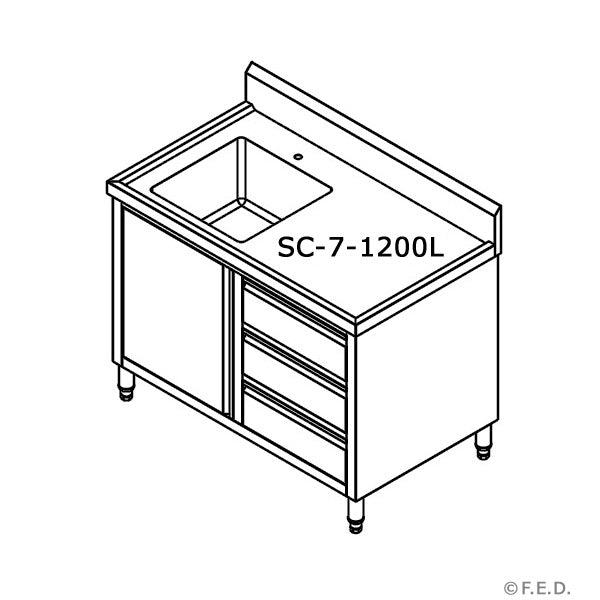

Modular Systems SC-7-1200L-H Modular System Cabinet with Left Sink 1200mm

The Modular Systems SC-7-1200L-H is a fully stainless steel kitchen tidy cabinet combining a left-hand sink with integrated doors and drawers, purpose-built for busy commercial kitchens. At 1200mm wide and 700mm deep, it provides a generous work and wash station that suits open kitchen layouts where cleanliness and visual presentation matter. The cabinet arrives pre-assembled with all-welded joins, so installation is straightforward and the structure is immediately ready for heavy daily use.

Constructed from SUS304 (18/8) grade stainless steel throughout, the unit offers outstanding corrosion resistance and hygiene compliance. The top and frame use 1.2mm material with a professional hairline finish, while doors and drawers are formed from 0.9mm stainless steel. A punched single bowl positioned on the left side features a 90mm diameter drain hole for fast, efficient drainage, and a 150mm splashback protects the wall behind the sink. Doors and drawers keep equipment, cleaning supplies and clutter neatly concealed, helping maintain a tidy, organised kitchen environment.

Key Benefits

• Pre-assembled with fully welded joins means minimal setup time on delivery, reducing installation labour and getting the station operational faster.
• Left-side sink placement keeps the larger work surface on the right, supporting a logical and efficient kitchen workflow.
• SUS304 (18/8) stainless steel construction resists corrosion and meets commercial food service hygiene requirements across restaurants, cafes and catering facilities.
• Integrated doors and drawers hide clutter and store frequently used items within arm's reach, keeping the workspace neat and compliant with kitchen hygiene standards.
• The 150mm splashback shields the wall behind the sink from water splash, reducing cleaning time and helping protect building surfaces.
• A 90mm diameter drain hole promotes rapid water flow and reduces the risk of drainage blockages during peak service periods.
• Hairline finish on the top and frame delivers a sleek, professional appearance that suits front-of-house open kitchen environments.
• 2-year parts-only warranty provides assurance of product quality and long-term reliability in demanding commercial settings.

Key Features

• Left-hand positioned single sink, suited to open kitchen layouts and integrated counter runs.
• Punched sink bowl measuring 450mm wide x 450mm deep x 300mm high, offering ample capacity for washing and food preparation tasks.
• 90mm diameter drain hole for efficient, high-volume drainage.
• 150mm splashback integrated behind the sink area to protect walls from water and food splatter.
• Cabinet body dimensions: 1200mm wide x 700mm deep x 900mm high (plus 150mm splashback).
• Top and frame manufactured from 1.2mm SUS304 grade (18/8) stainless steel with a hairline finish.
• Doors and drawers constructed from 0.9mm stainless steel for robust, long-term performance under high-frequency use.
• All-stainless steel construction throughout, including cabinet body, sink, doors and drawers, for uniform hygiene and appearance.
• Pre-assembled unit with all welded joins, ready to install directly from the box.
• Doors and drawers included to conceal storage and maintain a tidy, clutter-free kitchen environment.
• Designed to integrate with Modular Systems modular kitchen configurations.
• 2-year parts-only warranty.

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 1050
• Weight (kg): 88.2
• Packed Width (mm): 780
• Packed Depth (mm): 1260
• Packed Height (mm): 1230
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1200
