Overview

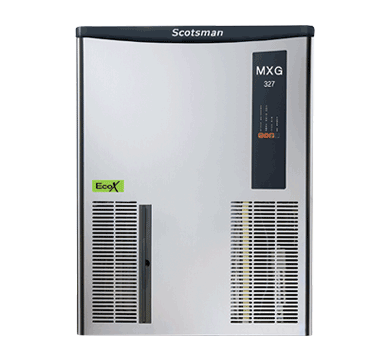

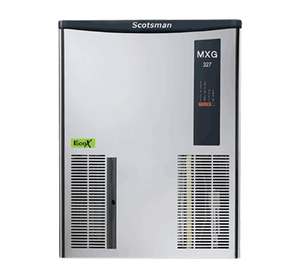

Scotsman MXG M 327 AS OX Modular Gourmet Ice Maker with EcoX and XSafe Technology

The Scotsman MXG M 327 AS OX is a head-only, air-cooled modular ice maker capable of delivering up to 149 kg of crystal-clear gourmet ice within every 24-hour period, making it an excellent choice for high-volume restaurants, hotels, and bars where ice quality and hygiene are non-negotiable. Each round cube measures 30 mm in diameter by 34 mm tall and weighs approximately 20 g, providing a slow-melting shape that preserves drink temperature and elevates beverage presentation. The unit pairs with a separate Scotsman storage bin such as the NB 193, and its compact stainless-steel cabinet fits neatly into most commercial back-of-house installations.

Two integrated technologies distinguish this machine from standard ice makers. EcoX employs the natural hydrocarbon refrigerant R290 for an energy-efficient refrigeration cycle with a very low global-warming potential. XSafe is an automatic natural sanitation system that harnesses high-power ultraviolet light to drive a photocatalytic reaction, generating a reactive oxygen mixture that continuously destroys bacteria, mould, yeast, and viruses around the clock, keeping ice odour-free and food-safe without constant manual intervention. Agion antimicrobial technology is additionally incorporated into ice-contact components to further resist microbial growth and odour development.

Key Benefits

• A daily output of up to 149 kg of gourmet ice keeps pace with demand in busy hospitality venues without interruption.
• Round, slow-melting 20 g cubes dilute drinks more gradually, maintaining flavour and temperature far longer than standard ice shapes.
• XSafe UV sanitation operates automatically around the clock, continuously neutralising bacteria, mould, yeast, and viruses so that manual cleaning demands are significantly reduced.
• EcoX R290 hydrocarbon refrigerant carries a very low global-warming potential, helping venues meet sustainability targets while keeping energy consumption low.
• Agion antimicrobial treatment built into the ice-contact surfaces resists microbial growth and odour development for consistently pure, clear ice cubes.
• Horizontal evaporator spray-system technology ensures even water distribution across the evaporator plate, producing impurity-free, transparent ice every cycle.
• Front-access condenser air filter and a clean alert indicator simplify routine maintenance, reducing downtime and extending machine service life.
• Head-only modular configuration allows operators to pair the ice maker with an appropriately sized Scotsman storage bin, optimising storage capacity for the venue.
• Electromechanical controls and external indicator lights give staff instant, easy-to-read feedback on operating status without complex programming.

Key Features

• Head-only modular ice maker unit; requires a separate storage bin (compatible with Scotsman NB 193 and NB or UBH series bins)
• Daily ice production rate of 149 kg per 24-hour cycle
• Gourmet cube dimensions: 30 mm diameter x 34 mm tall, approximately 20 g per cube
• Air-cooled condensing system rated for maximum ambient temperatures up to 43°C
• EcoX natural hydrocarbon R290 refrigerant with low environmental impact
• XSafe natural sanitation system utilising high-power UV light to drive a photocatalytic oxidation reaction, automatically neutralising bacteria, mould, yeast, and viruses 24/7
• Agion antimicrobial technology integrated into ice-contact components to inhibit microbial growth and odour development
• Horizontal ice evaporator spray-system technology for pure, clear, impurity-free cube production
• Simple, reliable electromechanical controls for straightforward daily operation
• External indicator lights displaying current operational status at a glance
• Clean alert indicator prompting the operator when the filter requires attention
• Easy-access front-mounted condenser air filter for quick, tool-free cleaning
• Removable air filter included
• Robust stainless-steel exterior for durability in commercial kitchen environments
• Automatic rinse and purge cycles to maintain ice clarity and reduce limescale build-up
• Water consumption of 13.3 litres per hour
• Energy consumption of 23.3 kWh per 24 hours
• Electrical supply: 230–240 V, 1P+N+E, 50 Hz; 10 A cord set

Specifications

• Width (mm): 568
• Depth (mm): 704
• Height (mm): 721
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 13.3 liters per hour
• Shipping Weight: 77
• Packed Width (mm): 568.0
• Packed Height (mm): 721.0
• Packed Depth (mm): 704.0
• Shipping Cubic: 0.288308000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 23.3kW/hr
• Capacity (Litres): 150
• Ice Production: 150
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
