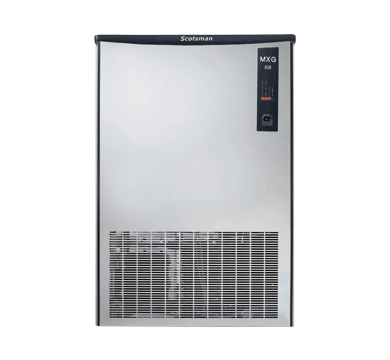

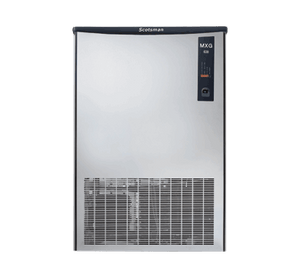

Scotsman MXG M 638 AS OX 310kg XSafe Modular Gourmet Ice Maker

The Scotsman MXG M 638 AS OX is a high-capacity modular gourmet ice maker head designed for demanding commercial environments. It delivers up to 310kg of crystal-clear, round gourmet ice cubes per day using a horizontal ice evaporator spray-system that ensures each cube is free from impurities. The unit is air-cooled, runs on R404a refrigerant, and is built with a robust stainless steel exterior to withstand the rigours of continuous foodservice operation. Being a head-only unit, it requires a compatible storage bin such as the NB 393, NB 530, or NB 948 (with CBT 48 EAMCD cover when the NB 948 is used).

Two distinct sanitation technologies work together to maintain ice purity around the clock. Agion Technology is incorporated into contact surfaces to actively inhibit microbial growth and prevent odour development, while the XSafe Natural Sanitation System uses high-powered ultraviolet light to generate a reactive oxygen mixture that continuously eliminates bacteria, viruses, mould, and yeast throughout the machine. The result is consistently clean, odourless ice that meets food safety requirements. Round gourmet cubes measuring 30mm diameter by 34mm high and weighing 20g each melt slowly, keeping beverages colder for longer without rapid dilution.

Key Benefits

• Produces up to 310kg of ice per day, providing a reliable high-volume supply for busy bars, restaurants, and catering operations.
• Round 20g gourmet cubes melt slowly, reducing drink dilution and keeping beverages at the ideal temperature for longer.
• XSafe UV-based natural sanitation system operates automatically 24/7, eliminating bacteria, viruses, mould, and yeast without chemical intervention.
• Agion antimicrobial technology on internal surfaces continuously resists microbial growth and odour development, supporting consistent ice purity.
• Horizontal evaporator spray-system produces exceptionally clear, impurity-free ice cubes suited to premium beverage presentation.
• Front-access condenser air filter simplifies routine maintenance and helps sustain efficient cooling performance over time.
• Clean alert indicator notifies operators when filter servicing is required, reducing the risk of neglected maintenance affecting ice quality.
• Simple electromechanical controls and external status indicator lights make day-to-day operation and fault monitoring straightforward for kitchen staff.
• Gravity drain and included water and drain hose allow for a straightforward installation alongside a compatible storage bin.

Key Features

• Head-only ice maker unit requiring a separate compatible storage bin (NB 393, NB 530, or NB 948; CBT 48 EAMCD cover required with NB 948).
• 310kg daily ice production rate under rated conditions.
• Round gourmet ice cubes: 30mm diameter x 34mm high, 20g per cube.
• Air-cooled condensing unit rated for operation up to 43°C maximum ambient temperature.
• R404a refrigerant gas.
• XSafe Natural Sanitation System: high-power UV light generates reactive oxygen to continuously eliminate viruses, bacteria, mould, and yeast.
• Agion Technology antimicrobial treatment on internal components resists microbial growth and odour development.
• Horizontal ice evaporator spray-system technology for pure, clear, transparent ice cubes.
• Simple, reliable electromechanical controls.
• Clean alert indicator signals when the filter requires cleaning or replacement.
• Easy-access front condenser air filter for straightforward cleaning and maintenance.
• External indicator lights display operational status at a glance.
• Resistant stainless steel exterior construction suited to commercial kitchen environments.
• Gravity drain only.
• Includes removable air filter, water hose, and drain hose.
• Electrical rating: 230-240V, 1 phase + neutral + earth, 50Hz, 2500W; 10A cordset supplied.
• Compressor: 7400W.
• Energy consumption: 51kWh per 24 hours.
• Water consumption: 22.9 litres per hour.
• Dimensions: 773mm wide x 704mm deep x 1128mm high.
• Unit weight: 116kg.

Specifications

• Width (mm): 773
• Depth (mm): 704
• Height (mm): 1128
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 22.9 liters per hour
• Shipping Weight: 129
• Packed Width (mm): 773.0
• Packed Height (mm): 1128.0
• Packed Depth (mm): 704.0
• Shipping Cubic: 0.613849000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 51kW/hr
• Capacity (Litres): 290
• Ice Production: 290
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
