Overview

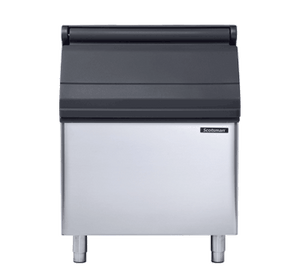

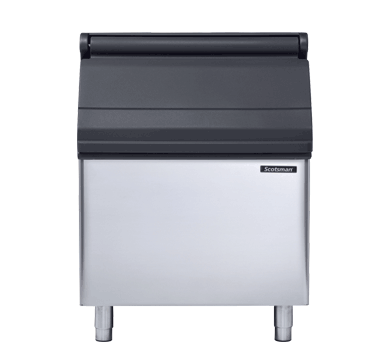

Scotsman NB 393 178kg Ice Storage Bin

The Scotsman NB 393 is a heavy-duty commercial ice storage bin offering a 178kg capacity, purpose-built to pair with Scotsman modular ice maker heads across cube, flake, and nugget production formats. Constructed with a stainless steel exterior and a rotocast plastic hinged door, the bin features a slope-front design for ergonomic access, along with high-density polyethylene insulation to minimise ice melt and preserve ice quality throughout a demanding service period.

Designed for hotels, restaurants, bars, and high-volume food service operations, the NB 393 forms part of Scotsman's broader NB and UBH Series range of slope and upright storage bins spanning 109kg to 812kg capacity. A compatible top cover is required depending on which Scotsman ice maker head is used, and the bin ships complete with an ice scoop, scoop holder, water hose, and drain hose, making it ready to integrate into an existing or new ice production setup.

Key Benefits

• Stores up to 178kg of ice, providing a substantial reserve for medium to high-volume venues and reducing the risk of running out during peak service.
• High-density polyethylene insulation slows ice melt, preserving ice integrity and reducing water waste throughout the day.
• Slope-front bin design combined with a stay-open hinged door allows fast, ergonomic ice retrieval without awkward reaching or door-holding.
• Removable gaskets simplify deep cleaning and sanitation, supporting food safety compliance in regulated commercial environments.
• Pairs with a wide range of Scotsman modular ice maker heads, offering flexible installation options across cube, flake, and nugget ice production types.
• Built-in scoop holder keeps the ice scoop hygienic and within reach, streamlining ice service during busy periods.
• Stainless steel exterior delivers a professional finish and long-term durability in demanding kitchen or bar environments.
• Supplied ready to use with an ice scoop, water hose, and drain hose, reducing installation time and additional equipment costs.

Key Features

• 178kg maximum ice storage capacity
• Slope-front bin configuration for easy ice access
• Stainless steel bin exterior for durability and professional appearance
• Rotocast plastic hinged door
• High-density polyethylene insulation to reduce ice melt
• Food-safe polyethylene-lined interior for ice purity and easy sanitation
• Removable gaskets for straightforward cleaning and hygiene maintenance
• Built-in ice scoop holder for convenient, hygienic storage
• Includes ice scoop, water hose, and drain hose
• Requires a compatible storage bin top cover depending on the ice maker head selected: CBT 30 52 AMCD for use with NW 307 and NW 507 ice makers; CBT 30 EFSD for use with the flake and nugget head models MF 36, MF 47, MF 59, MFN 46, and MFN 56
• Part of the NB and UBH Series, accommodating Scotsman modular ice maker heads that produce cube, flake, or nugget ice
• Dimensions: 768mm wide x 843mm deep x 1039mm high
• Regular 6-monthly descaling and evaporator plate maintenance recommended to ensure ice quality, food safety compliance, and warranty validity

Specifications

• Width (mm): 768
• Depth (mm): 843
• Height (mm): 1039
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 65
• Packed Width (mm): 760.0
• Packed Height (mm): 1040.0
• Packed Depth (mm): 850.0
• Shipping Cubic: 0.671840000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 178
• Ice Storage: 150
• Installation Type: Storage Bin
