Overview

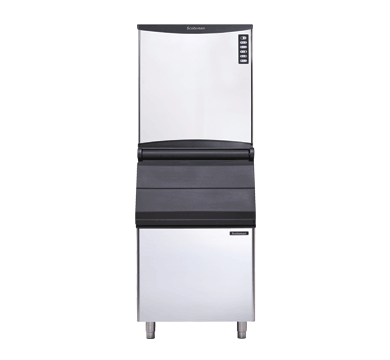

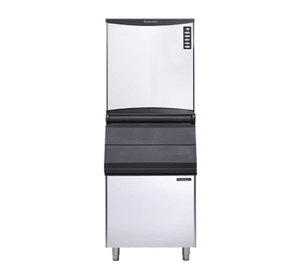

Scotsman NW 1008 AS OX 456kg XSafe Modular Dice Ice Maker

The Scotsman NW 1008 AS OX is a high-capacity modular ice maker head producing up to 456 kg of crystal-clear dice ice per 24 hours, making it an ideal choice for busy bars, restaurants, hotels, and catering operations with serious ice demands. Each cube measures 22 mm x 22 mm x 22 mm and weighs approximately 10 g, offering a large surface area for rapid chilling in beverages, bulk cooling, and ice bagging applications. Built with a T304 grade stainless steel exterior and air-cooled operation, the unit is engineered for durability and consistent performance in demanding commercial environments.

The NW 1008 AS OX incorporates Scotsman's XSafe Natural Sanitation System, which uses high-power ultraviolet (UV) light to generate a reactive oxygen mixture that continuously circulates through the machine, eliminating bacteria, mould, yeast, and viruses to deliver clean, odourless ice around the clock. Agion Technology further resists microbial growth and odour development throughout the ice-making components. A vertical evaporator spray-system, front evaporator access for easy servicing, and a one-touch cleaning button reduce labour and downtime, while auto-alert indicator lights keep operators informed of operational status and maintenance requirements. The unit is a head-only model and requires a compatible storage bin.

Key Benefits

• Produces up to 456 kg of dice ice every 24 hours, ensuring a continuous and reliable supply for high-volume venues
• XSafe UV-based natural sanitation system runs automatically 24/7, eliminating bacteria, mould, yeast, and viruses without chemical additives for safer, cleaner ice
• Agion Technology built into components actively inhibits microbial growth and odour development, maintaining ice purity over the long term
• One-touch cleaning mode reduces labour time and simplifies routine maintenance for kitchen staff
• Front evaporator access means servicing and inspections can be carried out quickly without major disassembly, minimising machine downtime
• Top air discharge design allows installation in narrow or confined spaces where side clearance is limited
• Auto-alert indicator lights provide at-a-glance monitoring of operational status and maintenance needs, helping staff respond promptly to any issues
• Modular head-only design pairs with a range of compatible Scotsman storage bins (NB 393, NB 530, NB 948, UBH 1100) to suit varying storage capacity requirements
• Regular six-monthly filter cartridge replacement and de-scaling of the evaporator plate maintains ice shape, thickness, and hygiene while extending machine service life

Key Features

• 456 kg daily ice production rate under rated conditions
• Produces 22 mm x 22 mm x 22 mm dice ice cubes weighing approximately 10 g each
• Head-only modular unit — storage bin purchased separately
• Compatible storage bins: NB 393, NB 530, NB 948 (requires CBT 48 EAMCD cover), and UBH 1100
• XSafe Natural Sanitation System uses high-power UV light to generate reactive oxygen, continuously eliminating bacteria, mould, yeast, and viruses
• Agion Technology integrated throughout to resist microbial growth and prevent odour development, producing pure, clear, and transparent ice
• Vertical evaporator spray-system technology for efficient and consistent ice formation
• Air-cooled condensing unit
• Top air discharge for suitability in narrow or space-restricted installations
• Front evaporator access for straightforward servicing and inspection
• One-touch button for easy, labour-saving cleaning cycles
• T304 grade stainless steel exterior for durability, hygiene, and ease of cleaning
• Auto-alert indicator lights display operational status and maintenance alerts
• Gravity drain only
• Electrical rating (single phase): 230–240 V, 1P+N+E, 50 Hz, 2100 W, 15 A — cordset supplied
• Electrical rating (three phase): 400–415 V, 3P+N+E, 50 Hz, 2500 W, 10 A
• Energy consumption: 45 kWh (single phase) / 23.1 kWh (three phase)
• R404a refrigerant gas
• Water consumption: 16.9 litres per hour
• Dimensions: 760 mm (W) x 620 mm (D) x 800 mm (H)
• Packed weight: 122 kg
• Includes removable air filter, water hose, and drain hose
• Optional stacking kit: KSC 1000 for use with NW 1008
• Water filter cartridge replacement recommended every six months; regular evaporator de-scaling required to maintain ice quality and extend machine life

Specifications

• Width (mm): 22
• Depth (mm): 22
• Height (mm): 22
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 16.9 liters per hour
• Shipping Weight: 112
• Packed Width (mm): 760.0
• Packed Height (mm): 800.0
• Packed Depth (mm): 704.0
• Shipping Cubic: 0.428032000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 454
• Ice Production: 454
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
