Overview

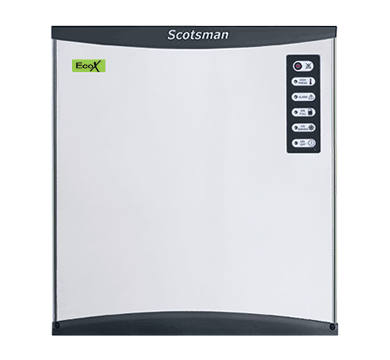

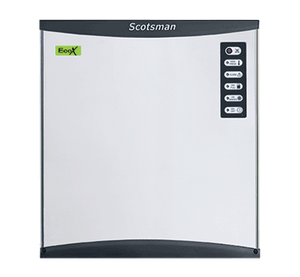

Scotsman NW 507 AS OX 199kg EcoX & XSafe Modular Dice Ice Maker

The Scotsman NW 507 AS OX is a high-capacity modular dice ice maker producing up to 199 kg of crystal-clear, solid ice cubes every 24 hours, making it well suited to restaurants, hotels, bars and other busy hospitality venues with heavy ice demands. Each cube measures 22 mm x 22 mm diameter x 22 mm and weighs approximately 10 g, delivering the classic dice shape that performs equally well in beverages, bulk cooling and ice bagging thanks to its generous surface area for rapid heat exchange.

Two of Scotsman's flagship technologies are built into this machine: EcoX, which uses the natural hydrocarbon refrigerant R290 to minimise environmental impact and reduce running costs, and XSafe, a natural sanitation system that employs high-power UV light and photocatalytic oxidation to continuously neutralise bacteria, mould, yeast and viruses without chemicals, producing consistently clean and odour-free ice around the clock. Combined with Agion antimicrobial technology embedded throughout the ice-contact surfaces, the NW 507 AS OX sets a high standard for both hygiene and sustainability in commercial ice production.

Key Benefits

• Produces up to 199 kg of dice ice per 24 hours, providing a reliable, high-volume supply for demanding service environments
• XSafe natural sanitation system uses UV light and photocatalytic oxidation to automatically eliminate bacteria, mould, yeast and viruses 24/7, ensuring hygienic and odour-free ice without manual chemical treatment
• EcoX R290 hydrocarbon refrigerant has one of the lowest environmental impacts available, cutting greenhouse gas emissions while also reducing energy running costs
• Agion antimicrobial technology on ice-contact surfaces continuously resists microbial growth and odour development, supporting pure, clear and transparent ice cubes
• Top air discharge design allows installation in narrow or confined spaces where side clearance is limited
• Front evaporator access and one-touch cleaning mode simplify routine servicing and reduce labour time
• Auto-alert indicator lights give operators immediate visibility of operating status and maintenance requirements, minimising downtime
• Vertical evaporator spray-system technology produces dense, slow-melting dice ice with a large surface area ideal for cocktails, soft drinks and rapid chilling applications
• Modular head-only design pairs with multiple compatible Scotsman storage bins, allowing the ice solution to be scaled to suit available space and storage needs

Key Features

• Head-only modular ice maker unit; storage bin purchased separately
• Daily ice production: 199 kg per 24 hours
• Ice cube dimensions: 22 mm W x 22 mm diameter x 22 mm H; approximate weight 10 g per cube
• Air-cooled condensing unit with top air discharge, suitable for narrow-space installation
• EcoX technology: natural hydrocarbon R290 refrigerant gas for low environmental impact and energy efficiency
• XSafe natural sanitation system: high-power UV light generates a reactive oxygen mixture that flows through the machine to eliminate viruses, bacteria, mould and yeast continuously
• Agion antimicrobial technology integrated throughout to resist microbial growth and odour development
• Vertical evaporator spray-system technology for efficient, consistent cube formation
• T304 grade stainless steel exterior for durability, corrosion resistance and ease of cleaning
• One-touch button for simplified cleaning cycle operation
• Auto-alert indicator lights display operational status and maintenance alerts
• Front evaporator access panel for straightforward servicing without moving the unit
• Removable air filter for easy cleaning and maintenance
• Includes water supply hose and drain hose
• Gravity drain only
• Compatible storage bins: NB 193; NB 393 (requires CBT 30 52 AMCD cover); NB 530 (requires CBT 30 52 AMCD cover)
• Electrical supply: 230-240 V, 1P+N+E, 50 Hz; 10 A cordset supplied
• Energy consumption: 23.3 kWh per 24 hours
• Dimensions: 560 mm W x 610 mm D x 609 mm H
• Packed weight: 77 kg
• Maximum ambient operating temperature: 43°C
• Water filter cartridge replacement recommended every 6 months; regular de-scaling of the evaporator plate required to maintain ice quality and extend machine life

Specifications

• Width (mm): 560
• Depth (mm): 610
• Height (mm): 662
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 77
• Packed Width (mm): 568.0
• Packed Height (mm): 721.0
• Packed Depth (mm): 704.0
• Shipping Cubic: 0.288308000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 23.3kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
