Overview

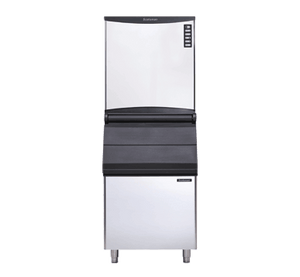

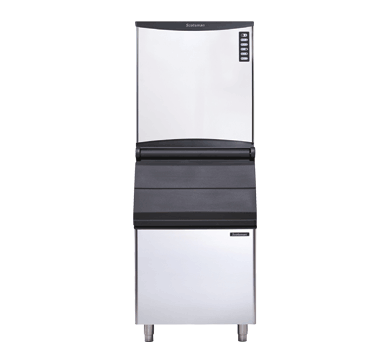

Scotsman NWH 1408 AS OX 650kg XSafe Modular Dice Ice Maker

The Scotsman NWH 1408 AS OX is a high-capacity modular dice ice maker producing up to 650 kg of crystal-clear ice cubes every 24 hours, making it an ideal solution for hotels, bars, restaurants, and any high-volume commercial venue with demanding ice requirements. Constructed from T304 grade stainless steel and designed as a head-only unit, it pairs with compatible Scotsman storage bins to create a flexible, scalable ice production and storage system.

At the heart of this machine is Scotsman's XSafe Natural Sanitation System, which uses high-power ultraviolet (UV) light to generate a highly reactive oxygen mixture that continuously circulates through the unit, eliminating bacteria, mould, yeast, and viruses to ensure every cube is hygienic and odour-free. Agion antimicrobial technology provides an additional layer of protection, actively resisting microbial growth on key surfaces to deliver consistently pure, clear, and transparent dice ice cube by cube.

Key Benefits

• Produces up to 650 kg of dice ice per 24 hours to keep pace with the highest-volume service demands across hospitality and food service operations.
• XSafe Natural Sanitation System operates automatically around the clock, using UV-generated reactive oxygen to eliminate pathogens without the need for chemical additives.
• Agion Technology integrated into contact surfaces resists ongoing microbial growth and prevents odours, maintaining ice purity between sanitation cycles.
• Vertical evaporator spray-system technology produces classic 10 mm x 22 mm x 28 mm, 6 g dice cubes with a large surface area for rapid chilling in beverages and bulk cooling applications.
• One-touch cleaning mode simplifies the maintenance routine, reducing the labour and time required to keep the machine operating at peak performance.
• Front evaporator access and auto-alert indicator lights make servicing straightforward, allowing technicians and operators to diagnose and address issues quickly.
• Air-cooled operation with a removable filter supports installation in commercial kitchens and bar areas while keeping routine filter maintenance simple.
• Modular head-only design offers configuration flexibility, allowing pairing with multiple compatible Scotsman storage bin models to match available space and storage needs.
• Regular descaling and six-monthly water filter cartridge replacement maintain consistent ice shape and thickness, extend machine life, reduce bacterial risk, and support food safety compliance.

Key Features

• 650 kg per 24-hour daily ice production capacity
• Dice ice cube dimensions: 10 mm (W) x 22 mm (D) x 28 mm (H), approximately 6 g per cube
• XSafe Natural Sanitation System using high-power UV light to produce a reactive oxygen mixture that continuously eliminates bacteria, mould, yeast, and viruses
• Agion antimicrobial technology on surfaces to resist microbial growth and prevent odours
• Vertical evaporator spray-system technology for consistent, crystal-clear cube formation
• T304 grade stainless steel exterior for durability, hygiene, and a professional finish
• Air-cooled operation
• One-touch cleaning button for simplified, time-saving maintenance
• Front evaporator access panel for straightforward servicing
• Auto-alert indicator lights displaying operational status and maintenance requirements
• Removable air filter included
• Water hose and drain hose included
• Head-only (modular) design requiring a separate storage bin
• Compatible storage bin models: NB 530, NB 948 (with CBT 48 EAMCD cover when using NB 948), and UBH 1100
• Unit dimensions: 760 mm (W) x 620 mm (D) x 1000 mm (H)
• Packed weight: 145 kg
• Power supply: 230 V, 50 Hz

Specifications

• Width (mm): 10
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
