Overview

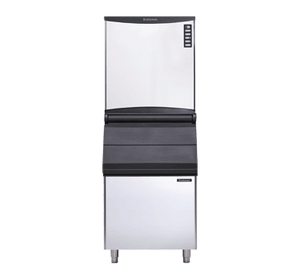

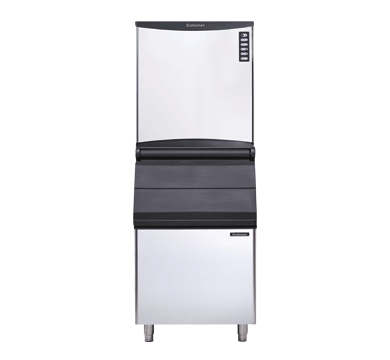

Scotsman NWL 1408 AS OX 600kg XSafe Modular Dice Ice Maker

The Scotsman NWL 1408 AS OX is a high-output modular dice ice maker delivering up to 600 kg of crystal-clear cube ice every 24 hours, purpose-built for large hospitality venues, hotels, bars, and catering operations. As a head-only unit, it pairs with compatible Scotsman storage bins — NB 530, NB 948 (with CBT 48 EAMCD cover), or UBH 1100 — giving operators the flexibility to match storage capacity to their specific needs.

At the core of this machine is Scotsman's XSafe Natural Sanitation System, which uses high-power ultraviolet (UV) light to generate a reactive oxygen mixture that continuously eliminates bacteria, mould, yeast, and viruses throughout the machine, producing odour-free and hygienically pure ice around the clock. Combined with Agion antimicrobial technology built into the evaporator, vertical spray-system ice-making technology, and a T304 stainless steel exterior, the NWL 1408 AS OX is engineered for demanding commercial environments that require consistent performance and rigorous food safety standards.

Key Benefits

• Produces up to 600 kg of dice ice per 24 hours, keeping up with the demands of high-volume beverage and food service operations
• XSafe UV-based sanitation system operates automatically 24/7 to eliminate bacteria, mould, yeast, and viruses, ensuring every ice cube is safe and odour-free
• Agion antimicrobial technology embedded in the evaporator further inhibits microbial growth and odour development for long-term ice purity
• Top air discharge design allows installation in narrow or confined spaces without compromising performance
• Front evaporator access simplifies routine servicing and reduces technician time and labour costs
• One-touch cleaning mode streamlines operator maintenance, saving time during busy service periods
• Auto-alert indicator lights provide at-a-glance visibility of operational status and upcoming maintenance requirements
• Modular design offers flexible pairing with multiple Scotsman storage bin models to suit varying venue storage capacities
• Removable air filter, water hose, and drain hose are included, supporting straightforward installation and upkeep

Key Features

• Head-only ice maker unit — storage bin sold separately
• 600 kg daily ice production capacity
• Produces 15 g dice ice cubes measuring W 29 mm x D 22 mm x H 28 mm
• Air-cooled operation with top air discharge, suitable for narrow-space installation
• XSafe Natural Sanitation System: high-power UV light generates a reactive oxygen mixture to continuously eliminate bacteria, mould, yeast, and viruses
• Agion Technology integrated into the evaporator to resist microbial growth and odour development, producing pure, clear, and transparent ice cubes
• Vertical evaporator spray-system ice-making technology for consistent cube quality
• T304 grade stainless steel exterior for durability, hygiene, and professional appearance
• R404a refrigerant gas
• Front evaporator access for straightforward servicing
• One-touch button for easy cleaning cycle activation
• Auto-alert indicator lights to display operational status and signal maintenance requirements
• Compatible storage bins: NB 530, NB 948 (requires CBT 48 EAMCD cover), UBH 1100
• Includes removable air filter, water hose, and drain hose
• Unit dimensions: W 760 mm x D 620 mm x H 1000 mm
• Packed weight: 145 kg
• Regular six-monthly water filter cartridge replacement and evaporator de-scaling recommended to maintain ice quality, machine longevity, and food safety compliance

Specifications

• Width (mm): 28
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
