Overview

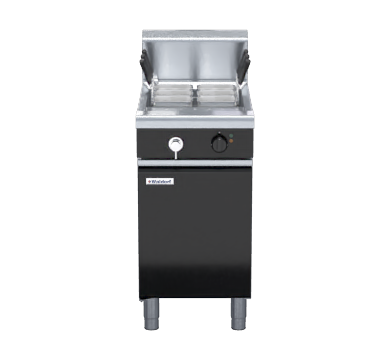

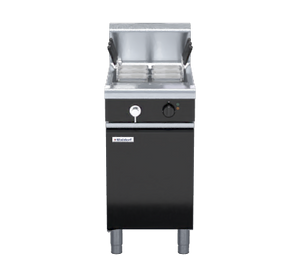

Waldorf PCB8140E7 Bold 450mm Single Pan Electric Pasta Cooker

The Waldorf Bold PCB8140E7 is a high-performance 450mm single-pan electric pasta cooker designed for demanding commercial kitchens, pasta bars and high-volume service environments. Built in New Zealand to Waldorf's exacting standards, it features a 40-litre 316 grade stainless steel open pan heated by a heavy-duty 3-coil Incoloy 825 element rated at 7.0kW on a single-phase supply, delivering fast heat-up and rapid recovery to keep service moving without interruption.

The unit is supplied as standard with six stainless steel pasta baskets with moulded handle grips, an incorporated basket drain stand, and an integrated water fill and starch-skimming faucet for streamlined operation. Construction combines 1.5mm 316 stainless steel for the pan with 304 stainless steel throughout the body, splashback, side panels and legs, ensuring long-term durability and easy cleaning. Adjustable feet and rear rollers allow flexible placement and levelling within a modular bold line configuration.

Key Benefits

• Rapid heat recovery from the 7.0kW Incoloy 825 element minimises downtime between pasta batches during peak service.
• The 40-litre 316 stainless steel open pan resists corrosion and starch build-up, making end-of-day cleaning quick and thorough.
• Six included stainless steel baskets with moulded grips allow simultaneous cooking of multiple pasta portions for efficient ticket management.
• The integrated water fill and starch-skimming faucet lets staff refresh water and skim starch without interrupting service or using separate tools.
• A fail-safe over-temperature safety cut-out and element tilt switch protect the unit from dry-fire damage, reducing the risk of costly element replacement.
• Three power settings (boil, simmer, standby) combined with a 30°C to 110°C mechanical thermostat give cooks precise control over cooking and holding temperatures.
• The incorporated basket drain stand keeps wet baskets contained and organised at the unit, improving workflow and reducing spills on the floor.
• Fully modular bold line design integrates with other Waldorf 450mm bold series equipment, enabling efficient suite configurations in tight kitchen footprints.
• Adjustable feet and rear rollers make positioning and levelling straightforward, even on uneven floors.

Key Features

• 450mm wide single-pan electric pasta cooker in the Waldorf Bold modular series
• 40-litre water capacity open pan fabricated from 1.5mm 316 grade stainless steel for superior corrosion resistance
• Heavy-duty 3-coil Incoloy 825 heating element rated at 7.0kW
• Single-phase power supply: 220-240V, 1P+N+E, 50/60Hz, 29.2A
• Three power settings: boil, simmer and standby
• Mechanical thermostat with a range of 30°C to 110°C
• Fail-safe over-temperature safety cut-out thermostat protects against empty-pan or water boil-out conditions
• Element tilt switch provides an additional heating cut-out for safety
• Indicator lights for power and heating status
• Large heat-resistant reinforced control knob for easy operation in a busy environment
• Integrated fine-adjustment water faucet for pan filling, water refreshing and starch skimming
• 25mm (1") skimming overflow and pan drain valve
• 304 stainless steel wire basket support grid inside the pan
• Six stainless steel pasta baskets with moulded handle grips supplied as standard (no lid on pasta cooker)
• Incorporated basket drain stand keeps baskets organised and draining at the unit
• Bull nose welded from 1.5mm 304 stainless steel
• Splashback in 1.5mm 304 stainless steel
• Side panels in 1.2mm 304 stainless steel
• Double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel tubing with adjustable feet
• Additional rear rollers for ease of movement and repositioning
• Default colour is black; other colour options available
• Fully modular design compatible with the Waldorf Bold 450mm series
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 220-240V|1P+N+E|50/60Hz|7.0kW|L1 29.2A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
