Overview

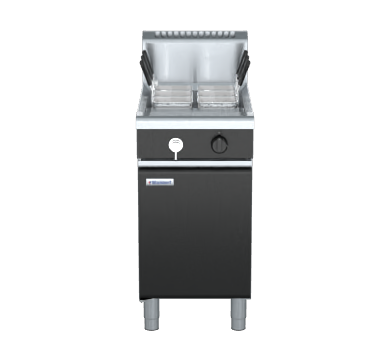

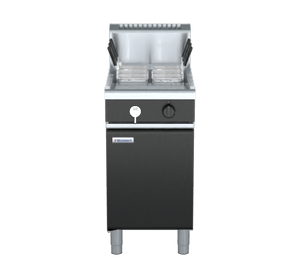

Waldorf PCB8140G Bold 450mm Gas Pasta Cooker

The Waldorf PCB8140G is a 450mm wide, high-performance single pan gas pasta cooker from the Waldorf Bold range, purpose-built for the demands of busy commercial kitchens, pasta bars and high-volume food service operations. The unit features a 40-litre 316 grade stainless steel open pan heated by a 47MJ/hr infrared burner, delivering rapid heat recovery and consistent boiling performance throughout service.

Designed with operator convenience in mind, the PCB8140G includes an integrated water fill and starch skimming faucet, a fine adjustment faucet for precise pan filling, a safety cut-out thermostat to protect against empty-pan or boil-out conditions, and an incorporated basket drain stand. The unit comes supplied with four stainless steel pasta baskets and is finished in black as standard, with additional colour options available to suit kitchen fit-out requirements.

Key Benefits

• Infrared burner technology delivers fast heat-up and strong heat recovery, keeping pasta cooking on schedule during peak service periods.
• The 40-litre open pan provides generous capacity for simultaneous cooking of multiple pasta portions, reducing wait times at the pass.
• Four included stainless steel pasta baskets allow efficient portion management and the ability to cook different pasta types or quantities concurrently.
• The incorporated basket drain stand streamlines the workflow between cooking and plating, minimising handling steps and improving service speed.
• An integrated water fill and starch skimming faucet simplifies pan maintenance during service without interrupting cooking operations.
• A fine adjustment water faucet enables accurate pan filling, helping to maintain consistent water levels and boiling performance throughout the shift.
• The safety cut-out thermostat provides automatic protection against empty-pan or water boil-out situations, reducing the risk of equipment damage and improving kitchen safety.
• 316 grade stainless steel construction on the open pan offers superior corrosion resistance in the wet, starchy cooking environment, making the unit easier to clean and maintain.
• Adjustable feet and rear rollers allow precise levelling on uneven floors and easy repositioning during cleaning or kitchen reconfiguration.

Key Features

• 450mm wide single pan gas pasta cooker from the Waldorf Bold series
• 40-litre water capacity open pan constructed from easy-clean 316 grade stainless steel
• 47MJ/hr infrared burner for high-performance, efficient heating
• Unique pan design optimised for pasta cooking applications
• Integrated water fill and starch skimming water faucet built into the unit
• Fine adjustment water faucet for precise pan filling control
• Safety cut-out thermostat protects against empty pan and water boil-out conditions
• Incorporated basket drain stand for convenient pasta draining and plating
• Supplied with four stainless steel pasta baskets
• Adjustable feet and additional rear rollers for levelling and mobility
• Compatible with both natural gas and LPG (R 3/4 BSP male gas connection)
• Splashback included; no undershelf
• Default finish is black; additional colour options available to order
• Waldorf Bold configuration with full back (low back version available as PCLB8140G)
• Manufactured in New Zealand from 304 stainless steel construction (external cabinetry)

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Variable High-Low
