Overview

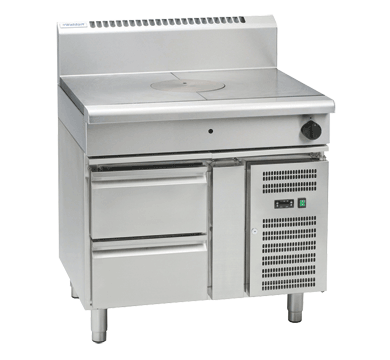

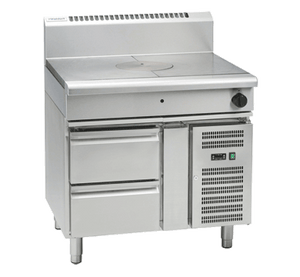

Waldorf RN8100G-RB 800 Series 900mm Gas Target Top with Refrigerated Base

The Waldorf RN8100G-RB combines a 900mm gas target top with an integrated refrigerated base in one cohesive unit, delivering both high-output cooking and reliable cold storage within a single 800 Series footprint. Constructed from 304 stainless steel and manufactured in New Zealand, it is purpose-built for the demands of busy commercial kitchens requiring flexible, high-performance cooking stations.

The target top features a 45MJ/hr dual ring cast iron burner with flame failure protection and a continuous pilot burner for consistent, safe operation throughout service. The refrigerated base maintains temperatures between 0°C and 4°C, keeping ingredients fresh and within food safety requirements directly beneath the cooking surface for efficient workflow.

Key Benefits

• Integrated cooking and refrigeration in one unit saves valuable floor space in tight commercial kitchen layouts.
• Dual ring cast iron burner at 45MJ/hr delivers intense, even heat suited to wok cooking, stock reduction, and high-volume tasks.
• Flame failure protection automatically cuts gas supply if the flame extinguishes, reducing safety risk during busy service periods.
• Continuous pilot burner allows quick re-ignition without interrupting kitchen workflow.
• Refrigerated base holding 0°C to 4°C keeps prep ingredients close at hand, reducing transit time between cold storage and the cooking surface.
• Adjustable feet and two additional rollers allow precise levelling and easier repositioning during cleaning or kitchen reconfiguration.
• Heavy-duty reinforced control knobs withstand the rigours of daily commercial use and repeated handling.
• Stainless steel construction throughout supports straightforward cleaning and meets commercial hygiene standards.
• Compatible with both natural gas and LPG, providing flexibility across different venue gas supply configurations.

Key Features

• 900mm wide gas target top mounted on an integrated refrigerated base unit
• 45MJ/hr dual ring cast iron burner with variable high-low temperature control
• Flame failure protection device for safe automatic gas cut-off
• Continuous pilot burner for reliable re-ignition
• Heavy-duty reinforced control knobs for durability under constant use
• Refrigerated base with temperature range of 0°C to 4°C
• 1.03m³ refrigerated storage volume
• 304 stainless steel construction throughout
• Splashback included; no undershelf
• Adjustable feet plus 2 additional rollers for levelling and manoeuvrability
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• Electrical supply: 220-240Vac, 50Hz, 1.8A, 1P+N+E 3-pin 10A plug cordset fitted
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Variable High-Low
