Overview

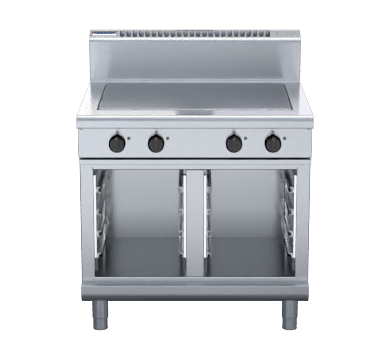

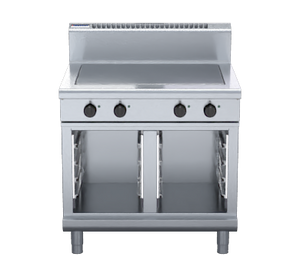

Waldorf RN8104E-CB 800 Series 900mm Electric Solid Top Range with Cabinet Base

The Waldorf RN8104E-CB is a 900mm electric solid top range from the heavy-duty 800 Series, designed to deliver consistent, controlled heat across a large cooking surface in demanding commercial kitchen environments. The unit features a 16mm thick 16Mo3 chrome moly steel plate that retains and distributes heat evenly, making it well suited to high-volume cooking where surface temperature stability is critical.

Four independent heating zones, each rated at 2.7kW for a combined output of 10.8kW, allow operators to run multiple cooking tasks simultaneously at different temperatures. The cabinet base provides practical underbench storage, and the fully modular construction simplifies routine cleaning and servicing. An optional GN 1/1 four-position racking kit and a low-back model variant (RNL) extend the unit's versatility to suit a range of kitchen configurations.

Key Benefits

• Four independent 2.7kW heating zones give chefs precise temperature control over separate areas of the cooking surface simultaneously, reducing bottlenecks during service.
• The 750mm x 570mm solid cooking area provides generous workspace for pots, pans, and trays of varying sizes, supporting high-output cooking across a full menu.
• Six-position switches with individual power indicator lights on each zone allow staff to quickly identify and adjust heat settings at a glance, improving efficiency and safety.
• The 16mm thick 16Mo3 chrome moly steel plate offers excellent thermal mass and durability, withstanding the rigours of continuous commercial use without warping.
• Heat-resistant reinforced control knobs are built to endure the elevated ambient temperatures typical of busy commercial kitchens, reducing wear and maintenance needs.
• Fully modular design means components can be accessed, cleaned, and serviced without specialist tools, minimising downtime.
• The cabinet base offers enclosed storage directly beneath the cooking surface, keeping utensils and equipment within easy reach during service.
• Four 63mm diameter heavy-duty stainless steel legs with adjustable feet ensure stable, level installation on uneven kitchen floors.
• An optional GN 1/1 four-position racking kit and low-back model availability make it straightforward to adapt the unit to different kitchen layouts and workflow requirements.

Key Features

• 900mm wide electric solid top with enclosed cabinet base
• 10.8kW total heating output across four independent zones
• Each heating zone independently rated at 2.7kW
• 750mm x 570mm solid cooking surface area
• 16mm thick 16Mo3 chrome moly steel solid plate
• Four six-position switches for per-zone temperature control
• Individual power indicator light for each heating zone
• Large, heat-resistant reinforced control knobs
• Four 63mm diameter heavy-duty stainless steel legs with adjustable feet
• Fully modular construction for straightforward cleaning and servicing
• Optional GN 1/1 four-position racking kit available
• Low-back model variant (RNL) available
• Part of the Waldorf 800 Series commercial cooking range

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
