Overview

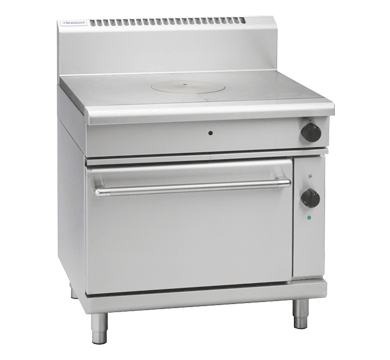

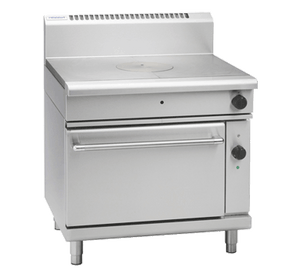

Waldorf RN8110GEC 800 Series 900mm Gas Target Top Electric Convection Oven Range

The Waldorf RN8110GEC unites a high-output 900mm gas target top with a 2/1 GN electric convection oven in a single 800 Series unit, purpose-built for the demands of busy commercial kitchens. The target top centres on a 45MJ/hr dual-ring cast iron burner whose housing is internally fitted with 50mm refractory ceramic blocks for superior thermal efficiency, while the 280mm diameter centre ring reaches a maximum plate temperature of 500°C across a 900mm x 625mm cooking surface, giving chefs exceptional heat recovery and precise control.

Built throughout from 304 stainless steel and manufactured in New Zealand, the RN8110GEC is designed for straightforward cleaning, installation and servicing. The unit supports multiple installation configurations, operating as an independent hob or combining with a cabinet base, leg stand, refrigeration base or oven base to suit the workflow of any commercial kitchen. Safety and durability are integral across every component, from flame failure protection and a continuous pilot burner on the gas top through to a vitreous enamel-lined convection oven cavity and robust reinforced control knobs.

Key Benefits

• Fan-forced convection heat ensures consistent, even temperatures throughout the 2/1 GN oven cavity for reliable batch baking and roasting across multiple trays simultaneously.
• The 45MJ/hr dual-ring cast iron target top burner delivers rapid heat recovery and precise temperature management, reducing wait times during high-volume service.
• The 50mm refractory ceramic block lining fitted inside the burner housing maximises thermal efficiency, helping reduce gas consumption while maintaining consistent cooking performance.
• Flame failure protection with a continuous pilot burner provides an important safety layer, automatically cutting the gas supply if the flame is extinguished.
• Flexible power supply options in either single phase (1P+N+E, 27.7A) or three phase (3P+N+E, 10A) make the unit straightforward to integrate into a variety of commercial kitchen electrical setups.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned with ease during kitchen reconfiguration or cleaning.
• Vitreous enamel oven lining resists staining and wipes down quickly, minimising downtime for cleaning between service periods.
• The drop-down oven door features a welded frame construction and a cool-touch stainless steel handle for safe, efficient access to the oven cavity during busy service.
• A choice of base configurations, including refrigeration or convection oven bases, allows operators to tailor the unit to their specific workflow and space requirements.

Key Features

• 900mm wide 800 Series gas target top electric convection oven range
• 45MJ/hr dual-ring cast iron target top burner with 280mm diameter centre ring
• Maximum plate temperature at centre: 500°C
• Cooking surface area: 900mm x 625mm (5,625cm²)
• Burner housing internally fitted with 50mm refractory ceramic blocks for superior thermal efficiency
• Flame failure protection and continuous pilot burner on gas top
• 2/1 GN electric convection oven base
• 6.6kW electric convection oven; available in single phase (1P+N+E, 27.7A) or three phase (3P+N+E, 10A) configurations
• Drop-down oven door with welded frame construction
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• Adjustable feet plus 2 additional rollers for levelling and mobility
• Splashback included; no undershelf
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• Flexible installation: unit can operate independently as a hob or be mounted on a cabinet base, leg stand, refrigeration base or oven base (static or convection, gas or electric)
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Shipping Weight: 340
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
