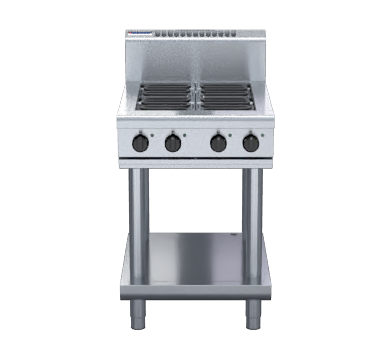

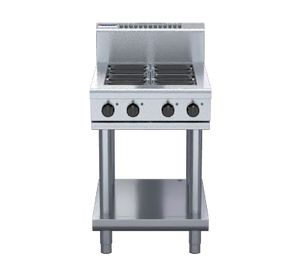

Waldorf RN8400E-LS 800 Series 600mm Electric Cooktop with Leg Stand

The Waldorf RN8400E-LS is a heavy-duty 600mm electric cooktop from the acclaimed 800 Series, mounted on a purpose-built leg stand for a complete, freestanding cooking solution. Fitted with four 2.4kW open radiant elements, each governed by energy regulator controls with six temperature settings including a simmer position, it delivers precise, repeatable heat output suited to high-volume commercial kitchens. Constructed from 304 stainless steel throughout, the unit is backed by a two-year parts and labour warranty and is manufactured in New Zealand.

Designed with the practicalities of professional kitchen operation firmly in mind, the RN8400E-LS features removable vitreous enamel element modules and hob spill trays for fast cleaning, hinge-up element sections, and full front access for servicing without moving the unit. The fully modular leg stand assembles without tools and includes adjustable feet plus two additional rollers for easy repositioning. Optional hot plate elements and compatibility with 300mm, 600mm, or 900mm griddle plates allow the cooktop to be configured for a broad range of cooking applications.

Key Benefits

• Four independent 2.4kW radiant elements with six temperature settings, including a dedicated simmer position, give chefs granular control over multiple dishes simultaneously.
• Energy regulator controls on each element, combined with indicator lights for power and heating status, make it easy to monitor cooking conditions at a glance during busy service.
• Removable vitreous enamel element modules and hob spill trays, plus hinge-up element sections, reduce cleaning time significantly between services.
• All components are accessible from the front of the unit, minimising downtime during routine maintenance or servicing without requiring the unit to be moved.
• The no-tools quick-assembly leg stand with adjustable feet and two additional rollers simplifies installation and allows repositioning on the kitchen floor as operational needs change.
• Fully modular construction allows the cooktop to be integrated into a matched suite of Waldorf 800 Series equipment for a consistent, professional kitchen fitout.
• Optional hot plate elements and compatibility with 300mm, 600mm, and 900mm griddle plates extend the unit's versatility well beyond standard cooktop use.
• Heavy-duty 304 stainless steel construction throughout, including a welded 1.5mm bull nose hob and 63mm diameter legs, ensures durability under the sustained demands of commercial kitchen environments.

Key Features

• Four 2.4kW open radiant elements set in heavy-duty welded element frames
• Six temperature settings per element including a simmer setting, controlled via energy regulators
• Large heat-resistant reinforced control knobs with easy-view settings marked directly on the knob
• Individual power and heating indicator lights for each element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamel element modules and hob spill trays, fully removable for cleaning
• Hinge-up element sections for access to underside and spill trays
• Full front access to all internal components for servicing
• Aluminised steel internal construction
• Optional hot plate elements with machine-finished 8mm steel plate
• Compatible with 12mm thick mild steel griddle plates in 300mm, 600mm, or 900mm configurations
• 2.5mm 304 stainless steel griddle splash guards
• Leg stand fully modular for matched suite connection, with framed top for cooktop attachment
• 63mm diameter heavy-duty legs in 1.2mm 304 stainless steel with adjustable feet
• Modular framed undershelf with 0.9mm 304 stainless steel finish
• Two additional rollers for repositioning on the kitchen floor
• Quick no-tools assembly design for leg stand
• Electrical supply: 9.6kW, 400-415Vac, 50/60Hz, 2P+N+E, 20A per phase
• Stainless steel finish throughout all external surfaces
• Manufactured in New Zealand
• Two-year parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 110
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
