Overview

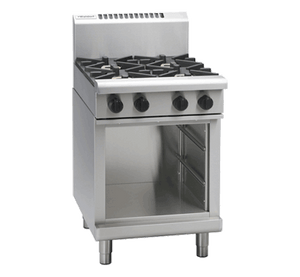

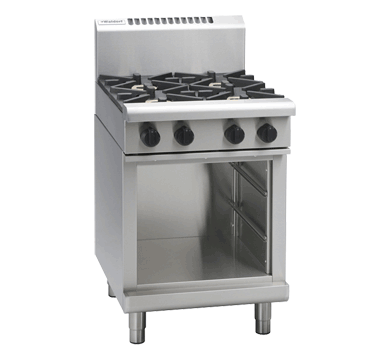

Waldorf RN8400G-CB 800 Series 600mm Gas Cooktop with Cabinet Base

The Waldorf RN8400G-CB is a 600mm wide, four-burner gas cooktop mounted on a cabinet base, forming part of the respected Waldorf 800 Series. Each of the four open burners delivers 28 MJ/hr for a combined output of 112 MJ/hr, providing the responsive, high-output heat that busy commercial kitchens demand. Constructed from 304 stainless steel and manufactured in New Zealand, this unit is built to withstand the rigours of continuous professional use.

Vitreous enamel pot stands fitted with extended finger supports allow cookware to slide smoothly between burners without lifting, speeding up service and reducing strain. Flame failure protection on every burner enhances kitchen safety, while removable cast iron burner heads, heavy-duty reinforced control knobs, and adjustable feet with two additional rollers all contribute to a unit that is straightforward to operate, reposition, clean, and service. The cooktop is compatible with optional hot top simmer plates as well as 300mm, 600mm, or 900mm griddle plates, adding further versatility to the cooking surface.

Key Benefits

• Four 28 MJ/hr open burners deliver 112 MJ/hr of total output, providing rapid heat response for high-volume cooking tasks.
• Flame failure protection on all burners automatically cuts gas if a flame extinguishes, reducing the risk of gas accumulation in the kitchen.
• Vitreous enamel pot stands with extended finger supports let cooks slide pots and pans from burner to burner without lifting, improving workflow speed.
• Removable cast iron burners simplify cleaning and allow individual components to be replaced without taking the whole unit out of service.
• Heavy-duty reinforced control knobs withstand repeated daily adjustment and resist wear in demanding commercial environments.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or reconfiguration.
• Cabinet base provides enclosed storage directly beneath the cooktop, making efficient use of floor space in the kitchen.
• Compatible with optional hot top simmer plates and 300mm, 600mm, or 900mm griddle plates, allowing the cooking surface to be tailored to menu requirements.
• 304 stainless steel construction and New Zealand manufacture reflect a commitment to durability and quality suited to the Australian and New Zealand commercial market.

Key Features

• Four-burner gas cooktop configuration on an enclosed cabinet base
• 4 x 28 MJ/hr advanced open burners; 112 MJ/hr total gas rating
• Flame failure protection fitted to every burner
• Removable heavy-duty cast iron burner heads for easy cleaning and replacement
• Vitreous enamel pot stands with extended finger supports to assist movement of cookware between burners
• Heavy-duty reinforced control knobs for precise variable high-to-low temperature control
• Adjustable feet plus two additional rollers for levelling and repositioning
• Enclosed cabinet base with cabinet door
• Stainless steel splashback included
• Compatible with optional hot top simmer plates and 300mm, 600mm, or 900mm griddle plates
• Accepts both natural gas and LPG supply via R 3/4 (BSP) male connection
• 304 stainless steel construction throughout
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 31.1 kW
• Temperature Control: Variable High-Low
