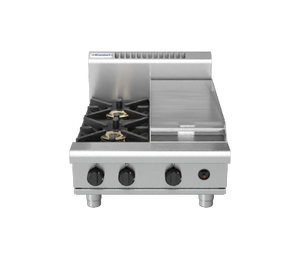

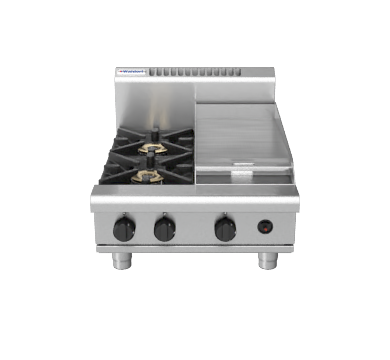

Waldorf RN8403G-B 800 Series 600mm Gas Cooktop with Griddle – Bench Model

The Waldorf RN8403G-B is a 600mm bench model gas cooktop from the Waldorf 800 Series, combining two 28MJ/hr open burners with a 300mm griddle plate positioned as standard on the right-hand side. Constructed from heavy-duty 304 stainless steel and built in New Zealand, it is engineered to handle the rigours of continuous commercial kitchen service across restaurants, hotels and catering operations.

Flame failure protection on all burners provides an essential safety layer, while removable cast iron burners and vitreous enamel pot stands with extended finger supports allow pots and pans to slide smoothly between cooking zones. Adjustable feet and two additional rollers make positioning and routine cleaning straightforward, and the reinforced control knobs are built to withstand heavy daily use.

Key Benefits

• Two high-output 28MJ/hr open burners deliver responsive, powerful heat for rapid cooking across a range of menu items.
• Integrated 300mm griddle plate on the right-hand side expands cooking versatility without requiring additional equipment.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, reducing safety risk in busy kitchens.
• Vitreous enamel pot stands with extended finger supports allow seamless pan movement between burners, speeding up service.
• Removable cast iron burners and pot stands simplify cleaning and routine maintenance, reducing downtime.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition for cleaning or servicing.
• Heavy-duty reinforced control knobs withstand the physical demands of high-volume kitchen environments.
• Compatible with both natural gas and LPG connections, providing flexibility for different site requirements.

Key Features

• 2 x 28MJ/hr open burners providing a combined cooktop output of 56MJ/hr
• 300mm griddle plate positioned as standard on the right-hand side with a dedicated 20MJ/hr griddle burner
• Flame failure protection fitted to all burners as a standard safety feature
• Removable heavy-duty cast iron burners for straightforward cleaning and servicing
• Vitreous enamel pot stands with extended finger supports for smooth pan-to-pan transfer
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs designed for repeated heavy use
• Adjustable feet and two additional rollers for levelling and easy repositioning
• Variable high-low temperature control on all cooking zones
• Compatible with natural gas and LPG supply
• Splashback included as standard
• Bench model configuration (no undershelf)
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: LPG|Natural Gas
• Burner Output (MJ/h): 56
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: 12mm Mild Steel
• Power Rating: 15.6 kW
• Temperature Control: Variable High-Low
