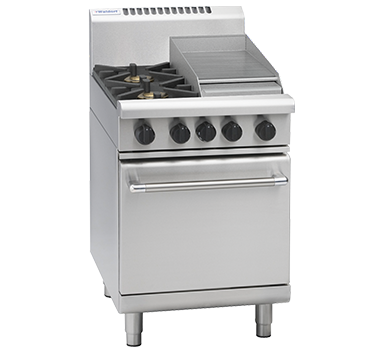

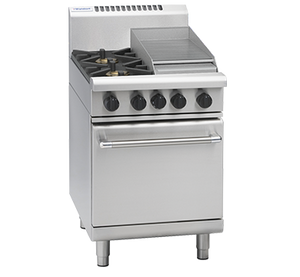

Waldorf RN8413G 800 Series 600mm Gas Range Static Oven with 2 Burner Cooktop and Griddle

The Waldorf RN8413G is part of the renowned 800 Series modular commercial range, combining a 2-burner open cooktop and a 300mm smooth griddle plate above a 1/1 GN gas static oven in a compact 600mm footprint. Each open burner delivers a patented 28MJ/hr output, while a dedicated 20MJ/hr griddle burner powers the right-hand side griddle, providing versatile cooking capability suited to high-volume professional kitchens. Compatible with both natural gas and LPG, the unit connects via a 3/4 BSP male fitting and offers a thermostatic oven temperature range of 150 to 300°C.

Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, the RN8413G is engineered for durability and ease of daily operation. Flame failure protection is fitted to all burners for operator safety, while removable cast iron burners, vitreous enamel pot stands and a welded vitreous enamel oven lining simplify cleaning and maintenance. Adjustable feet and two additional rollers allow straightforward positioning and levelling, making this range a practical and robust choice for any busy commercial kitchen.

Key Benefits

• Versatile cooktop configuration combining two high-output open burners and a 300mm griddle allows multiple cooking methods simultaneously, improving kitchen throughput.
• Patented 28MJ/hr open burners deliver powerful, responsive heat for rapid temperature recovery during busy service periods.
• Thermostatic oven control across a 150 to 300°C range provides consistent, reliable results for baking and roasting applications.
• Flame failure protection on every burner automatically cuts gas flow if a flame extinguishes, enhancing safety for kitchen staff.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe clean, reducing downtime between services.
• Removable cast iron burners and vitreous enamel pot stands make routine cleaning and component replacement quick and hassle-free.
• Adjustable feet combined with two integrated rollers make positioning and levelling the unit on uneven kitchen floors simple and efficient.
• Heavy-duty reinforced control knobs and a drop down door with welded frame are built to withstand the rigours of continuous commercial use.
• Cool touch stainless steel door handle allows safe oven access during operation without the need for additional hand protection.

Key Features

• 2-burner open cooktop combined with a 300mm smooth griddle plate, griddle positioned on the right-hand side as standard
• 1/1 GN capacity gas static oven with 2 included shelves
• 2 x 28MJ/hr patented open burners
• 1 x 20MJ/hr dedicated griddle burner
• Total burner output of 56MJ/hr (15.6kW)
• Oven temperature range: 150 to 300°C with thermostatic control and analogue display
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durability and easy maintenance
• Oven lining is welded and finished with vitreous enamel for hygienic, easy-clean surfaces
• Drop down oven door with welded frame for robust, long-term operation
• Cool touch stainless steel door handle for safe access during service
• Heavy-duty reinforced control knobs
• Heavy-duty 304 stainless steel construction throughout
• Integrated splashback included
• Adjustable feet plus 2 additional rollers for easy installation and repositioning
• Compatible with natural gas and LPG
• Gas connection: R 3/4 BSP male
• Manufactured in New Zealand
• Modular 800 Series design for flexible kitchen line configurations
• Note: product images may show model RN8410G

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 210
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
• Display Type: Analog
