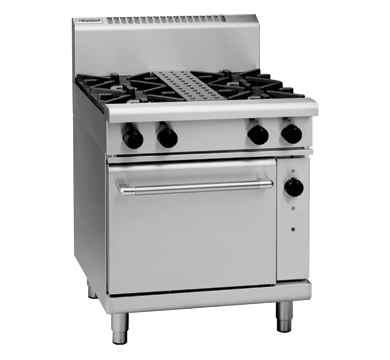

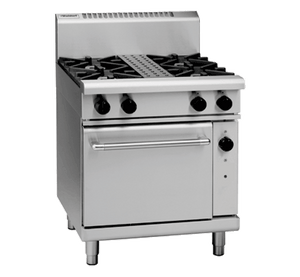

Waldorf RN8510GC 800 Series 750mm Gas Range Convection Oven

The Waldorf RN8510GC is a 750mm wide gas range and convection oven from the renowned 800 Series, designed to deliver elevated cooking performance in demanding commercial kitchen environments. Four patented 28MJ/hr open burners power the cooktop, while below, a 1/1 GN gas convection oven equipped with a cast iron sole plate, heavy-duty motor and circulation fan enables reduced cooking times and lower operating temperatures for consistent, high-volume results.

Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this unit combines robust durability with practical everyday usability. Flame failure protection on every burner, vitreous enamel-lined oven cavity, removable cast iron burners and a cool-touch door handle all contribute to a unit that is straightforward to clean, service and operate in even the busiest commercial kitchen.

Key Benefits

• Four high-output 28MJ/hr open burners deliver precise, powerful heat across the cooktop for fast response cooking.
• Fan-forced convection circulation ensures even heat distribution throughout the oven cavity, producing consistent results across multiple trays.
• Heavy-duty convection motor and circulation fan enable shorter cooking times and allow lower operating temperatures, reducing energy consumption.
• Flame failure protection on all burners automatically cuts gas supply if a flame goes out, improving kitchen safety.
• Cast iron sole plate in the oven promotes uniform heat distribution across the base for even roasting and baking.
• Vitreous enamel oven lining and enamel pot stands resist staining and are simple to wipe clean, minimising downtime between services.
• Adjustable feet and two additional rollers allow straightforward repositioning and precise levelling during installation or kitchen reconfiguration.
• Removable cast iron burners and reinforced control knobs simplify routine maintenance and contribute to long service life.

Key Features

• 4 burner cooktop range with four patented 28MJ/hr open burners (total cooktop output 112MJ/hr)
• 1/1 GN capacity gas convection oven with heavy-duty motor and circulation fan
• Cast iron sole plate in oven for consistent base heat distribution
• Oven temperature range: 150-300°C with thermostatic analogue control
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands and oven cavity lining for durability and easy cleaning
• Welded oven lining and drop-down door with welded frame for structural rigidity
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Adjustable feet plus 2 additional rollers for easy installation and repositioning
• Stainless steel splashback included
• Heavy-duty 304 stainless steel construction throughout
• Oven fan powered by 0.13kW single-phase electric motor (3-pin 10A plug cordset)
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• 2 oven shelves included
• Manufactured in New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 239
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
