Overview

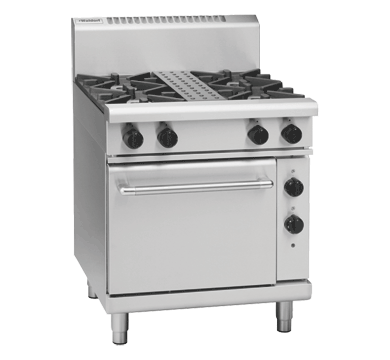

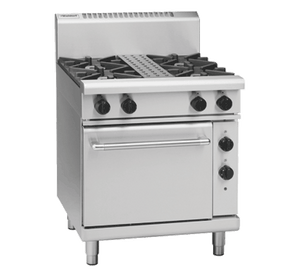

Waldorf RN8510GE 800 Series 750mm Gas Range Electric Static Oven

The Waldorf RN8510GE is part of the renowned 800 Series, combining a 4-burner gas cooktop with a 1/1 GN electric static oven in a robust 750mm-wide unit purpose-built for demanding commercial kitchen environments. Four patented 28MJ/hr open burners deliver high-output cooktop performance, while the electric static oven provides consistent, thermostatically controlled heat from 150°C to 300°C, making this range equally capable for high-volume cooking services and precise baking and roasting tasks.

Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, the RN8510GE is engineered for longevity and ease of daily use. Thoughtful design details including removable cast iron burners, vitreous enamel pot stands and oven lining, flame failure protection on all burners, and a cool-touch door handle all contribute to a unit that is safe, straightforward to clean, and simple to service and maintain in a busy professional kitchen.

Key Benefits

• Four 28MJ/hr open burners deliver powerful, responsive gas cooking across the full cooktop, supporting fast-paced service demands.
• The 1/1 GN electric static oven with cast iron sole plate provides even, consistent heat distribution for reliable baking, roasting and general oven cookery.
• Thermostatic temperature control across the 150–300°C oven range gives chefs precise, repeatable results across a wide variety of menu items.
• Flame failure protection on every burner automatically cuts gas if a flame goes out, protecting kitchen staff and complying with commercial safety requirements.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and reduce downtime between services.
• Vitreous enamel oven lining resists grease and food residue, making interior cleaning faster and more thorough.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned for cleaning or servicing with minimal effort.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand the rigours of continuous commercial use.
• Accepts both natural gas and LPG connections, providing installation flexibility across a wide range of commercial kitchen setups.

Key Features

• 4-burner gas cooktop range in a 750mm-wide footprint
• 1/1 GN electric static oven with thermostatically controlled temperature range of 150–300°C
• Four patented 28MJ/hr open cooktop burners, totalling 112MJ/hr gas output
• Cast iron sole plate in the oven for uniform heat distribution
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners for easy access and cleaning
• Vitreous enamel pot stands, removable for cleaning
• Oven lining is welded construction finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame for structural rigidity
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for levelling and repositioning
• Splashback included
• Constructed from heavy-duty 304 stainless steel
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• Electrical supply: 5.5kW; available in single-phase (1P+N+E, 23A) or three-phase (3P+N+E, 8A) configurations
• Analog temperature display with thermostatic control
• Two oven shelves included
• Manufactured in New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 240
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
