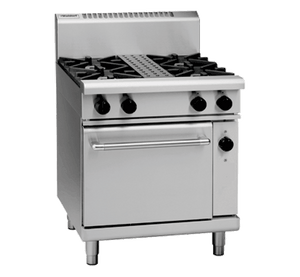

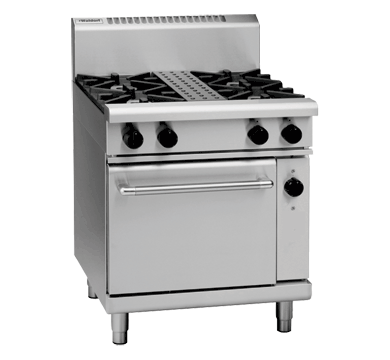

Waldorf RN8510GEC 800 Series 750mm Gas Range Electric Convection Oven

The Waldorf RN8510GEC is a heavy-duty commercial range from the 800 Series, combining a 4-burner gas cooktop with a 1/1 GN electric convection oven in a 750mm-wide stainless steel unit. Each open burner delivers 28MJ/hr for high-output cooking performance, while the electric convection oven uses a heavy-duty motor and circulation fan to circulate heat evenly, reducing cooking times and allowing lower operating temperatures for better results.

Manufactured in New Zealand from 304 stainless steel, the RN8510GEC is engineered for the rigours of busy commercial kitchens, cafes, and catering operations. Every detail reflects durability and ease of use, from the removable cast iron burners and vitreous enamel pot stands to the welded, vitreous enamel-lined oven cavity, cool-touch door handle, and adjustable feet with rollers for straightforward repositioning and servicing.

Key Benefits

• Fan-forced convection circulation ensures consistent, even heat distribution across the full 1/1 GN oven cavity, improving baking and roasting uniformity.
• Heavy-duty motor and circulation fan reduce cooking times and enable lower oven temperatures, saving energy and improving food quality.
• Flame failure protection on all four burners automatically cuts gas supply if a flame is extinguished, protecting staff and meeting commercial safety requirements.
• Cast iron sole plates in the oven provide stable, even base heat, minimising hot spots and supporting consistent results across multiple trays.
• Removable cast iron burners and vitreous enamel pot stands make daily cleaning faster and more thorough, reducing kitchen downtime.
• Vitreous enamel-lined, welded oven cavity resists staining and is straightforward to wipe down after service.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned without heavy lifting.
• Heavy-duty reinforced control knobs and a drop-down door with welded frame withstand the physical demands of high-volume kitchen use.
• 2-year parts and labour warranty provides peace of mind and lowers total cost of ownership for commercial operators.

Key Features

• 4 x 28MJ/hr open cooktop burners with a combined total gas output of 112MJ/hr
• 1/1 GN electric convection oven with thermostatic temperature control ranging from 150°C to 300°C
• Heavy-duty motor and circulation fan for forced-air convection cooking
• Cast iron sole plates in the oven for even base heat distribution
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners and vitreous enamel pot stands
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Stainless steel splashback included
• Adjustable feet and 2 additional rollers for levelling and manoeuvrability
• Constructed from 304 stainless steel throughout
• Compatible with both natural gas and LPG; gas connection R 3/4 (BSP) male
• Electrical supply: 5.6kW, available in single phase (1P+N+E, 23.3A) or three phase (3P+N+E, 8A) configurations
• Analog display type with thermostatic oven control
• 2 oven shelves included
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 251
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
