Overview

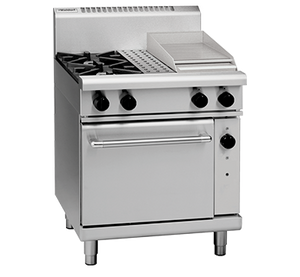

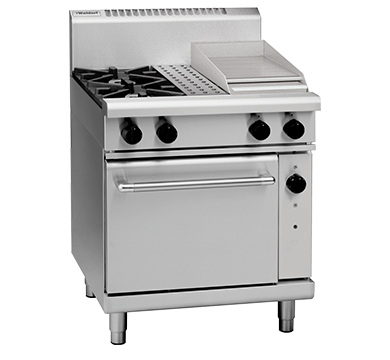

Waldorf RN8513G 800 Series 750mm Gas Range Static Oven with 2 Burner Cooktop and 300mm Griddle

The Waldorf RN8513G is part of the renowned 800 Series of modular commercial cooking equipment, combining a two-burner gas cooktop and a 300mm smooth griddle with a full-size 1/1 GN gas static oven in a compact 750mm footprint. Each open burner delivers a patented 28MJ/hr of cooking power, while the dedicated 20MJ/hr griddle burner ensures consistent searing and frying performance across the entire griddle surface. The oven cavity is lined with welded vitreous enamel for even heat retention and operates across a thermostatic range of 150 to 300°C, making it well suited to baking, roasting and holding across a busy service period.

Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, the RN8513G is engineered for the demands of high-volume commercial kitchens. Flame failure protection is fitted to all burners as a standard safety measure, and the unit accepts both natural gas and LPG connections via a 3/4 inch BSP male fitting. The griddle is positioned on the right-hand side as standard, and adjustable feet along with two rollers make positioning and repositioning straightforward. Its vitreous enamel oven lining, removable cast iron burners and reinforced control knobs are all designed with ease of cleaning, installation and servicing in mind.

Key Benefits

• Patented 28MJ/hr open burners deliver high-output heat for rapid boiling, sauteing and sauce work during peak service.
• Dedicated 20MJ/hr griddle burner maintains consistent surface temperature across the full 300mm griddle for even cooking of proteins and vegetables.
• 1/1 GN gas static oven with vitreous enamel lining provides even, reliable heat distribution for baking and roasting without the need for a fan.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, reducing the risk of gas accumulation in the kitchen.
• Accepts both natural gas and LPG, giving operators flexibility when specifying or relocating equipment.
• Adjustable feet and two integrated rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime between services.
• Cool-touch stainless steel door handle and drop-down oven door with welded frame allow safe, one-handed oven access during busy service.
• Modular 800 Series design allows the unit to be integrated with other Waldorf modules to create a customised cooking suite.

Key Features

• Two-burner cooktop combined with a 300mm smooth griddle on a single 750mm wide unit.
• 1/1 GN capacity gas static oven with thermostatic temperature control ranging from 150 to 300°C.
• Two open burners each rated at 28MJ/hr for high-output cooktop performance.
• One dedicated griddle burner rated at 20MJ/hr positioned on the right-hand side as standard.
• Total cooktop burner output of 56MJ/hr; overall unit gas rating of 106MJ.
• Flame failure protection fitted to all burners as standard.
• Removable heavy-duty cast iron burners for easy cleaning and replacement.
• Vitreous enamel pot stands for simple removal and thorough cleaning.
• Oven cavity welded and fully lined with vitreous enamel for even heat distribution and straightforward cleaning.
• Drop-down oven door with welded frame for robust, long-term durability.
• Cool-touch stainless steel oven door handle for safe handling during service.
• Heavy-duty reinforced control knobs built to withstand the rigours of commercial use.
• Thermostatic oven temperature control with analogue display.
• Adjustable feet with two additional rollers for easy levelling and repositioning.
• Splashback included as standard.
• Two oven shelves supplied.
• Constructed from 304 stainless steel throughout.
• Compatible with natural gas and LPG; gas connection via R 3/4 BSP male fitting.
• Manufactured in New Zealand.
• Part of the Waldorf 800 Series modular range, compatible with other series modules for suite configuration.
• Image shown in product listing depicts model RN8510G; actual unit is RN8513G.

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 240
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
• Display Type: Analog
