Overview

Waldorf RN8513GE 800 Series 750mm Gas Range Electric Static Oven

The Waldorf RN8513GE is part of the renowned 800 Series, combining a 750mm gas cooktop range with a 1/1 GN electric static oven to deliver serious cooking power in a compact commercial footprint. The cooktop features two patented 28MJ/hr open burners alongside a 300mm griddle section powered by a 20MJ/hr burner, giving kitchen teams the flexibility to sear, simmer and griddle simultaneously while the electric static oven handles baking and roasting below.

Built to withstand the demands of high-volume commercial kitchens, the RN8513GE is finished in heavy-duty stainless steel throughout, with vitreous enamel pot stands, a welded and vitreous enamel-lined oven cavity, and heavy-duty reinforced control knobs. Flame failure protection is fitted to all burners as standard, and the unit ships with adjustable feet and two additional rollers to simplify installation, repositioning and routine service.

Key Benefits

• Two high-output 28MJ/hr open burners deliver rapid heat-up and precise temperature control for a wide range of stovetop cooking tasks.
• The integrated 300mm griddle with a dedicated 20MJ/hr burner adds versatile flat-top cooking without requiring a separate appliance, saving bench space.
• A 1/1 GN electric static oven beneath the cooktop provides even, consistent heat for baking and roasting, making the most of a single unit's footprint.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, protecting both staff and the kitchen environment.
• Vitreous enamel pot stands and a welded, enamel-lined oven cavity resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Adjustable feet and two fitted rollers make levelling on uneven floors easy and allow the unit to be moved during cleaning or reconfiguration without extra equipment.
• Removable cast iron burners simplify deep cleaning and component replacement, keeping maintenance quick and downtime to a minimum.
• The cool-touch stainless steel door handle and drop-down oven door with welded frame allow safe, easy oven access during busy service periods.

Key Features

• 750mm wide 800 Series configuration combining a gas cooktop range and electric static oven in one unit
• Two-burner cooktop with a 300mm griddle section; griddle positioned on the right-hand side as standard
• 2 x 28MJ/hr open burners on the cooktop
• 1 x 20MJ/hr dedicated griddle burner
• Total gas rating: 76MJ
• 1/1 GN capacity electric static oven
• Electrical requirements: 5.5kW, 1P+N+E, 23A (standard) or 5.5kW, 3P+N+E, 8A
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands
• Oven cavity welded construction with vitreous enamel lining for durability and easy cleaning
• Drop-down oven door with welded frame for structural integrity and convenient access
• Cool-touch stainless steel oven door handle
• Heavy-duty stainless steel exterior finish throughout
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for levelling and manoeuvrability
• Designed for easy cleaning, installation and servicing

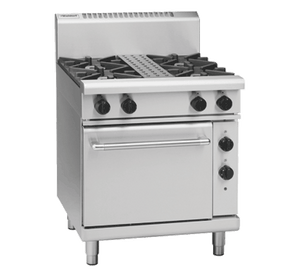

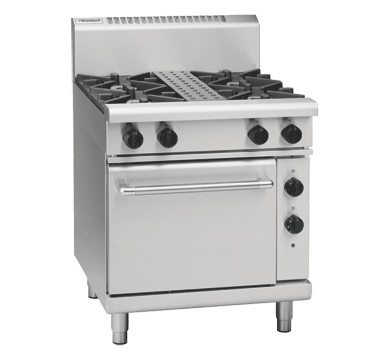

• Note: product images may depict model RN8510GE

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Shipping Weight: 240
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
