Overview

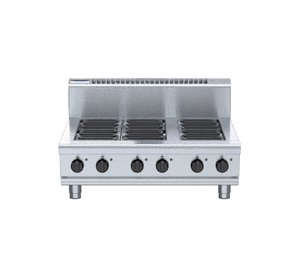

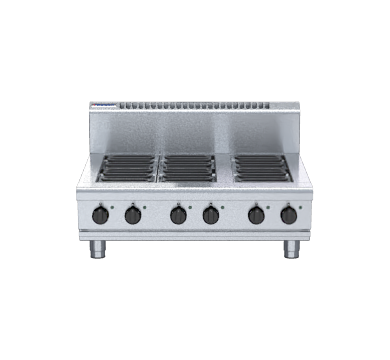

Waldorf RN8600E-B 800 Series 900mm Electric Cooktop – Bench Model

The Waldorf RN8600E-B is a 900mm wide bench-mounted electric cooktop from the 800 Series, purpose-built for the demands of commercial kitchens. It features six 2.4kW radiant elements totalling 14.4kW of cooking power, each governed by energy regulator controls with six temperature settings including a simmer position, giving chefs precise and repeatable heat management across the full cooking surface.

Constructed from 304 stainless steel throughout, the cooktop incorporates a welded hob with a bull nose edge, vitreous enamelled element modules and hob spill trays, and aluminised steel internal components for durability and straightforward maintenance. The bench model ships with four heavy-duty stainless steel legs fitted with adjustable feet and two additional rollers, making positioning and levelling on the kitchen floor quick and practical. Optional hot plate elements and griddle plates in 300mm, 600mm, or 900mm configurations allow the unit to be tailored to a wider range of cooking applications.

Key Benefits

• Six independent radiant elements with energy regulator controls let different sections of the cooktop operate at entirely different temperatures simultaneously, supporting diverse menu output during peak service.
• Six temperature settings per element, including a dedicated simmer setting, provide the fine heat control needed for delicate sauces and long-hold cooking alongside high-heat searing.
• Vitreous enamelled element modules and hob spill trays are fully removable, making spill clean-up fast and reducing downtime between services.
• Hinge-up element sections and front-of-unit access to all components simplify routine servicing and repairs without requiring the unit to be moved.
• Indicator lights for power and heating status on each element control give kitchen staff at-a-glance confirmation of which zones are active, improving safety and energy awareness.
• Adjustable bench legs (80mm to 105mm height range) plus two rollers allow the unit to be levelled precisely on uneven floors and repositioned with minimal effort.
• Optional 300mm, 600mm, or 900mm griddle plates and hot plate elements mean the cooktop can adapt to changing menu requirements without replacing the entire unit.
• Heavy-duty reinforced control knobs with easy-view settings are designed to withstand the rigours of constant commercial use and remain legible under busy kitchen conditions.
• A 24-month warranty backs the unit, providing confidence in long-term reliability for commercial operators.

Key Features

• Six 2.4kW open radiant elements mounted in heavy-duty welded element frames, delivering a total output of 14.4kW
• Energy regulator controls per element with six temperature settings, including a simmer setting
• Indicator lights for both power and heating status on each individual element control
• Welded hob constructed from 1.5mm 304 stainless steel with a bull nose front edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element modules and hob spill trays that are fully removable for cleaning
• Aluminised steel internal construction for structural integrity and heat resistance
• Large, heat-resistant, reinforced control knobs with easy-view settings
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet, height range 80mm to 105mm
• Two additional rollers supplied for easier repositioning on the floor
• Hinge-up element sections allowing full access to all internal components from the front of the unit
• Optional hot plate elements featuring machine-finished 8mm steel plate as an alternative cooking surface
• Compatible with 300mm, 600mm, or 900mm griddle plates (12mm thick mild steel) with 2.5mm 304 stainless steel griddle splash guards
• Hot plate elements and griddle sections also fitted with energy regulator controls; 300mm griddle sections feature a 50–320°C thermostat
• Electrical supply: 14.4kW, 400–415Vac, 50/60Hz, 3P+N+E, 20A per phase
• Stainless steel external finish throughout for easy cleaning and a professional appearance
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 135
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 14.4 kW, 400-415Vac, 50/60hz, 3P+N+E, 20A/phase
• Temperature Control: Variable High-Low
