Overview

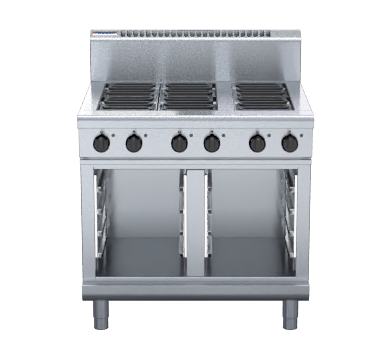

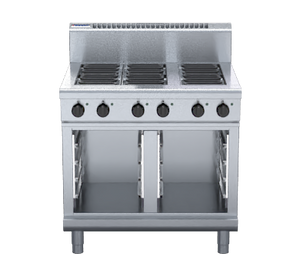

Waldorf RN8600E-CB 800 Series 900mm Electric Cooktop with Cabinet Base

The Waldorf RN8600E-CB is a 900mm wide electric cooktop unit from the 800 Series, built on a fully enclosed cabinet base and engineered for the demands of high-volume commercial kitchens. Six 2.4kW radiant elements deliver a combined 14.4kW of cooking power, each governed by energy regulator controls with six temperature settings including a simmer setting, giving chefs precise control across the full range of cooking tasks.

Constructed from 304 stainless steel throughout, the unit features a welded hob with a 1.5mm bull nose, 1.2mm splashback and side panels, vitreous enamelled element modules and hob spill trays, and a double-skin 0.9mm stainless steel cabinet interior and exterior. Designed for ease of use and maintenance, all components are accessible from the front, element sections hinge up for cleaning, and the modular cabinet base is suited to building a matched suite. Optional hot plate elements and griddle plates provide additional cooking flexibility.

Key Benefits

• Six independently controlled 2.4kW radiant elements allow multiple dishes to be cooked simultaneously at different temperatures, maximising throughput during service.
• Energy regulator controls with a dedicated simmer setting give chefs accurate, repeatable heat management from gentle simmering through to high-output cooking.
• Vitreous enamelled element modules and hob spill trays are fully removable, making post-service cleaning faster and more thorough.
• Hinge-up element sections and front-access servicing reduce downtime during maintenance, keeping the unit operational longer.
• Heavy-duty reinforced control knobs with easy-view settings withstand the rigours of continuous commercial use and allow at-a-glance monitoring.
• Adjustable feet and two additional rollers make installation, levelling, and repositioning straightforward on a variety of floor surfaces.
• Fully modular cabinet base construction allows the unit to be integrated into a matched suite alongside other 800 Series equipment for a cohesive kitchen layout.
• Optional hot plate elements and griddle plates expand the unit's versatility to suit a broader range of cooking styles without requiring a separate appliance.
• New Zealand-built with 304 stainless steel construction and a 24-month warranty, offering reliable long-term performance and corrosion resistance in demanding kitchen environments.

Key Features

• Six 2.4kW open radiant elements mounted in heavy-duty welded element frames, totalling 14.4kW combined output
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element modules and hob spill trays, removable for cleaning
• Energy regulator controls per element with six temperature settings including simmer
• Individual power and heating indicator lights for each element control
• Large heat-resistant reinforced control knobs with easy-view settings
• Hinge-up element sections for unobstructed access to hob interior
• All components accessible from the front of the unit for servicing
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for easier repositioning
• Fully modular cabinet base for matched suite configuration
• Optional GN 1/1 four-position racking kit available for cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate surface
• Optional 12mm thick mild steel griddle plates in 300mm, 600mm, or 900mm sizes
• 2.5mm 304 stainless steel griddle splash guards when griddle option is fitted
• 50-320°C thermostat control per 300mm griddle section
• Aluminised steel internal construction
• Electrical supply: 14.4kW, 400-415Vac, 50/60Hz, 3P+N+E, 20A per phase
• Manufactured in New Zealand from 304 stainless steel
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 14.4 kW, 400-415Vac, 50/60hz, 3P+N+E, 20A/phase
• Temperature Control: Variable High-Low
