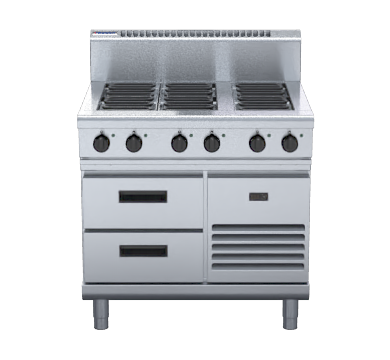

Waldorf RN8600E-RB 800 Series 900mm Electric Cooktop with Refrigerated Base

The Waldorf RN8600E-RB brings together a six-element 900mm electric radiant cooktop and a fully integrated self-contained refrigerated base into a single 800 Series modular unit, creating a complete cook-and-chill solution within one compact footprint. Built in New Zealand from heavy-duty 304 stainless steel, the unit is engineered to withstand the sustained demands of busy commercial kitchens while keeping mise en place chilled and within arm's reach beneath the cooking surface.

The cooktop delivers six 2.4 kW radiant elements with a combined output of 14.4 kW, each governed by individual energy regulator controls and indicator lights. Below the cooking surface, the refrigerated base runs on a ventilated R134a system with a digital electronic thermostat, automatic defrost, and two GN 1/1 drawers supported on robust European telescopic guides, allowing kitchen teams to cook and store ingredients in the same location and improve service efficiency.

Key Benefits

• Six independently controlled radiant elements provide precise, consistent heat across the full 900mm cooktop width, supporting multiple simultaneous cooking tasks.
• The integrated refrigerated base holds ingredients at -2°C to +8°C directly below the cooking line, cutting travel time and improving mise en place management during service.
• Tropical Climate rated refrigeration maintains safe holding temperatures even in hot, humid commercial kitchen environments.
• Automatic defrost and automatic evaporation of defrost water remove the need for manual defrost routines or a condensate drain connection, reducing maintenance workload.
• All refrigeration components and the condensing unit are front-accessible, making servicing and routine maintenance faster and less disruptive to kitchen operations.
• Vitreous enamelled element modules and hob spill trays are fully removable, and element sections hinge upward for thorough cleaning without requiring any tools.
• Robust European telescopic drawer guides paired with tool-free replaceable magnetic gaskets ensure smooth, reliable drawer operation and straightforward seal replacement.
• Optional hot plate elements featuring a machine-ground 8mm steel cooking surface allow the cooktop configuration to be extended to suit different cooking requirements.
• Suite-matched modular 800 Series design integrates seamlessly with other Waldorf 800 Series sections for flexible kitchen line configurations.

Key Features

• Six 2.4 kW radiant elements mounted in robust welded frames, delivering a total cooktop output of 14.4 kW
• Individual energy regulator controls with six temperature settings including a simmer setting
• Power and heating indicator lights for each element control
• Large heat-resistant reinforced control knobs with easy-view setting markings
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays, removable for cleaning
• Hinge-up element sections for full access to the hob underside
• Optional hot plate elements with an 8mm steel plate surface finished by machine grinding (ordered separately)
• 12mm thick mild steel griddle plates with 2.5mm stainless steel splash guards protecting the griddle surround (where griddle option is fitted)
• 50°C to 320°C thermostat per 300mm griddle section (where griddle option is fitted)
• Aluminised steel internal cooktop construction
• Cooktop electrical supply: 14.4 kW, 400-415 Vac, 50/60 Hz, 3P+N+E, 20A per phase
• Self-contained suite-matched modular refrigerated base
• Ventilated refrigeration system using R134a refrigerant, Tropical Climate rated
• Operating temperature range: -2°C to +8°C
• Digital electronic thermostat with automatic defrost and automatic evaporation of defrost water
• No condensate drain connection required
• Two GN 1/1 drawers with 100mm pan depth capacity, supported on heavy-duty European telescopic guides
• Magnetic drawer gaskets that can be swapped out without tools
• 50mm fully foamed CFC-free insulation throughout the cabinet structure
• Interior and exterior cabinet surfaces finished in 304 stainless steel

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
