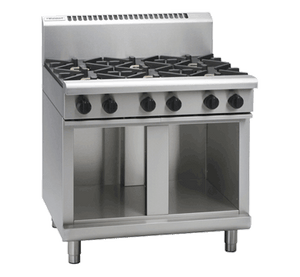

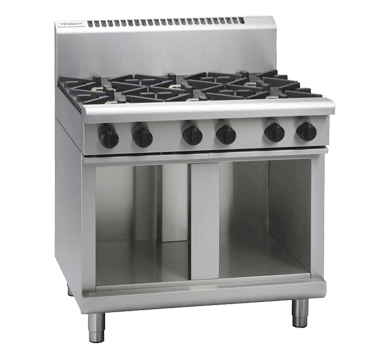

Waldorf RN8600G-CB 800 Series 900mm Gas Cooktop with Cabinet Base

The Waldorf RN8600G-CB is a heavy-duty 900mm gas cooktop from the respected 800 Series, built on a cabinet base and designed to handle the demands of high-volume commercial kitchens. Six open burners each deliver 28MJ/hr for a combined output of 168MJ/hr, giving chefs consistent, responsive heat control across every cooking zone. Constructed from 304 stainless steel and manufactured in New Zealand, this unit is built to endure continuous service in professional environments.

Vitreous enamel pot stands with extended finger supports allow pots and pans to slide effortlessly from burner to burner without lifting, improving workflow efficiency during busy service periods. The cooktop's modular design supports the addition of hot top simmer plates, as well as 300mm, 600mm or 900mm griddle plates, making it a flexible centrepiece in any commercial cooking suite. Adjustable feet and two additional rollers simplify both positioning during installation and routine repositioning for cleaning or service.

Key Benefits

• Six high-output 28MJ/hr open burners deliver powerful, responsive heat for rapid cooking across all zones simultaneously.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, enhancing kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly between burners, reducing handling time during busy service.
• Compatible with hot top simmer plates and 300mm, 600mm or 900mm griddle plates, enabling the cooking surface to be configured for a wide variety of menu requirements.
• Removable cast iron burners and heavy-duty reinforced control knobs are designed to withstand the rigours of continuous commercial use.
• Adjustable feet and two additional rollers make installation straightforward and allow the unit to be repositioned with minimal effort for cleaning or servicing.
• Cabinet base provides practical enclosed storage directly beneath the cooking surface, making efficient use of kitchen floor space.
• Accepts both natural gas and LPG supply via a 3/4 BSP male connection, offering installation flexibility across different kitchen setups.

Key Features

• Six open burners each rated at 28MJ/hr, providing a total combined gas output of 168MJ/hr (46.7kW)
• Flame failure protection fitted to all six burners as a standard safety feature
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands with extended finger supports to facilitate easy movement of cookware between burners
• Heavy-duty reinforced control knobs with variable high-low temperature control
• Compatible with hot top simmer plates (gas model) and 300mm, 600mm or 900mm griddle plates
• Cabinet base with hinged cabinet door for enclosed underbench storage
• Splashback included as standard
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish throughout
• Adjustable feet and two additional rollers for levelling and ease of repositioning
• Dual fuel compatibility: natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Manufactured in New Zealand
• Designed for easy cleaning, installation and servicing

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Variable High-Low
