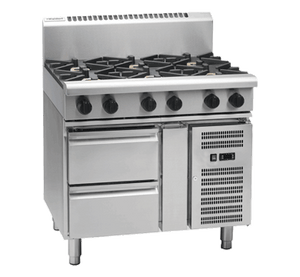

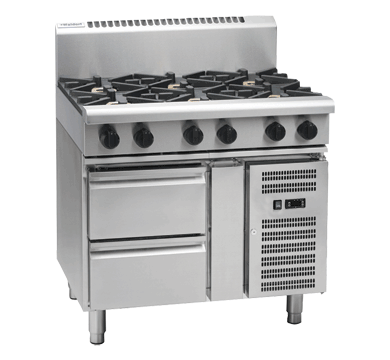

Waldorf RN8600G-RB 800 Series 900mm Gas Cooktop with Refrigerated Base

The Waldorf RN8600G-RB combines a six-burner gas cooktop with a purpose-built refrigerated base, delivering a compact, all-in-one cooking and cold storage solution for busy commercial kitchens. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this unit is built to withstand the rigours of continuous professional use while keeping ingredients safely chilled directly beneath the cooking surface.

The refrigerated base operates as a ventilated system using R134a refrigerant and maintains temperatures between 0°C and 4°C, making it ideal for storing prep ingredients within easy reach of the cook. With a total gas output of 168 MJ/h across six open burners, flame failure protection on every burner, and a straightforward electrical connection via a standard 10A plug, the RN8600G-RB is designed for practical, efficient kitchen workflow.

Key Benefits

• Integrated cold storage directly under the cooktop keeps prep ingredients at safe temperatures without requiring a separate refrigeration unit, saving floor space.
• Six 28 MJ/h open burners deliver consistent, high-output heat across multiple pots and pans simultaneously, supporting fast-paced service demands.
• Flame failure protection on all six burners automatically cuts gas supply if a flame is extinguished, reducing safety risks in a busy kitchen environment.
• Ventilated refrigeration system maintains a stable temperature range of 0°C to 4°C throughout service, helping preserve ingredient quality and food safety compliance.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and routine maintenance without the need for specialist tools.
• Adjustable feet combined with two additional rollers allow straightforward levelling on uneven floors and easy repositioning during cleaning or kitchen reconfiguration.
• Standard 10A single-phase plug connection means no specialist electrical installation is required for the refrigeration components, reducing setup costs.
• Heavy-duty reinforced control knobs and robust stainless steel construction are designed to endure the physical demands of continuous commercial kitchen operation.

Key Features

• Six 28 MJ/h open burners with a combined gas output of 168 MJ/h, compatible with both natural gas and LPG via R 3/4 (BSP) male connection.
• Flame failure safety device fitted to all six burners.
• Removable heavy-duty cast iron burners for easy cleaning and replacement.
• Vitreous enamel pot stands for durability and straightforward maintenance.
• Heavy-duty reinforced control knobs with variable high-low temperature control.
• Integrated refrigerated base with 2 x 1/1 GN drawers.
• Ventilated refrigeration system maintaining 0°C to 4°C temperature range.
• R134a refrigerant (160 grams charge); climate classification T (tropical).
• Electrical supply: 220-240V AC, 50 Hz, 1.8A, single phase, 1P+N+E 3-pin 10A plug cordset fitted.
• Splashback included; no undershelf.
• Adjustable feet and two additional rollers for levelling and mobility.
• Heavy-duty 304 stainless steel construction throughout.
• Manufactured in New Zealand.
• 12-month warranty (manufacturer specification).

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 415V 3 Phase
• Temperature Control: Variable High-Low
