Overview

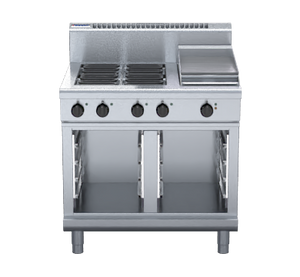

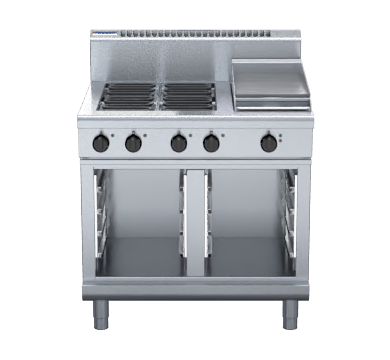

Waldorf RN8603E-CB 800 Series 900mm Electric Cooktop with 300mm Griddle – Cabinet Base

The Waldorf RN8603E-CB is a heavy-duty 900mm electric cooktop from the 800 Series, combining four 2.4kW radiant elements with a 300mm right-hand griddle section, all mounted on a fully modular cabinet base. Constructed with welded 304 stainless steel throughout, this unit is engineered to handle the relentless demands of a busy commercial kitchen while maintaining a clean, professional finish.

Designed with the operator in mind, the RN8603E-CB features hinge-up element and griddle sections, removable vitreous enamelled spill trays, and full front-access servicing so routine cleaning and maintenance cause minimal disruption. Adjustable feet and two additional rollers make positioning straightforward, and the fully modular cabinet base allows seamless suite matching with other Waldorf 800 Series equipment.

Key Benefits

• Four independent 2.4kW radiant elements with six temperature settings plus a simmer setting give precise, flexible heat control across multiple cooking tasks simultaneously.
• The 300mm griddle section with a dedicated 3.6kW element and 50–320°C thermostat delivers consistent, even surface heat ideal for proteins, vegetables and breakfast items.
• Hinge-up element and griddle sections combined with removable vitreous enamelled spill trays make cleaning fast and thorough, reducing turnaround time between service periods.
• All components are accessible from the front of the unit, simplifying routine servicing and minimising kitchen downtime.
• Heavy-duty reinforced control knobs with easy-view settings and individual power and heating indicator lights allow quick, confident adjustments during a busy service.
• Adjustable feet and two additional rollers allow easy repositioning and precise levelling on uneven kitchen floors.
• The fully modular cabinet base with double-skin 304 stainless steel interior and exterior suits suite configurations, and an optional GN 1/1 four-position racking kit adds flexible underbench storage.
• Optional hot plate elements with machine-finished 8mm steel plate provide an alternative cooking surface to suit varying menu requirements.
• 12mm thick mild steel griddle plates and 2.5mm 304 stainless steel griddle splash guards ensure durability and containment of grease and splatter during high-volume cooking.

Key Features

• Four 2.4kW open radiant elements housed in heavy-duty welded element frames
• One 3.6kW griddle element with 50–320°C thermostat per 300mm griddle section; griddle positioned on the right-hand side as standard
• Six temperature settings per radiant element plus a simmer setting
• Welded cooktop hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element modules and hob spill trays – removable for easy cleaning
• Hinge-up element and griddle sections for fast access
• 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel splash guards
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view settings
• Energy regulator controls for radiant elements; thermostat control for griddle section
• Individual power and heating indicator lights for each element
• Fully modular cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of repositioning
• Full front-of-unit access for all servicing and maintenance
• Optional GN 1/1 four-position racking kit for the cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate
• Heavy-duty stainless steel external finish throughout

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
