Overview

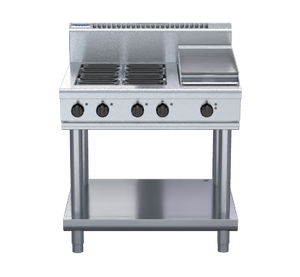

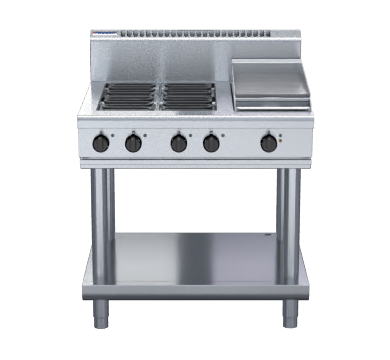

Waldorf RN8603E-LS 800 Series 900mm Electric Cooktop with 300mm Griddle on Leg Stand

The Waldorf RN8603E-LS is a 900mm modular electric cooktop from the 800 Series, combining four 2.4kW open radiant elements with a 300mm griddle section, all mounted on a heavy-duty stainless steel leg stand. Designed for high-volume commercial kitchens, it delivers consistent, controllable heat across both cooktop and griddle zones, making it well suited to busy service environments where reliability and versatility are essential.

Constructed with a welded 1.5mm 304 stainless steel bull nose hob, 1.2mm stainless steel splashback and side panels, and a fully modular leg stand with 63mm diameter heavy-duty legs, the unit is built to withstand the rigours of daily professional use. The griddle is positioned on the right-hand side as standard, and the design supports connection to matched Waldorf 800 Series suites for a cohesive kitchen layout.

Key Benefits

• Six temperature settings plus a simmer setting across radiant elements give chefs precise heat control for a wide range of cooking tasks.
• The 50–320°C thermostat on the 300mm griddle section allows accurate temperature management for searing, sautéing and holding.
• Vitreous enamelled element modules and hob spill trays are removable, making routine cleaning fast and thorough during service turnaround.
• Hinge-up element and griddle sections, combined with front-access servicing, reduce maintenance downtime and eliminate the need to move the unit.
• Adjustable feet and two additional rollers simplify installation, repositioning and levelling on uneven kitchen floors.
• The fully modular leg stand assembles without tools, reducing setup time and enabling straightforward reconfiguration within a suite.
• Indicator lights for power and heating on each element control provide at-a-glance status during busy service periods.
• Optional hot plate elements with machine-finished 8mm steel plate offer an additional cooking surface configuration to suit varied menu requirements.
• Fully modular construction allows the cooktop to connect seamlessly with other Waldorf 800 Series equipment for a matched, professional suite finish.

Key Features

• Four 2.4kW open radiant elements set in heavy-duty welded element frames
• One 3.6kW griddle element powering a 300mm griddle section, positioned on the right-hand side as standard
• 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel griddle splash guards
• 50–320°C thermostat control per 300mm griddle section
• Six temperature settings plus simmer setting on radiant element energy regulator controls
• Large heat-resistant reinforced control knobs with easy-view settings
• Individual power and heating indicator lights for each element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Hinge-up element and griddle sections for easy access
• All serviceable parts accessible from the front of the unit
• Optional hot plate elements with machine-finished 8mm steel plate
• Leg stand supplied as standard with the LS model, featuring 63mm diameter 1.2mm 304 stainless steel heavy-duty legs
• Adjustable feet and two additional rollers for levelling and repositioning
• Framed stand shelf with 0.9mm 304 stainless steel finish
• Quick-assembly leg stand design requiring no tools
• Fully modular construction for integration into a matched Waldorf 800 Series suite
• Heavy-duty stainless steel external finish throughout
• 20A electrical connection

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
