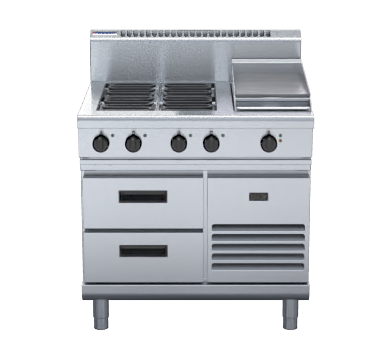

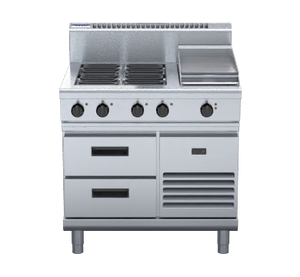

Waldorf RN8603E-RB 800 Series 900mm Electric Cooktop with Refrigerated Base

The Waldorf RN8603E-RB combines a fully featured 900mm electric cooktop with an integrated refrigerated base, delivering a compact all-in-one cooking and cold storage solution for high-volume commercial kitchens. Part of the trusted Waldorf 800 Series, this unit pairs four 2.4kW radiant elements with a 300mm griddle zone and a 1.03m³ refrigerated cabinet beneath, keeping ingredients close at hand and at safe holding temperatures throughout a busy service period.

Constructed with a heavy-duty stainless steel finish throughout, the RN8603E-RB is engineered for the demands of daily commercial use. Robust reinforced control knobs, adjustable feet, and two additional rollers make setup and repositioning straightforward, while the design philosophy of easy cleaning, installation, and servicing helps reduce kitchen downtime.

Key Benefits

• Integrated refrigerated base keeps mise en place and ingredients at safe temperatures directly beneath the cooking surface, reducing travel time during service.
• Four independent 2.4kW radiant elements provide flexible, zoned heat control across the 900mm cooktop, allowing multiple dishes to be cooked simultaneously at different temperatures.
• The 3.6kW griddle element delivers consistent, even searing and griddling capacity for proteins, vegetables, and breakfast items.
• Six temperature settings plus a dedicated simmer setting give chefs precise control from gentle saucing through to high-heat cooking.
• Heavy-duty reinforced control knobs withstand the rigours of a commercial kitchen environment, reducing wear and maintenance frequency.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned easily for cleaning or kitchen reconfiguration.
• Optional hot plate elements provide additional menu versatility without requiring a separate appliance.
• Stainless steel construction throughout supports hygiene compliance and simplifies routine cleaning.

Key Features

• 900mm wide electric cooktop mounted on an integrated refrigerated base cabinet
• Part of the Waldorf 800 Series commercial cooking range
• 4 x 2.4kW radiant heating elements across the cooktop surface
• 1 x 3.6kW element beneath a 300mm griddle plate, positioned on the right-hand side as standard
• Six temperature settings per element plus a dedicated simmer setting
• 1.03m³ refrigerated base storage volume
• Heavy-duty stainless steel finish on cooking and cabinet surfaces
• Heavy-duty reinforced control knobs for extended service life
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers included for ease of repositioning
• Designed for straightforward cleaning, installation, and servicing
• Optional hot plate elements available as an upgrade
• Packed weight: 195kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
